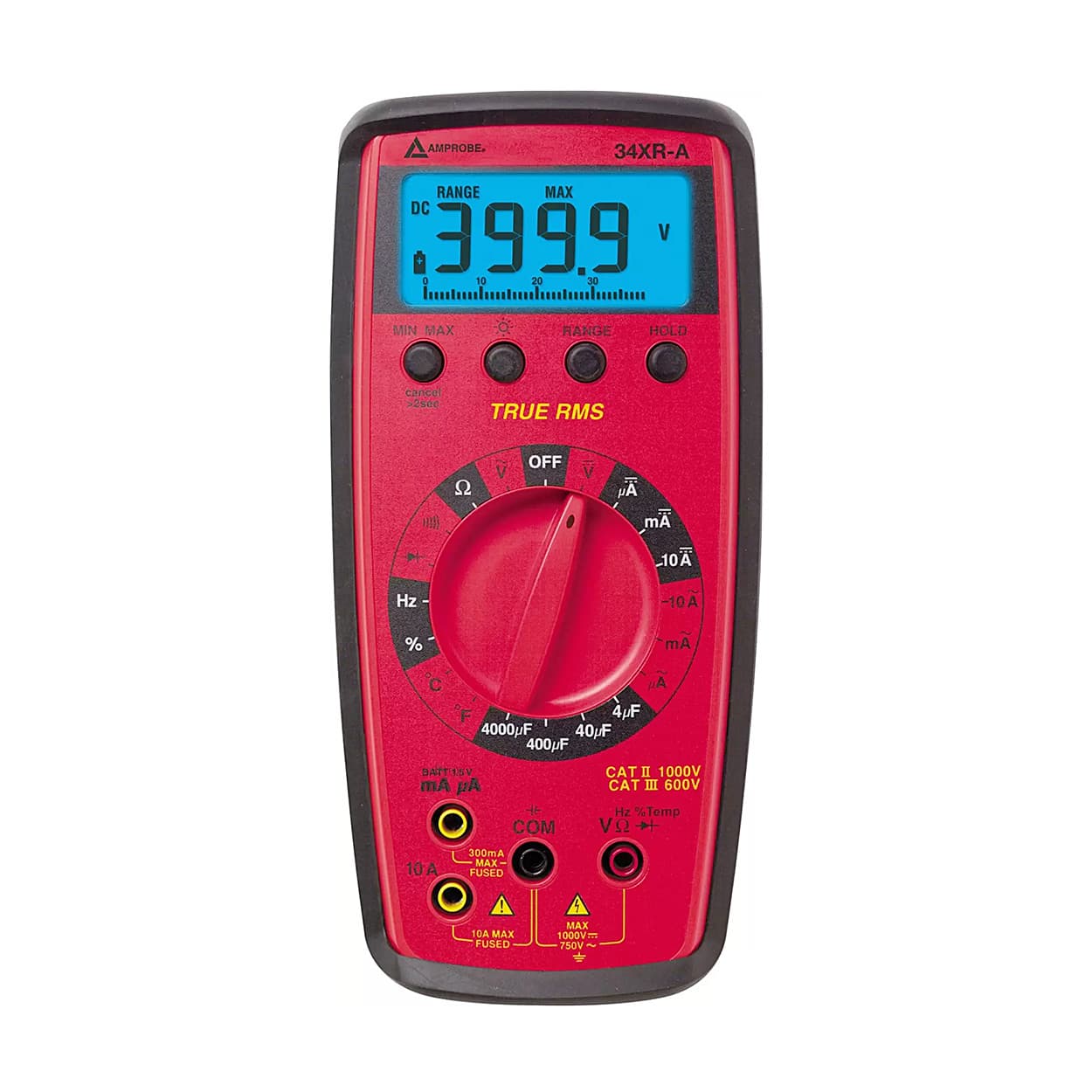

Amprobe 1000V TRMS Digital Multimeter With Temperature, 34XR-A

The Amprobe 34XR-A Digital Multimeter, a True-rms digital multimeter with temperature and backlight for contractors and field service technicians.

Features:

• Autoranging; display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
• Display update rate: 2/sec, nominal
• Operating temperature: 0 °C to 45 °C at < 70 % R.H
• True-rms digital multimeter with temperature and backlight
• Overrange indication
• Auto power off to save battery life
• Min/max, data hold and range lock
• Separate door for easy battery and fuse access
• Magne-Grip™ Holster with magnetic hanging strap

What’s Included In This Package:

• 34XR-A
• Test leads with threaded alligator clips
• 9 V battery (installed)
• Magne-Grip™ Holster with magnetic hanging strap
• Temperature adapter
• Type K thermocouple probe
• Spare fuse

Specifications:

DC Voltage ranges	400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage accuracy	All ranges: ± (0.5 % rdg + 1 dgt)
DC Voltage resolution	100 µV
AC Voltage (45 Hz to 2 kHz) True-rms ranges	400 mV, 4 V, 40 V, 400 V, 750 V
AC Voltage (45 Hz to 2 kHz) True-rms accuracy	400 mV range, 45 to 100 Hz: ± (1.2 % rdg + 8 dgts)   750 V range: 45 to 1 kHz: ± (2.0 % rdg + 8 dgts) All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 8 dgts) All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 8 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms resolution	100 µV
DC Current ranges	400 µA, 4 mA, 40 mA, 300 mA, 10 A
DC Current accuracy	400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt)   10 A range: ± (2.0 % rdg + 3 dgts)
DC Current resolution	0.1 µA
AC Current (45 Hz to 1 kHz) True-rms ranges	400 µA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 1 kHz) True-rms accuracy	400 µA to 300 mA ranges: ± (1.5 % rdg + 8 dgts)   10 A range: ± (2.5 % rdg + 10 dgts)
AC Current (45 Hz to 1 kHz) True-rms resolution	0.1 µA
Resistance ranges	400 mO 4 kmO 40 kmO 400 kmO 4 MmO 40 MmO
Resistance accuracy	400, 4 k, 40 k, 400 k, 4 MmO ranges: ± (1.0 % rdg + 4 dgts)   40 MmO range: ± (2.0 % rdg + 5 dgts)
Resistance resolution	100 mmO
Continuity audible indication	< 35 mO
