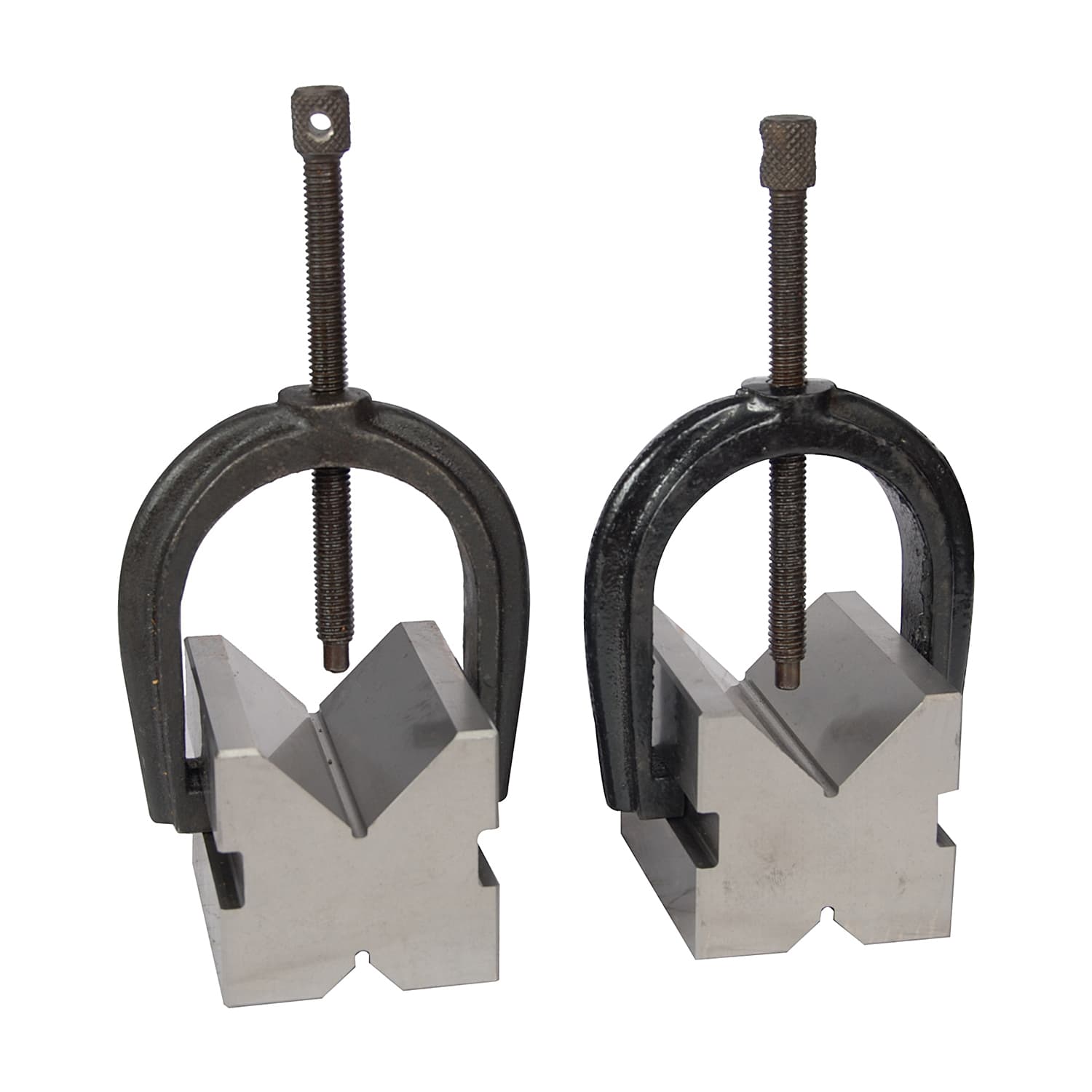

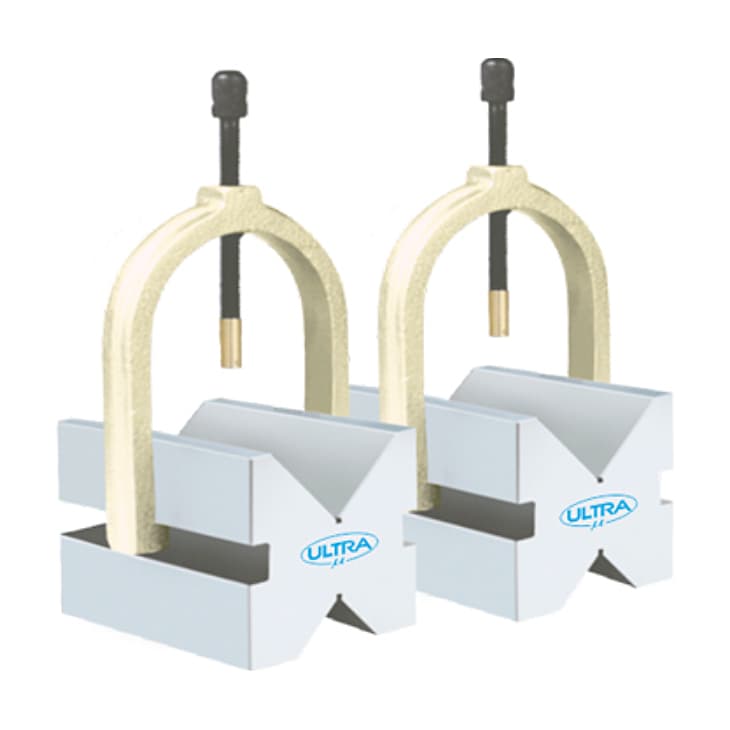

Apex 100 x 75 x 75 mm Tool Maker's Vee Block & Precision Clamping Set (Pack of 2 Pcs), 779-8
Roll over the image to zoom in
Key Features
- Product Type: 'V' Blocks With Clamps
- Length (mm): 100 mm
- Width (mm): 75 mm
- Height (mm): 75 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,551 (Incl. of all taxes)
₹14,026 + ₹2,525 GST (18%)
MRP was MRP ₹21,578
Save 35%
7 Business Days
2
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Manufactured and numbered in matched pairs, each pair has two 90 degree Vees of different capacities which are identical to the Vees of its matching block. The Vees are ground central, parallel and square with the ends and sides.
- Each pair of vee Blocks comes compete with a pair of rigid and robust clamps.
Application:
- Useful for holding work securely during drilling, milling and grinding operations and also in layout and inspection work.
Construction:
- Made from finely selected tool steel fully hardened to 50-55 HRC.
Accuracy:
- Permissible height difference between matched pairs within 5 microns
- Parallelism and squareness of Vee Grooves with respect to all surfaces within 8 microns
- Parallelism of opposite faces of Vee Blocks within 8 microns
- Squareness of adjacent exterior faces of vee Blocks within 8 microns
- Flatness of working faces within 5 microns
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 100 mm |
|---|---|
| Width (mm) | 75 mm |
| Height (mm) | 75 mm |
| Width Small Vee (mm) | 30 mm |
| Width Large Vee (mm) | 68 mm |
| Clamping Capacity (mm) | 75 mm |
