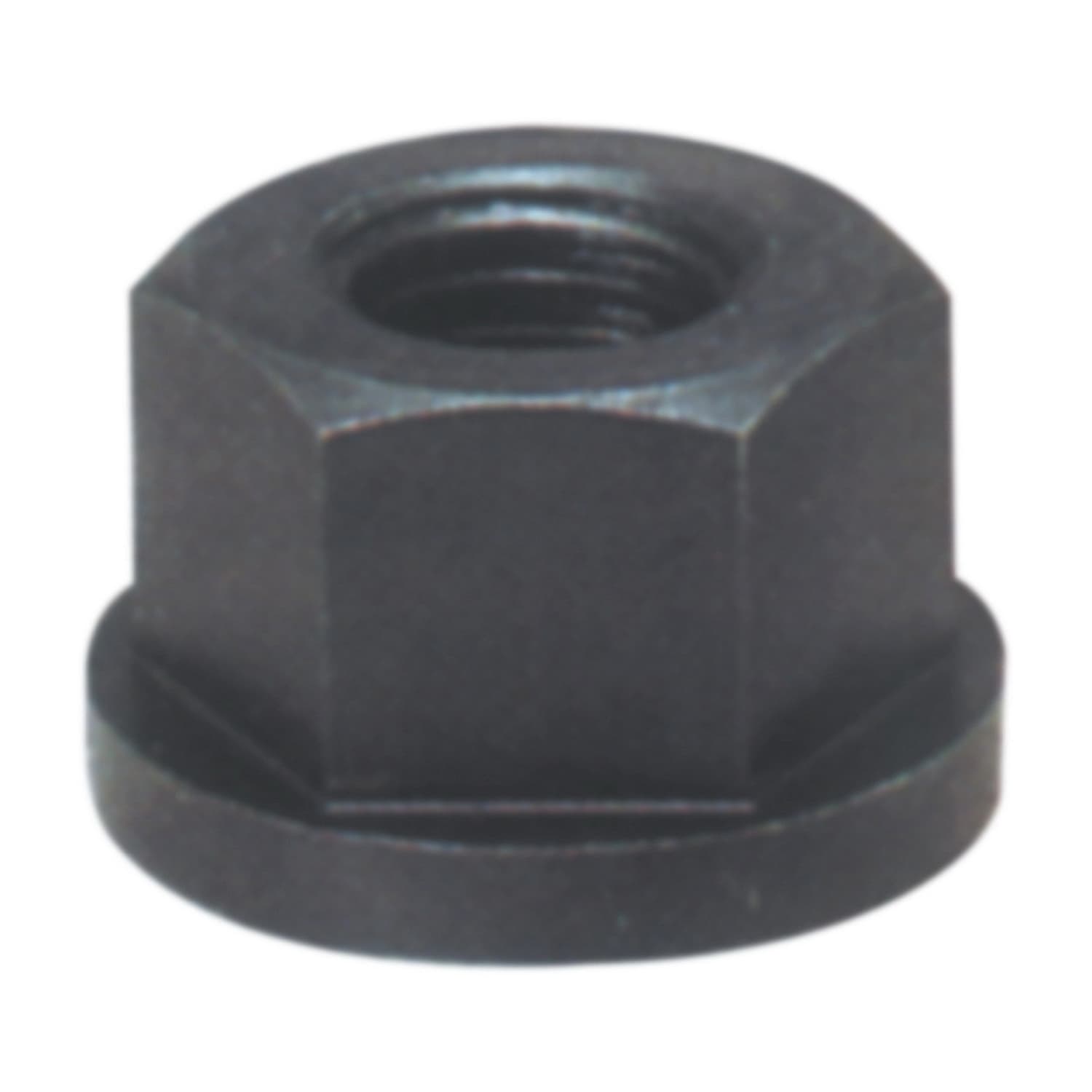

Apex M10 Dia. Steel Flanged Nut (Pack of 10 Pcs), 921-2
Roll over the image to zoom in
Key Features
- Product Type: Flange Nuts
- Diameter (mm): M10
- Pack Quantity: 10 Pcs
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹453 (Incl. of all taxes)
₹384 + ₹69 GST (18%)
MRP was MRP ₹590
Save 35%
5 Business Days
10
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
As per IS: 7795-1975
Construction:
- Class 8.8 (8G) R=80/90 kg/mm2
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

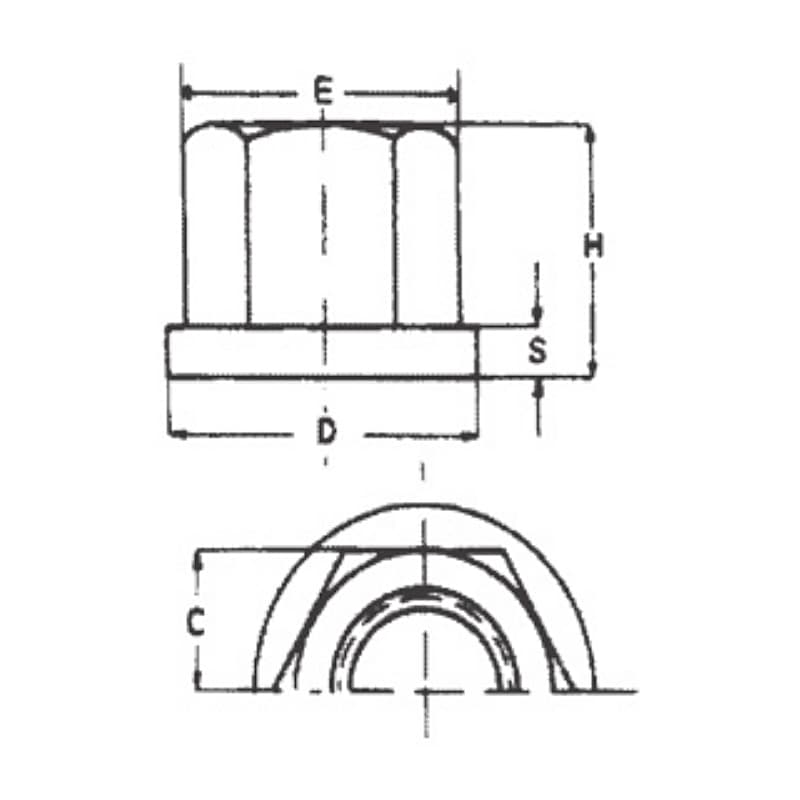

Specifications
| Diameter (mm) | M10 |
|---|---|
| Pack Quantity | 10 Pcs |
| C (mm) | 17 mm |
| H (mm) | 15 mm |
| S (mm) | 4 mm |
| D (mm) | 22 mm |
| E (mm) | 19.6 mm |
| Grade | 8.8 |
| Finish | Burnished |
| Material | Hardened & Tempered Steel |
