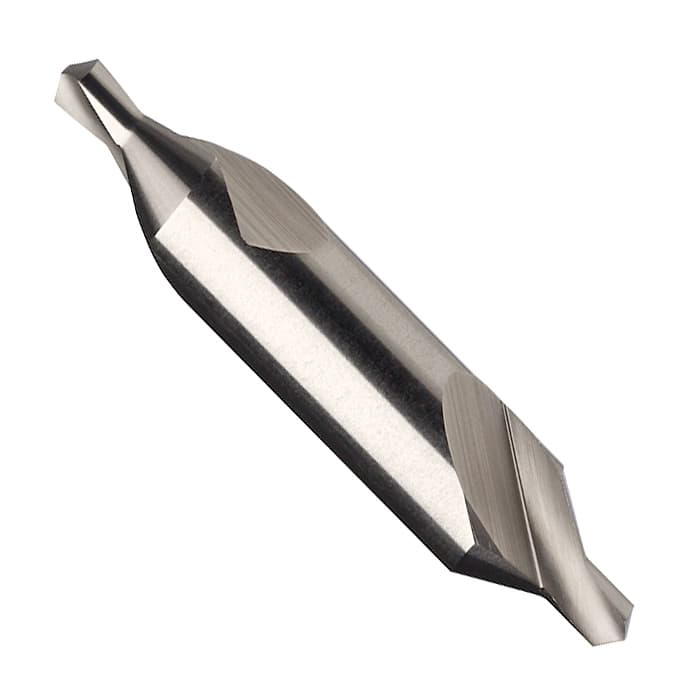

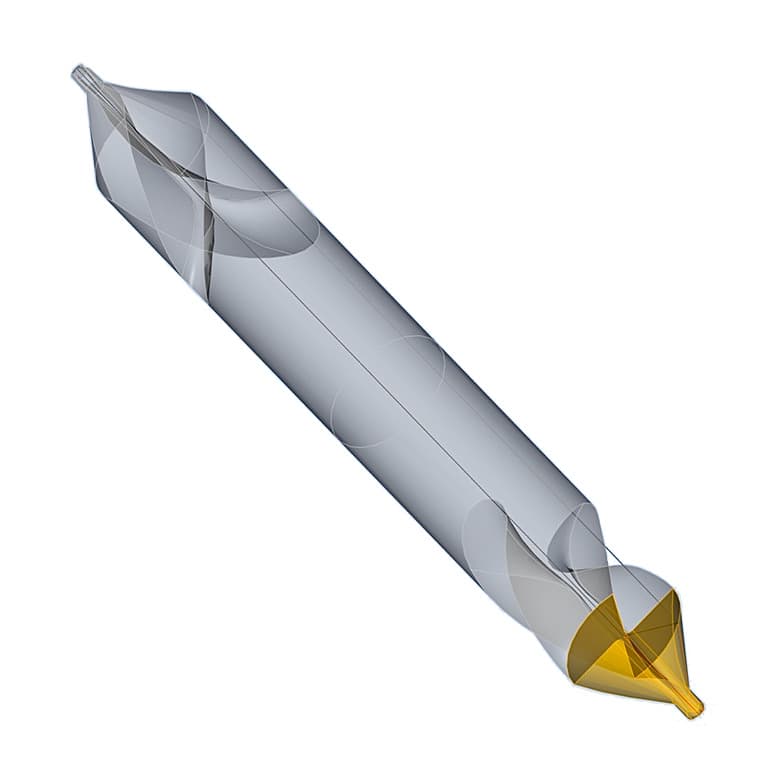

Atorn 12.50 mm Pilot Dia. / 31.50 mm Body Dia. / 125 mm Length HSS Centre Drill - Type 'A', 10440568
Roll over the image to zoom in
Key Features
- Product Type: Centre Drills
- Weight: 0.2 kg
- Pilot Dia: 12.50 mm
- Body Dia: 31.50 mm
- Length: 125 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,582 (Incl. of all taxes)
₹17,442 + ₹3,140 GST (18%)
MRP was MRP ₹34,884
Save 50%
5 Business Days
1
–
Download Product LeafletNot available
Download Atorn CatalogueNot available
Download Atorn CatalogueNot available
Highlights
- For universal use up to 1000 N/mm²
- Application: For centre drilling on conventional and CNC machines.
- Advantage: Radial relief ensures optimum chip breaking
- Execution: Spiral-fluted design with relief grinding. diameter 0.5–0.8, ground on one side
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Series | Type 'A' Series |
|---|---|
| Pilot Dia | 12.50 mm |
| Body Dia | 31.50 mm |
| Length | 125 mm |
| Surface | Uncoated |
| Countersink Angle | 60 Degree |
| Cutting Material | HSS |
| F steel 700 | 0.08 mm/r |
| Grade | DIN 333 |
| Min / Max Cutting Edge Length | 16.5 - 17.5 mm |
| Tool Holding Device | HA Parallel Shank |
