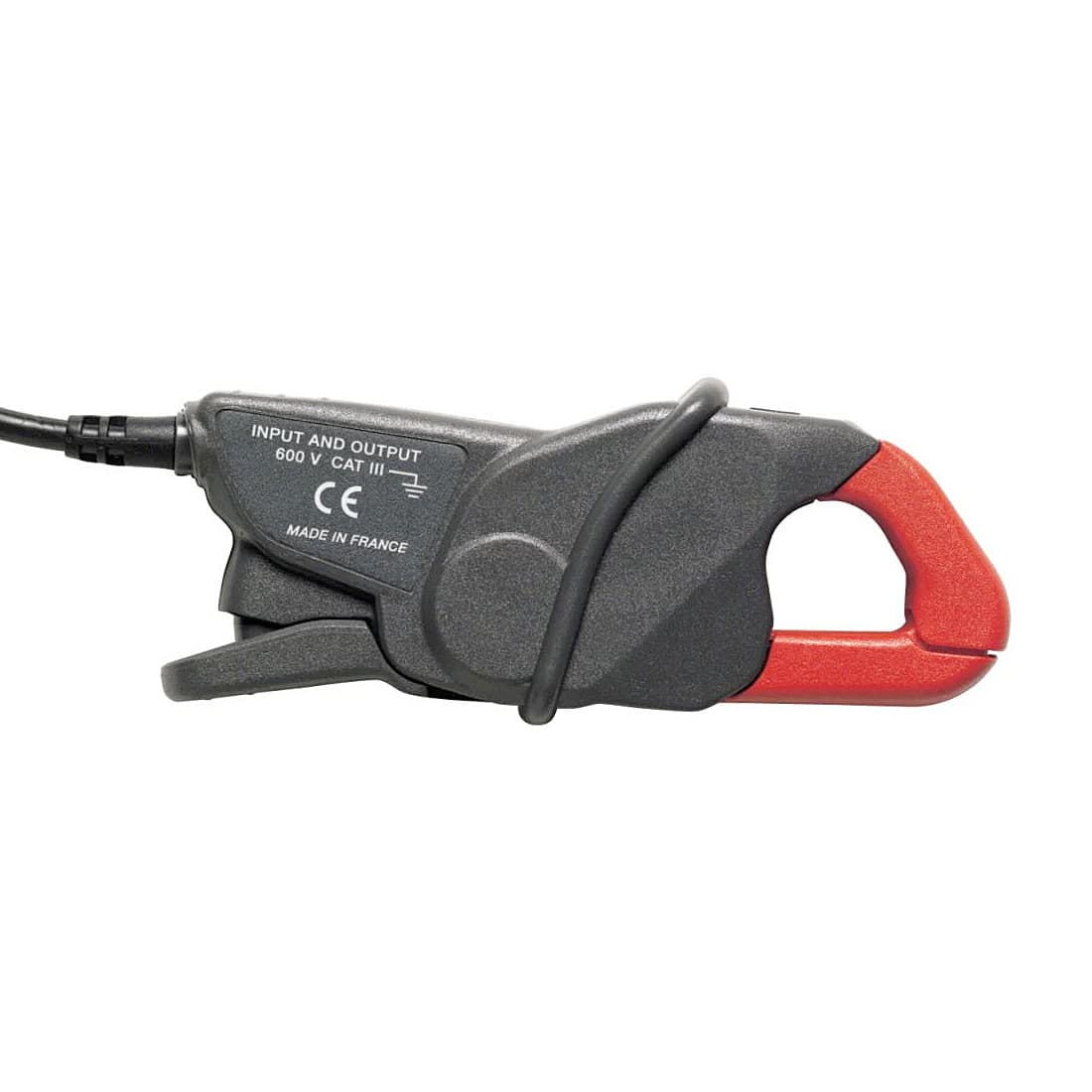

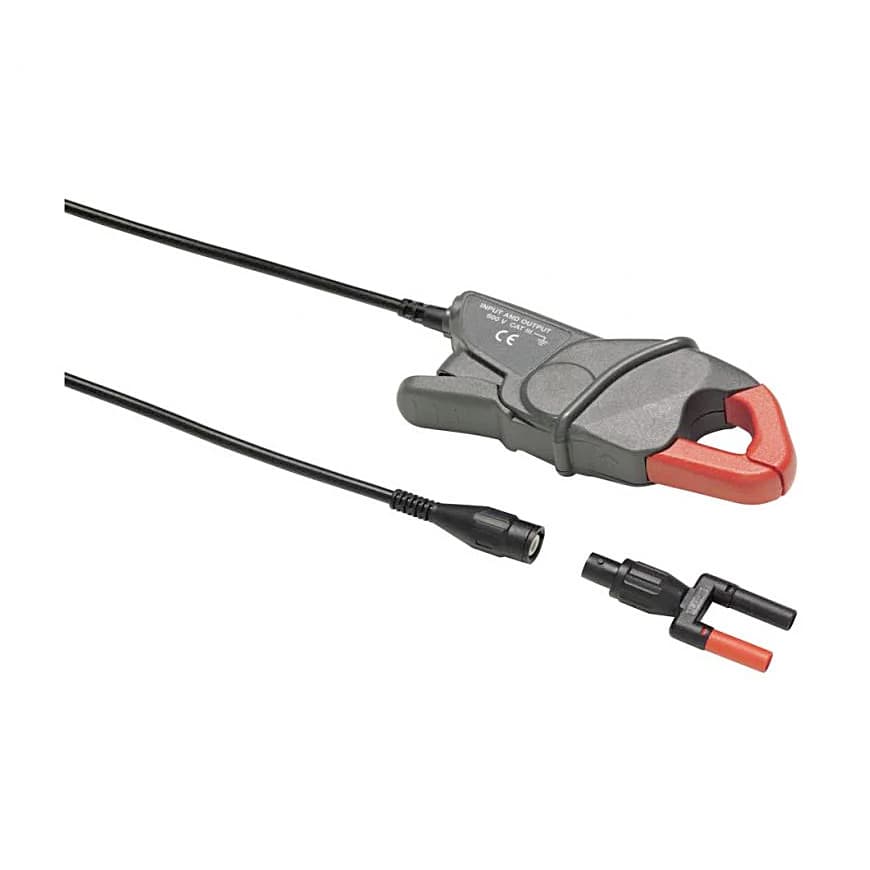

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.
| Nominal current range | 20 A - 200 A |
|---|---|
| Continuous current range | 0.1 A - 24 A - 0.5 A - 200 A |
| Maximum non-destructive | 240 A |
| Lowest measurable current | 0.1 A |
| Basic accuracy | 1.5% + 0.5 A (48-65 Hz) (% reading + floorspec) |
| Useable frequency | 40 Hz - 10 kHz |
| Output level | 100 mV/A 10mV/A |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V AC |
| Maximum conductor diameter | 20 mm |
| Maximum conductor size (busbar) | 20 x 5 mm |
| Output cable length | 2 Mtr |
| BNC Adapter |
|---|
| Yes |
| BNC to banana adapter included | Yes |
|---|
