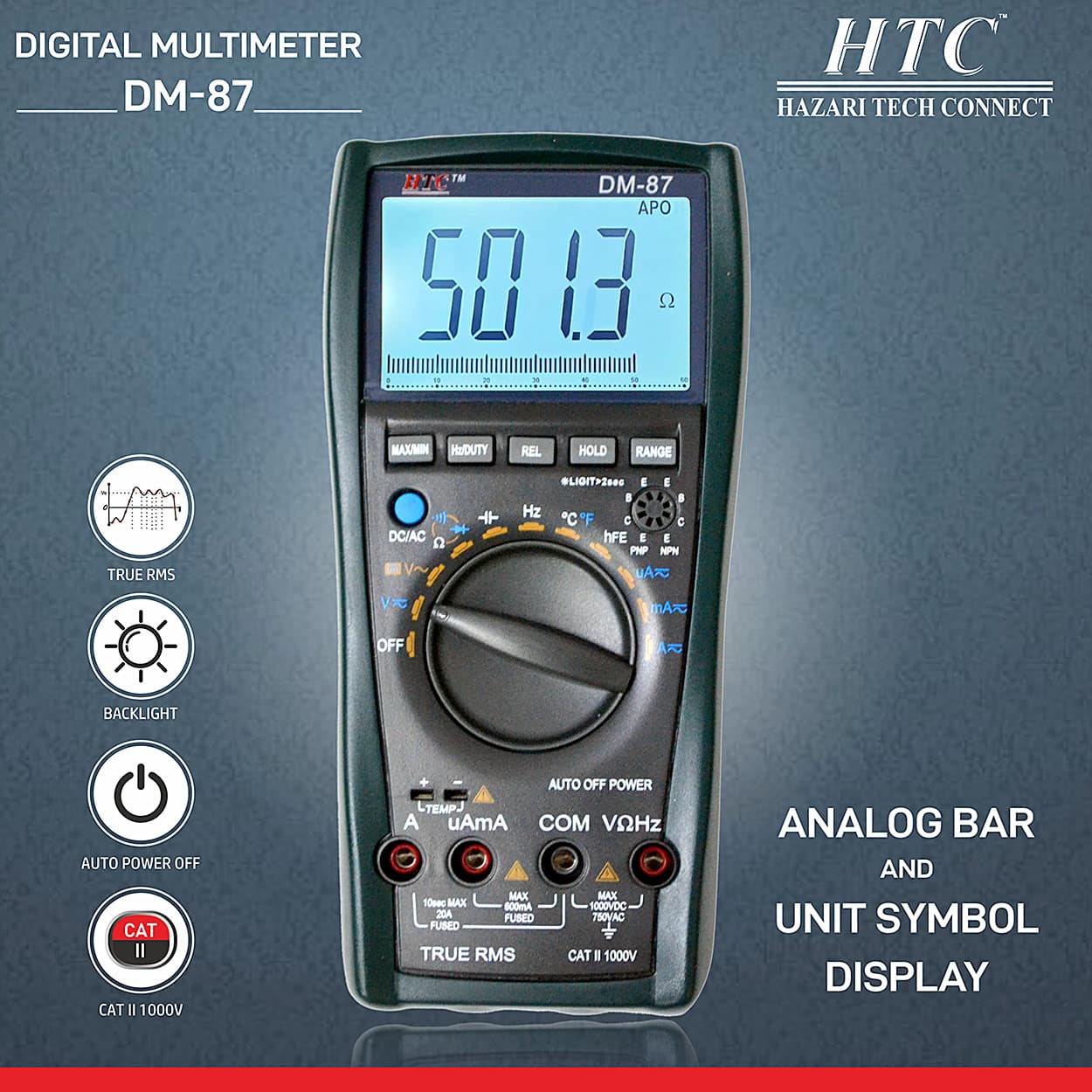

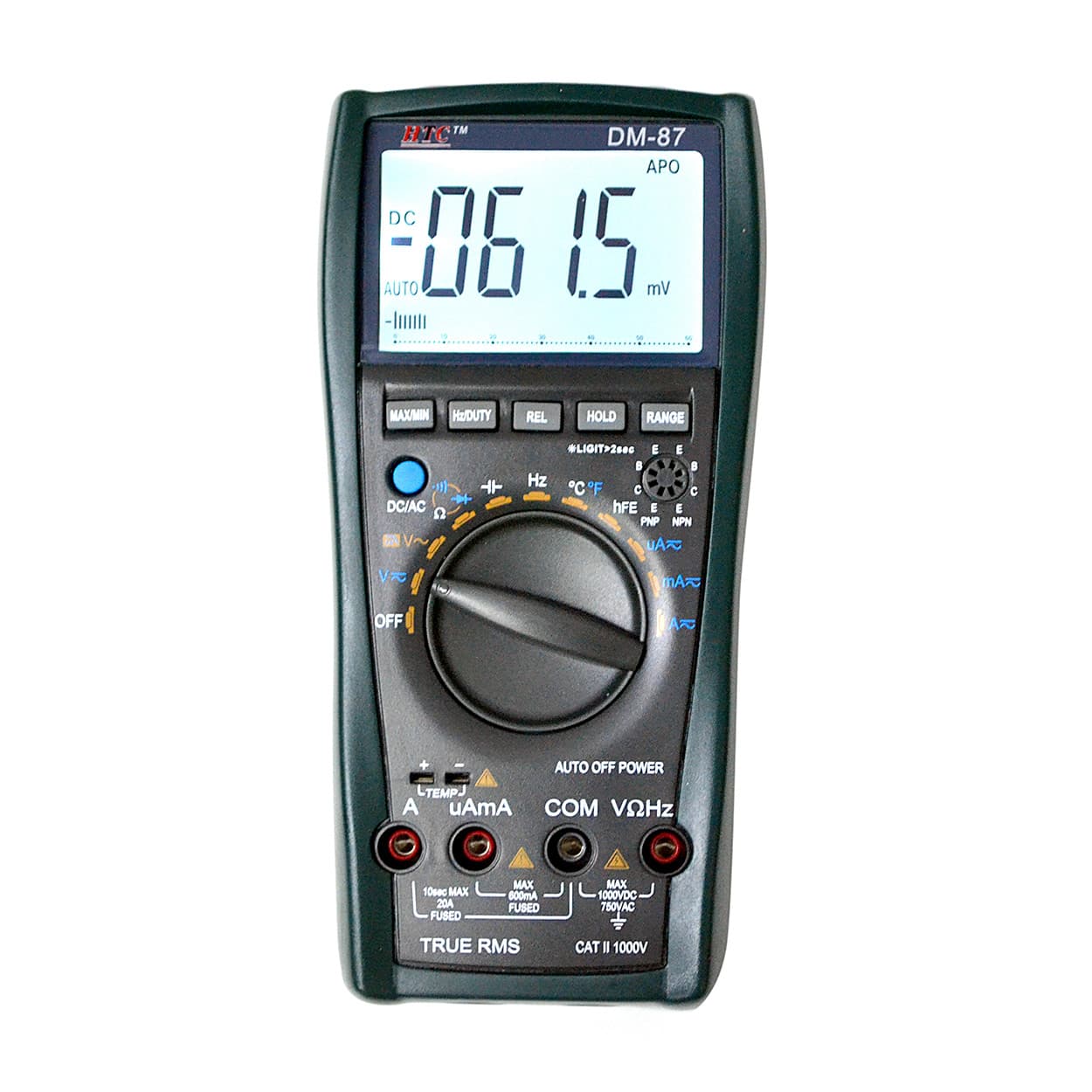

HTC 3-6/7 Digit / 5999 Count True RMS Digital Multimeter With Backlight & VSD, DM-87

• 3 6/7 Digit Multimeter with Backlight
• 5,999 Count
• VSD & True RMS
• Auto Power Off (APO) under natural operation

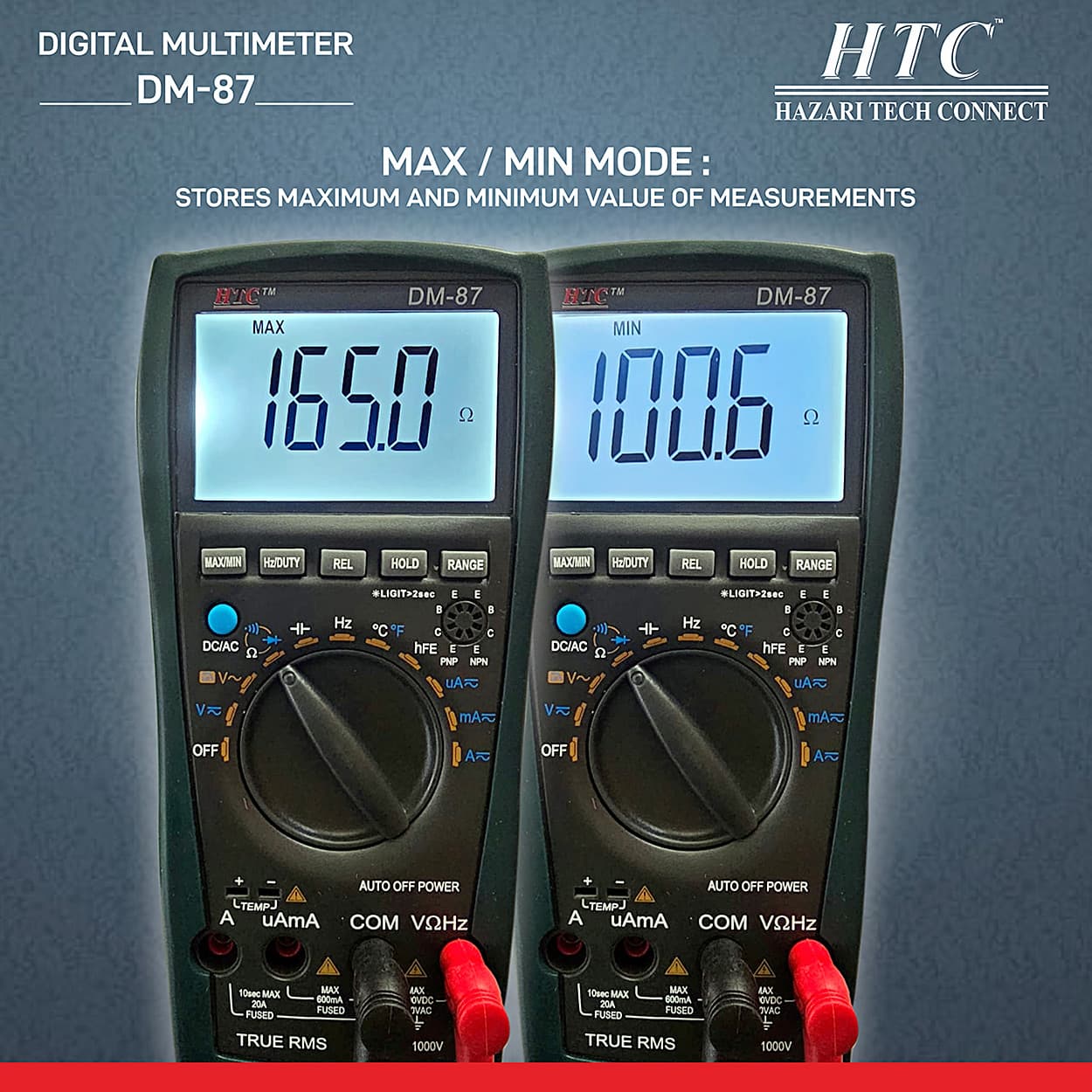

• Data Hold, Max./Min. Value Hold
• Capacitance, Frequency / Duty Cycle, Temperature and Transistor Test
• Temp-40~1000°C Resolution 1°C

Special Function:

• VSD -V 750V (± 2% + 10) True RMS
• Diode Test Function Protection
• Transistor Testing Input impedance 10M?
• Continuity Buzzer Lower 30?+10? Sampling Rate 3 times per second
• Low Battery Display Lower 5.5V AC Frequency Response 30Hz-60Hz or 60Hz-200Hz
• Auto Power OFF Approx. 15 min. Power 9V (6F22) X 1

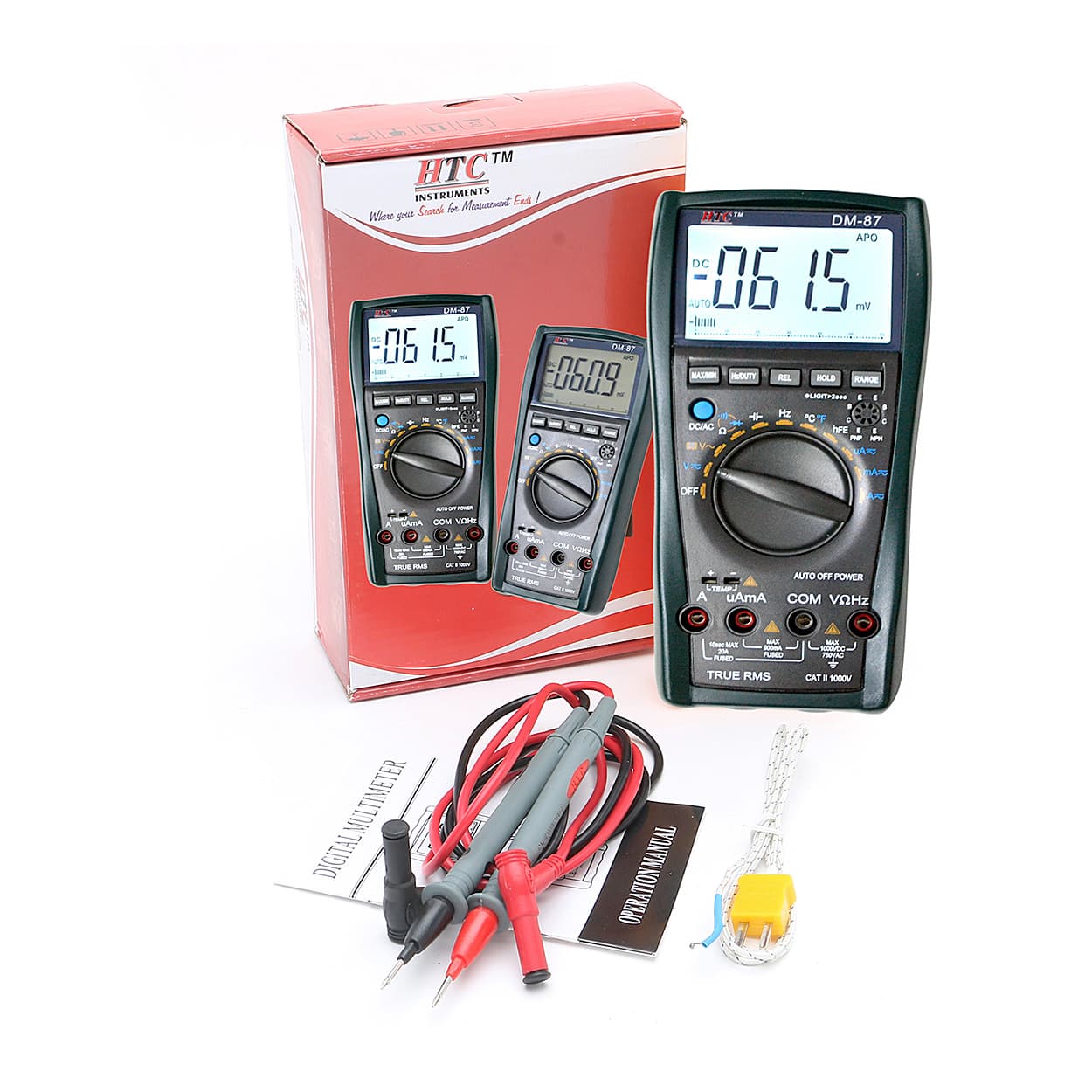

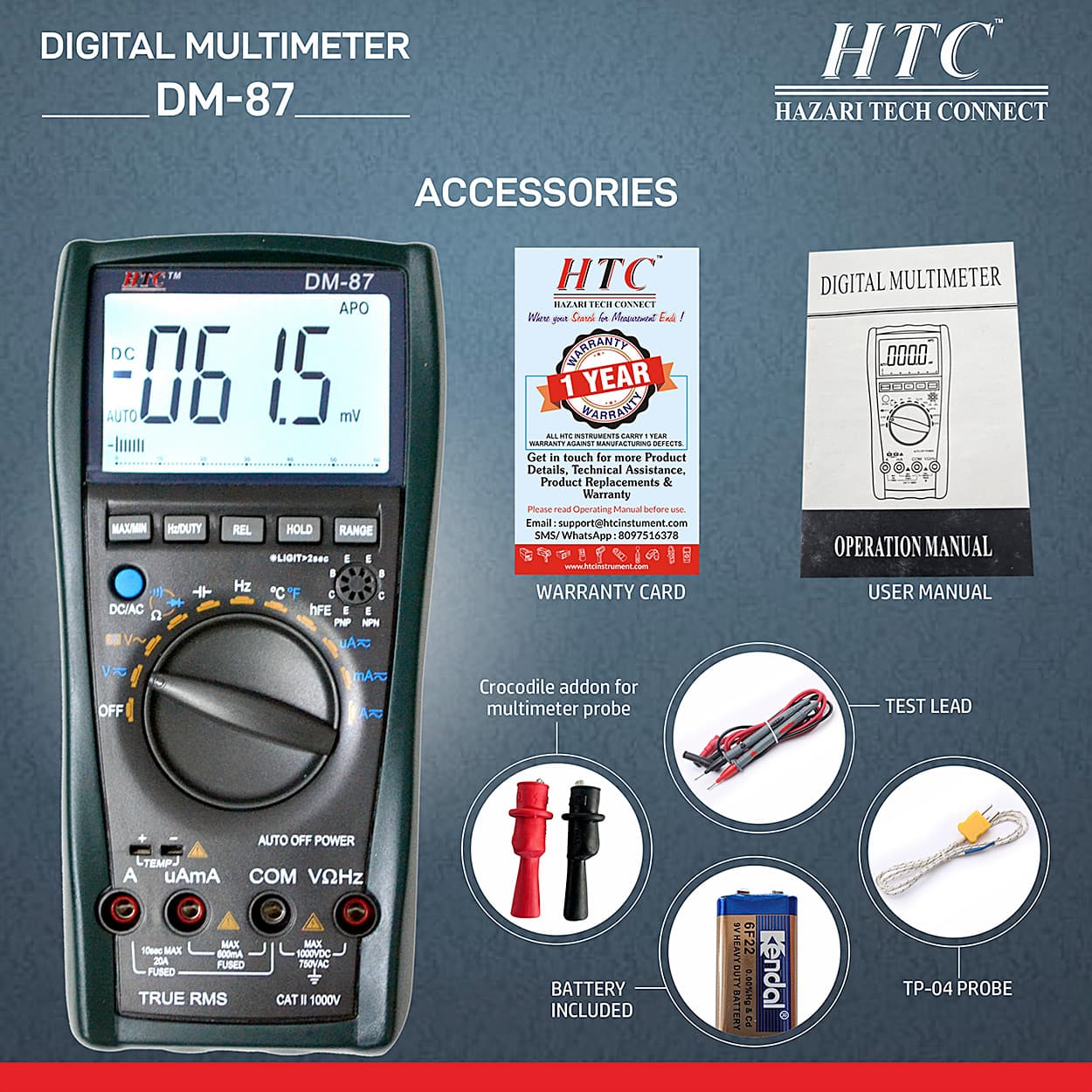

Package Contents:

• Test Lead,
• Manual,
• TP01 Temperature Probe & Battery.

DC Voltage:

Range	Resolution	Accuracy
600mV	0.01mV	±1.0% of rdg + 5 digits
6V	1mV	±0.5% of rdg + 3 digits
60V	10mV
600V	100mV
1000V	1Mv	±1.0% of rdg + 3 digits



AC Voltage (True RMS):

Range	Resolution	Accuracy
6V	1mV	50Hz-5kHz: ± 1.0% of rdg + 10 digits
60V	10mV	5kHz-20kHz: ± 1.5% of rdg + 10 digits
600V	100mV	<200V 50Hz-5kHz & 200V 50Hz-1kHz: ± 1.0 of rdg + 10 digits
750V	1V	50Hz-1kHz: ± 1.0% of rdg + 10 digits



DC Current:

Range	Resolution	Accuracy
600µA	0.1µA	±1.0% of rdg + 3 digits
6000µA	1µA
60mA	10µA
600mA	100µA
6A	1mA	±2.0% of rdg + 5 digits
20A	10mA



AC Current (True RMS):

Range	Resolution	Accuracy
600µA	0.1µA	±1.2% of rdg + 20 digits / (40Hz-400Hz)
6000µA	1µA
60mA	10µA
600mA	100µA
6A	1mA	±1.5% of rdg + 20 digits / (40Hz-400Hz)
20A	10mA	±2.5% of rdg + 20 digits / (40Hz-400Hz)



Resistance:

Range	Resolution	Accuracy
600Ω	0.1Ω	±0.8% of rdg + 5 digits
6kΩ	1Ω	±0.8% of rdg + 3 digits
60kΩ	10Ω
600kΩ	100Ω
6MΩ	1KΩ
30MΩ	10KΩ	±1.2% of rdg – 10 digits + 5 digits



Capacitance:

Range	Resolution	Accuracy
40nF	10pF	±2.5% of rdg + 5 digits
400nF	100pF	±2.5% of rdg + 5 digits
4µF	1nF
40µF	10nF
400µF	100nF
2000µF	1µF	±5.0% of rdg + 10 digits

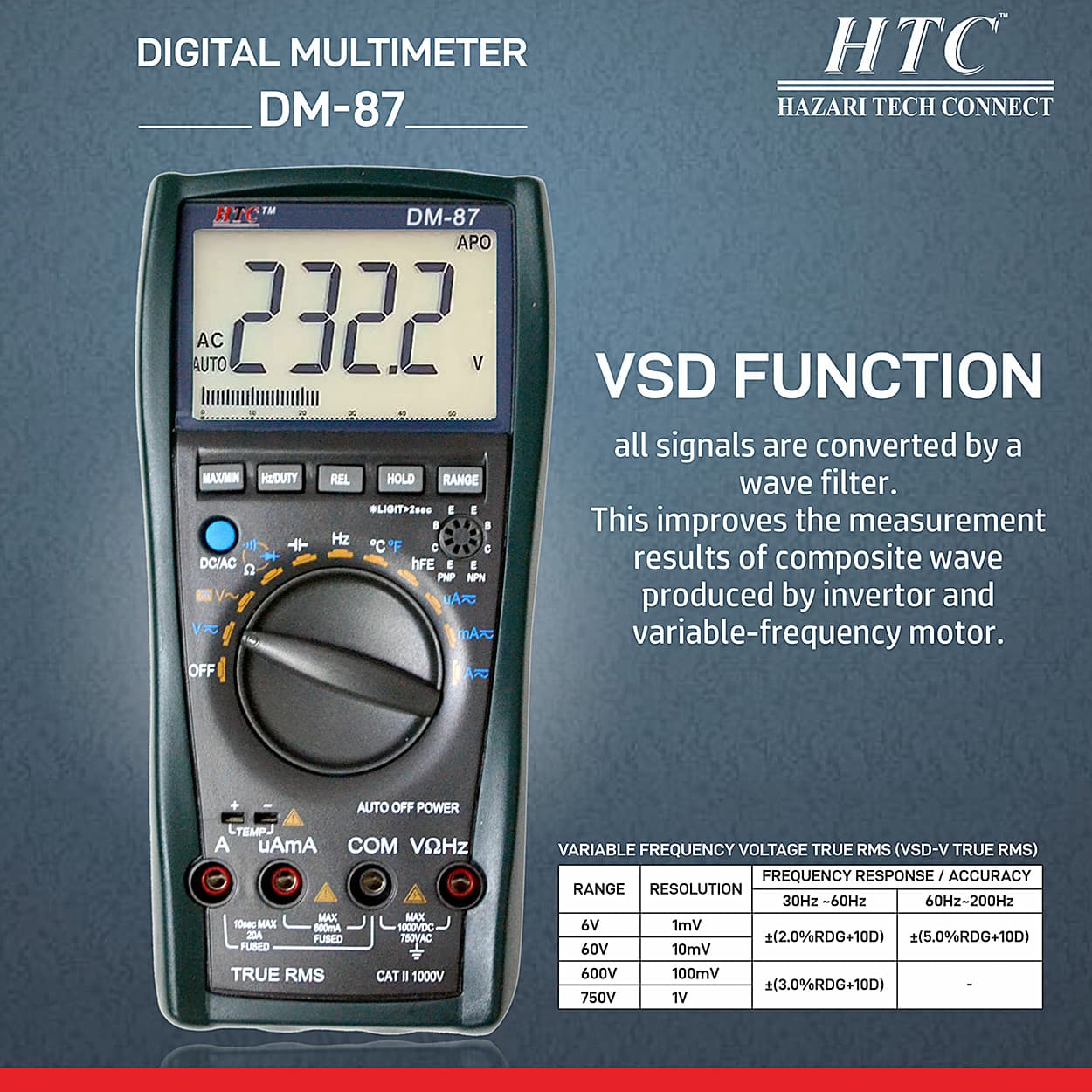

Variable Frequency Voltage True RMS (VSD-V True RMS):

Range	Resolution	Accuracy
		30Hz-60Hz	60Hz-200Hz
6V	1mV	±2.0% of rdg + 10 digits	±5.0% of rdg + 10 digits
60V	10mV
600V	100mV	±3.0% of rdg + 10 digits
750V	1V
