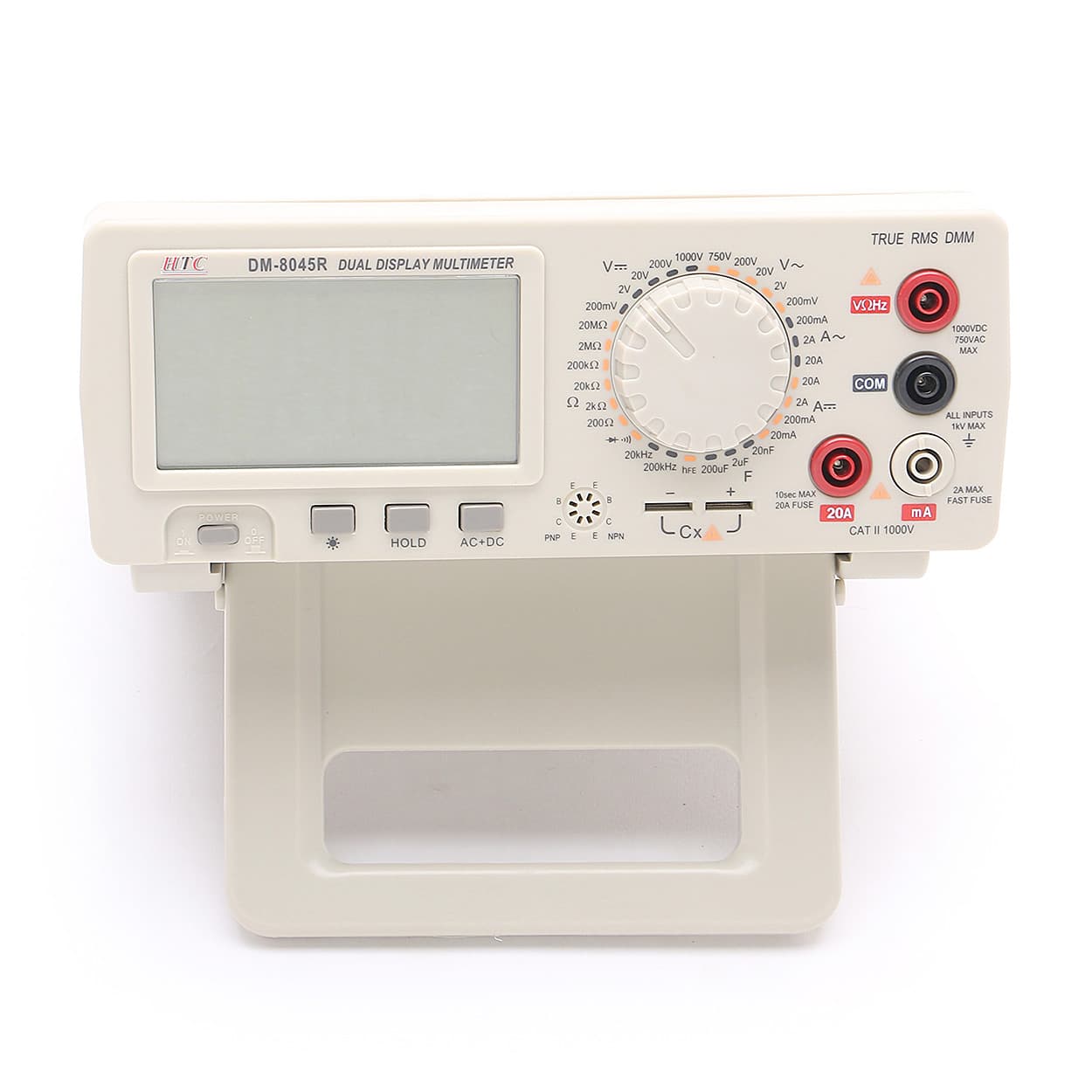

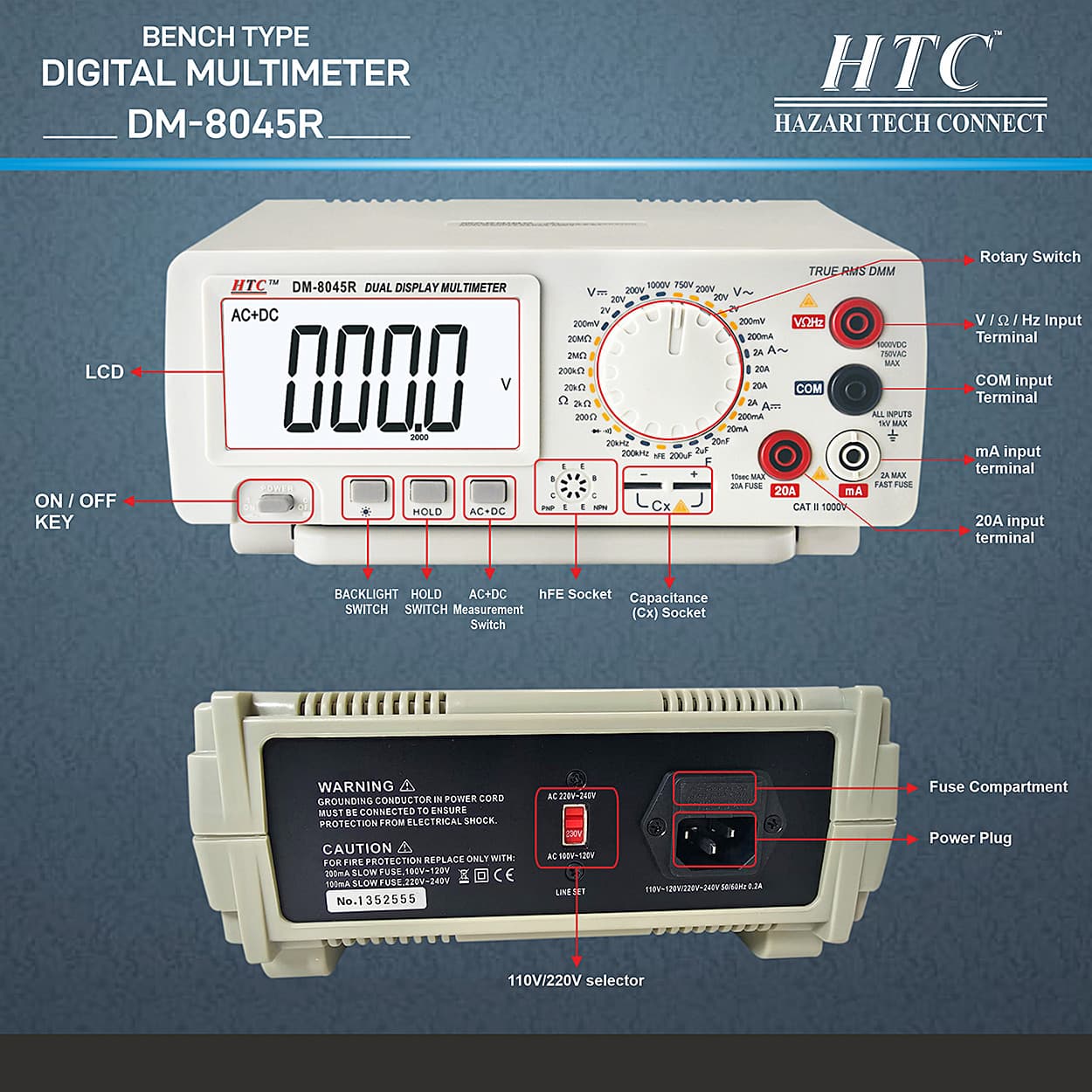

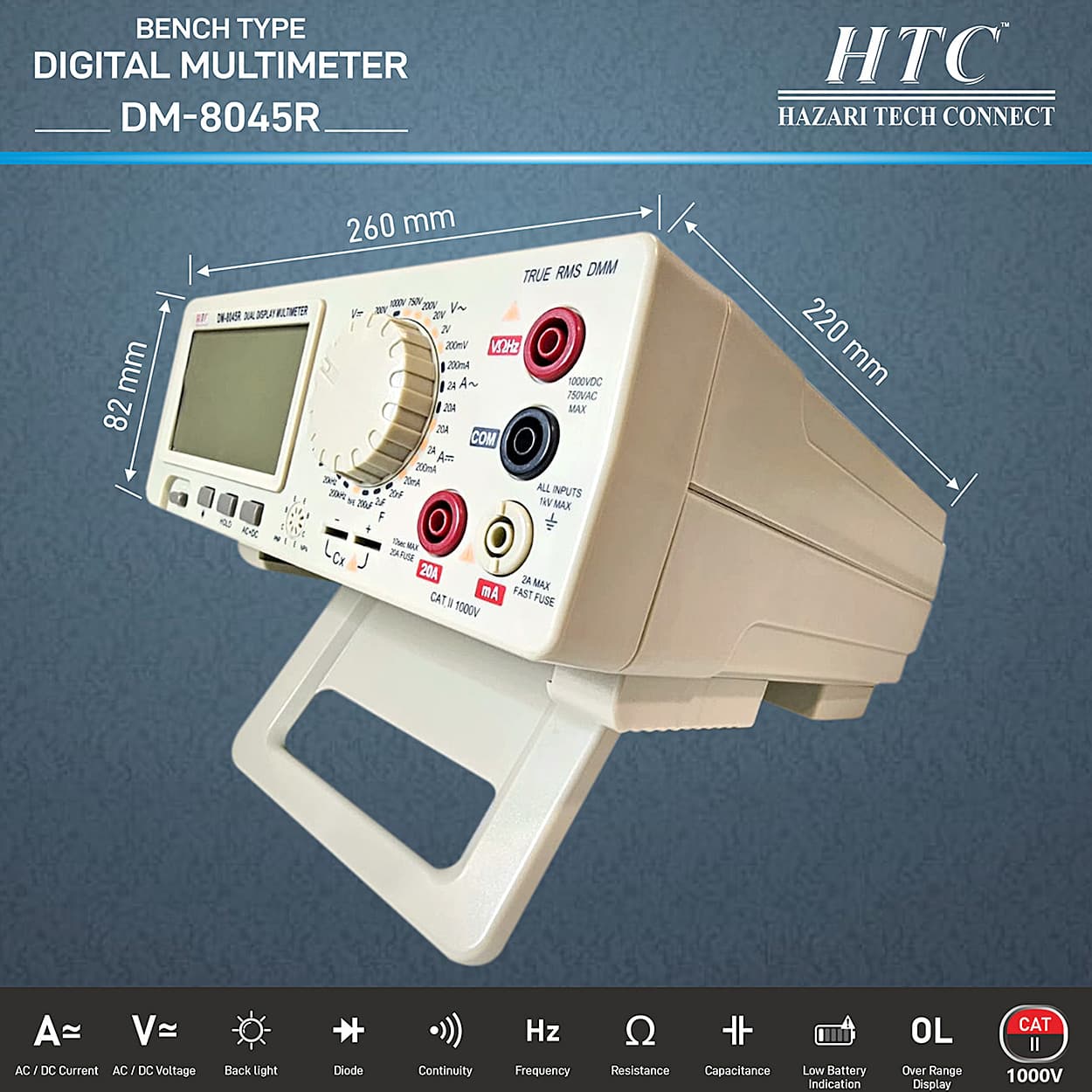

HTC 4-1/2 Digit / 19999 Count True RMS Bench Type Digital Multimeter With Backlight, DM-8045R

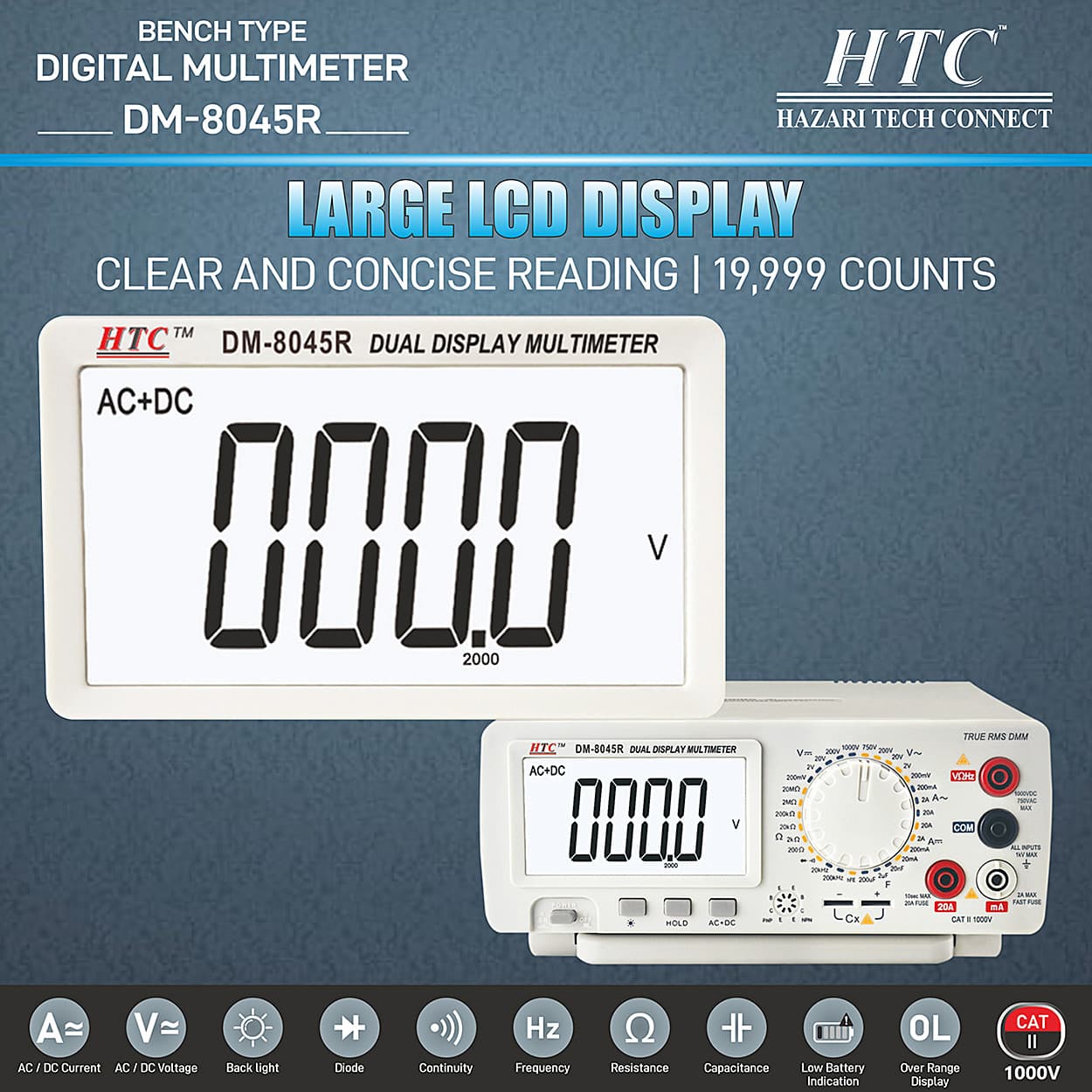

• 4½ Digit True RMS with Backlight.
• 19,999 Count.
• Auto Power Off (APO)
• Data Hold.

Special Function:

• Diode Test: Overload Protection.
• hFE Test: Function Protection.
• True RMS: Anti-Shock Protect.
• Continuity Buzzer Approx: <30?+10? Input impedance 10M.
• Low Battery Display Approx: <7.5V Sampling Rate 3 times per second.
• Auto Power OFF Approx. 30 min: AC Frequency Response 40-400Hz.

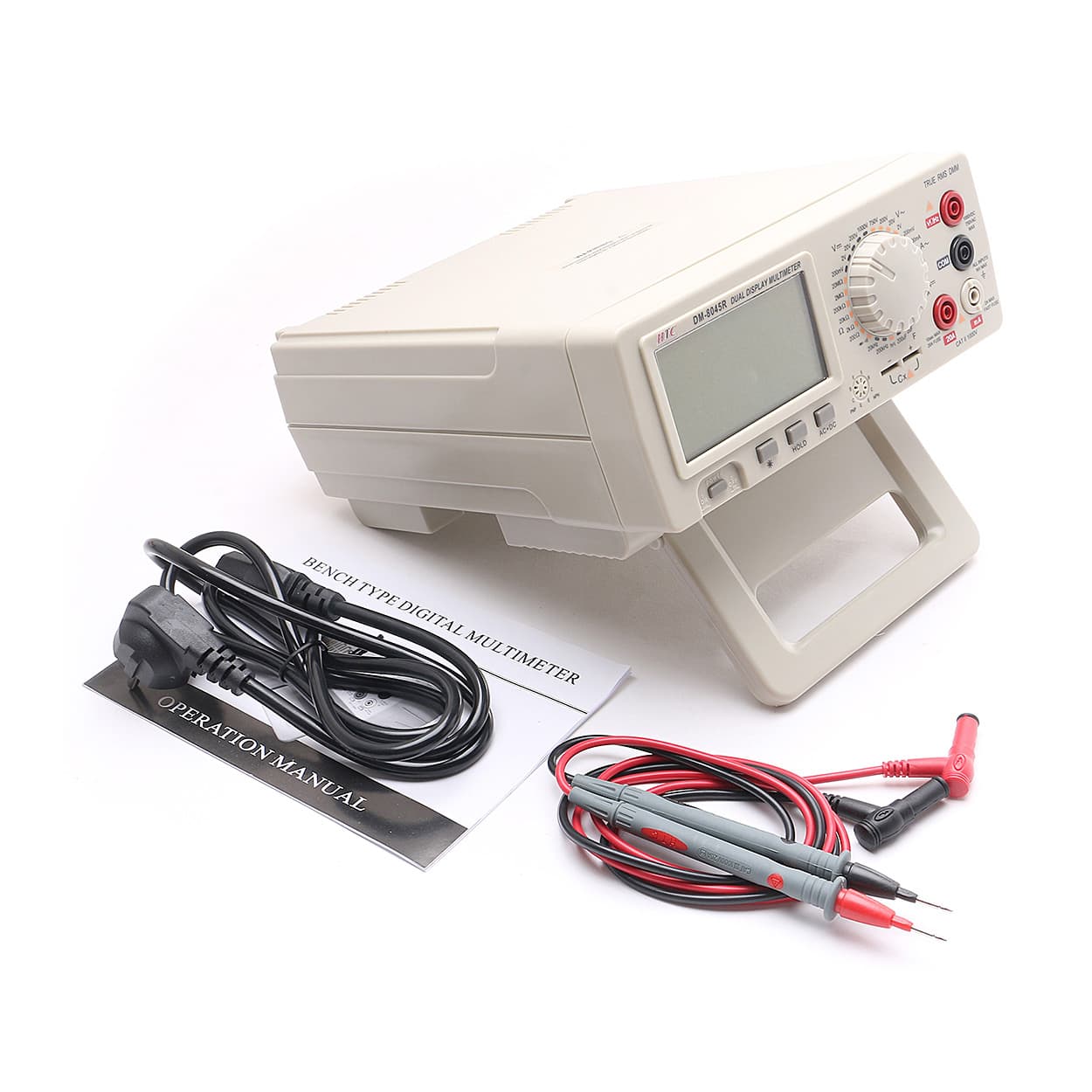

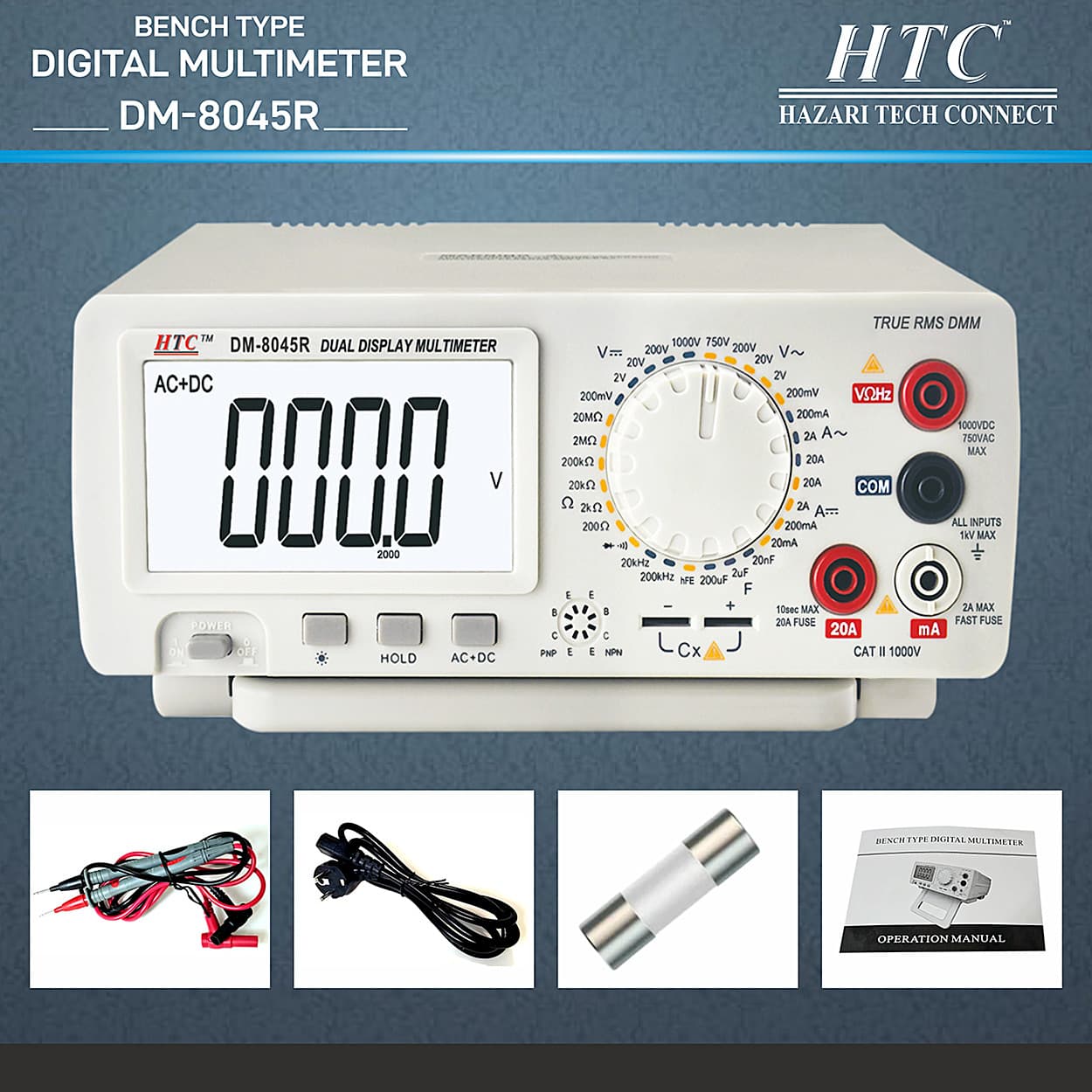

Package Contents:

• Test Lead,
• Manual,
• Power Cord.

DC Voltage:

Range	Resolution	Accuracy
200mV	10µV	±0.05% of rdg + 1 digits
2V	100µV
20V	1mV
200V	10mV
1000V	100mV	±0.1% of rdg + 5 digits



AC Voltage:

Range	Resolution	Accuracy	Input Frequency
200mV	10µA	±0.8% of rdg + 80 digits	50Hz-20kHz
2V	100µA
20V	1mV
200V	10mV	50Hz-5kHz
750V	100mV	±1.0% of rdg + 50 digits	50Hz-400kHz



DC Current:

Range	Resolution	Accuracy
20mA	1µA	±0.35% of rdg + 10 digits
200mA	10µA
2A	100µA	±1.2% of rdg + 20 digits
20A	1mA



AC Current:

Range	Resolution	Accuracy	Input Frequency
200mA	10µA	±0.8% of rdg + 80 digits	50Hz-5kHz
2A	100µA	±1.5% of rdg + 50 digits	50Hz-400Hz
20A	1mA



Resistance:

Range	Resolution	Accuracy
200?	0.01?	±0.1% of rdg + 10 digits
2k?	0.1?	±0.1% of rdg + 5 digits
20k?	1?
200k?	10?
2M?	100?
20M?	1K?	±0.6% of rdg + 5 digits



Capacitance:

Range	Resolution	Accuracy
20nF	1pF	±3.5% of rdg + 20 digits
2µF	100pF
200µF	10nF	±5.0% of rdg + 30 digits



Frequency:

Range	Resolution	Accuracy
20kHz	1Hz	±1.0% of rdg + 20 digits
200kHz	10Hz
