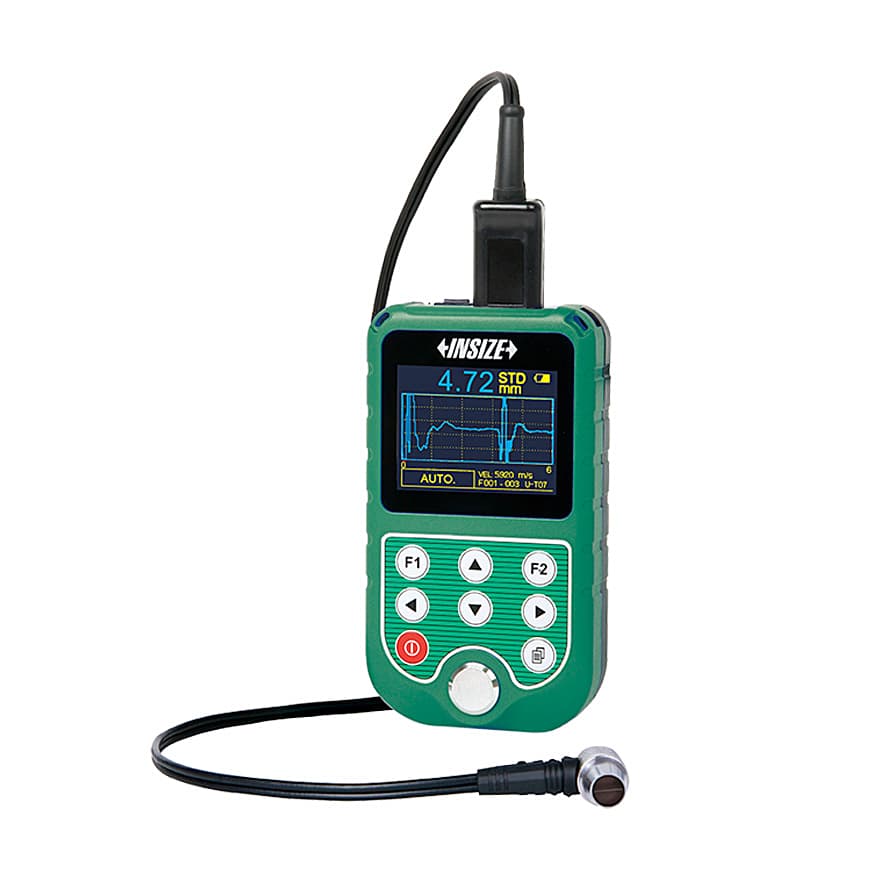

Insize 1.5 - 200 mm Ultrasonic Thickness Gauge, ISU-720D

• Data Output

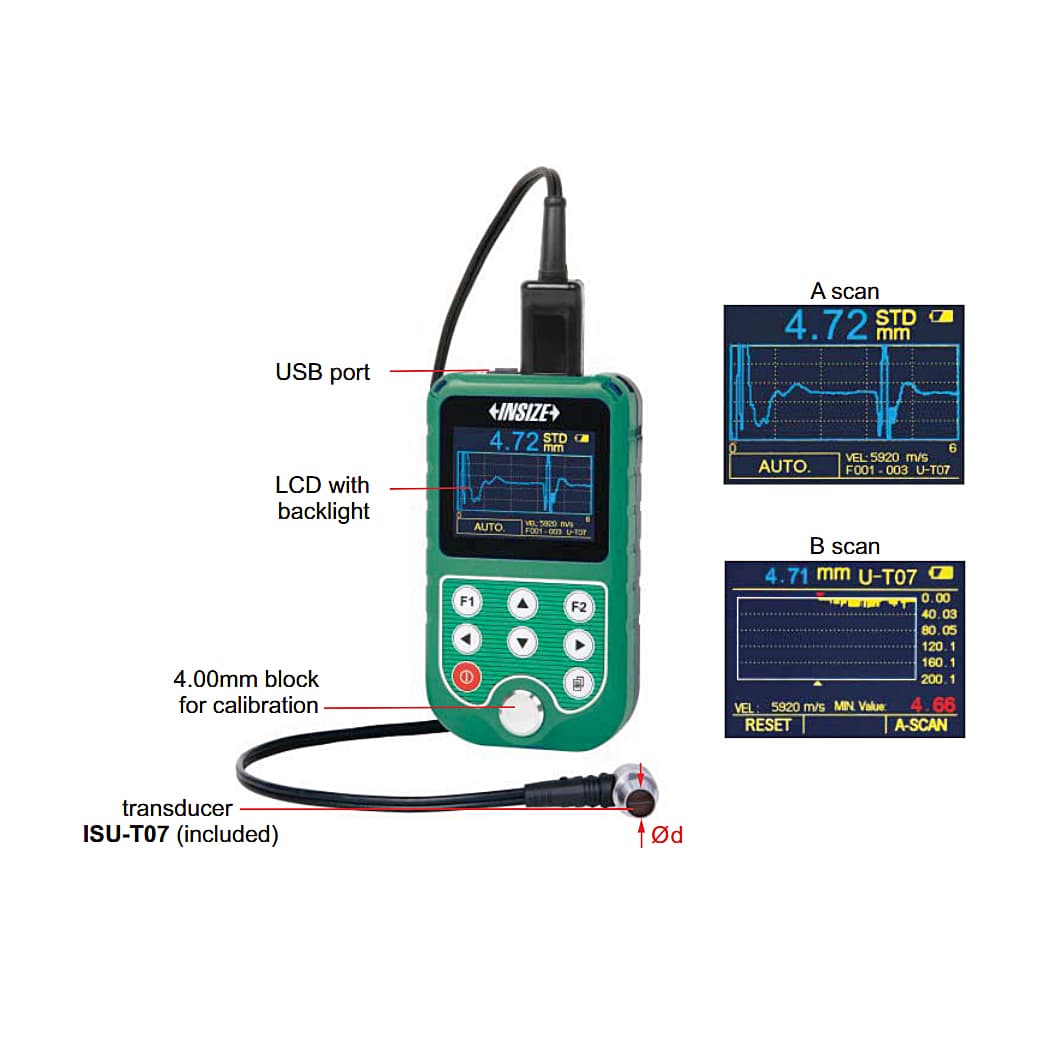

• A scan, through the waveform, judges whether there are impurities, pores, cracks and so on inside, in order to avoid wrong measurement
• B scan, measures continuously, displays the thickness change on the screen
• Transducers can be automatically identified and zeroed
• Memory 10000 measurement values
• Data can be input to Excel and Word as keyboard signal
• Automatic or manual measurement
• When transducers are removed from workpieces, the measurement data are held on screen for easy viewing
• Set upper and lower limits for alarm when out-of-tolerance
• Automatic power off

Accuracy:

• ±0.04 mm (H<10 mm)
• ±(0.04+H/1000) mm (10<H<100 mm)
• ±H/333 mm (H>100 mm)
• H is the thickness to be measured in mm

Specification of Transducer:

• Model No: ISU-T07

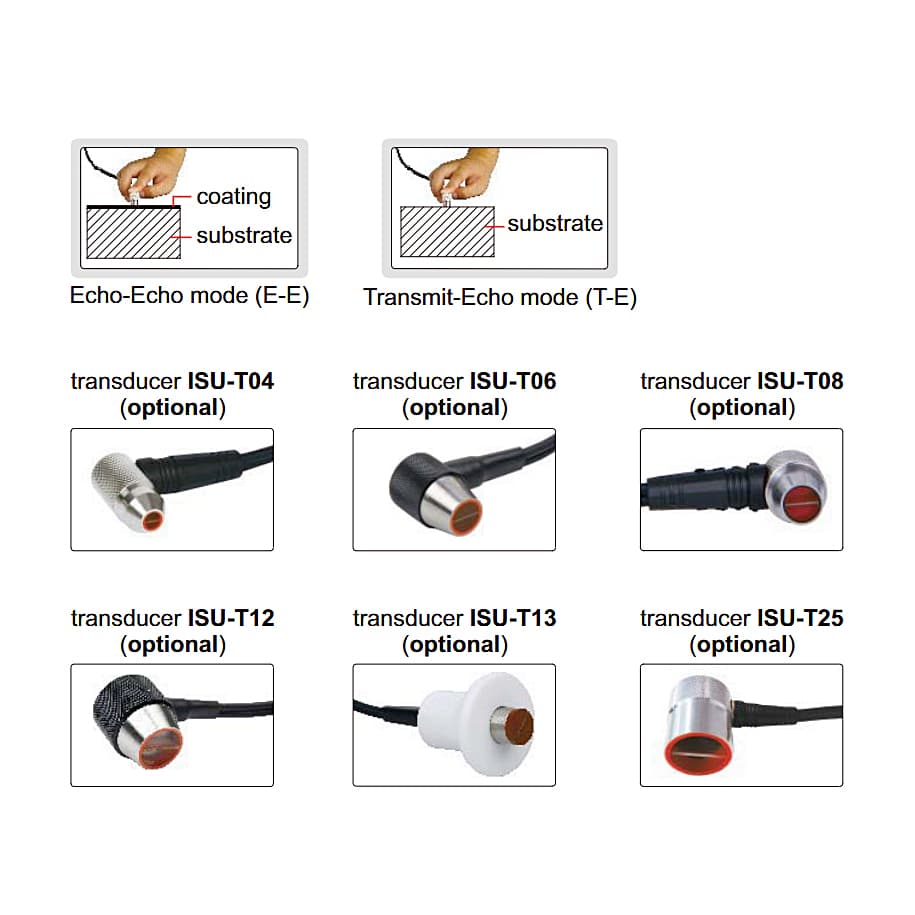

• Mode: T-E E-E
• Diameter (Ø): 13.2 mm
• Measuring Range: 1.5 - 200 mm (T-E) / 3 - 25 mm (E-E)
• Min. size of pipes for measurement: Ø25 mm x 3 mm wall thickness (T-E Mode)
• Applicable Temperature: -20 ~ 60°C
• Application: General Use

Package Content:

• 1x Ultrasonic Thickness Gauge
• 1x Bicrystal transducer ISU-T07
• 2x Battery (AA)
• 1 Bottle x Couplant
• 1x USB cable
