- Small size, light weight, portable, convenient for on-line measurement and can be used to measure large workpieces
- Support 360°measurement, fast test speed, the fastest results in 1 second
- Standard Vickers indentation, small test indentation and low damage to the workpiece
- 100 measurement data sets and 10 calibration data sets can be stored

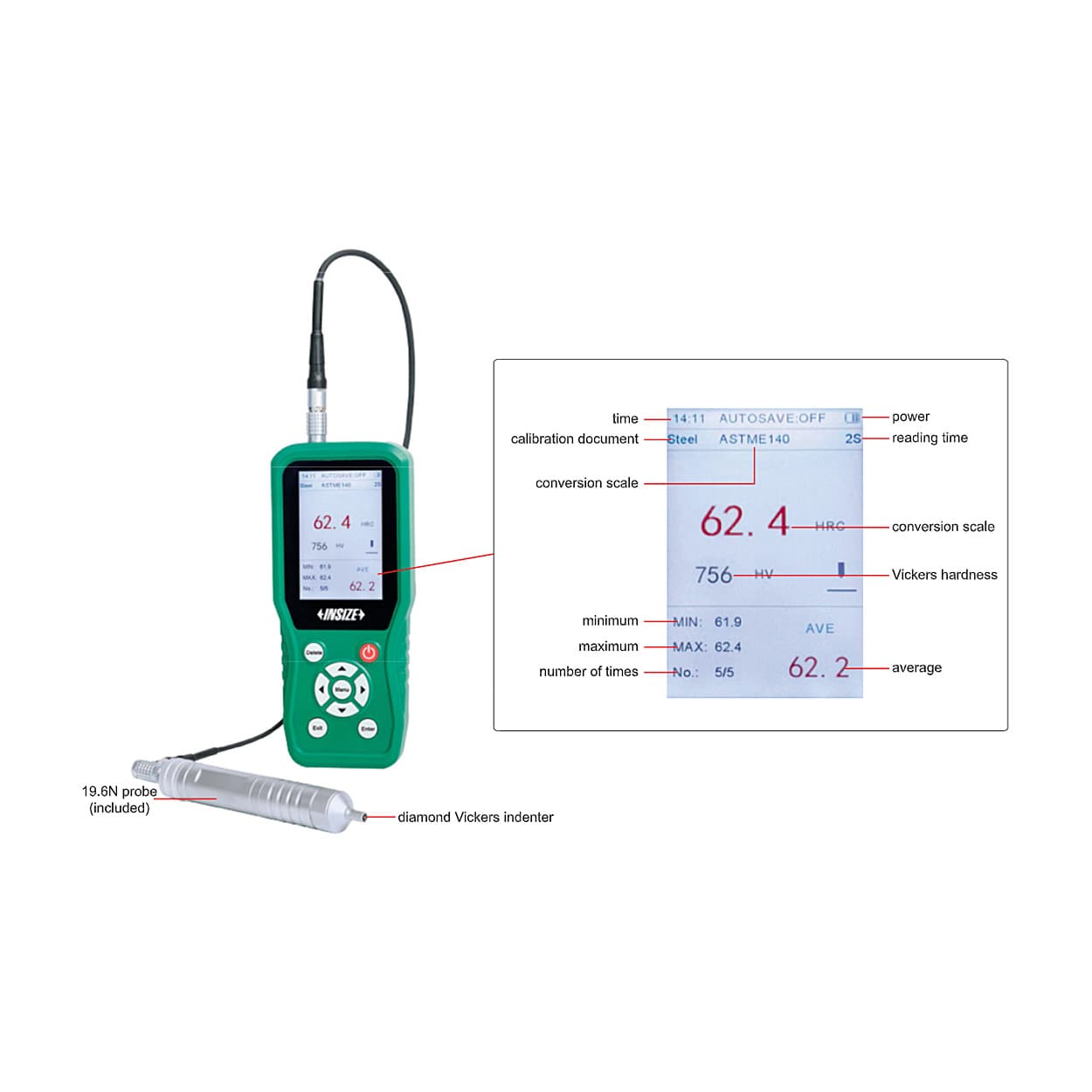

- Large display, directly shows the current measured value, maximum value, minimum value, average value and unit conversion value
- For unspecified conversion tables and unknown materials, multi-point calibration on any hardness scale you can choose to eliminate of systematic errors due to conversion tables
- According to DIN 50159, ASTM A1038 standards
- Convertible Parameters: HRA, HRB, HRC, HBW, HS, MPa
- Measurement Range: 50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa
- Resolution: 1HV, 0.1HRA, 0.1HRB, 0.1HRC, 1HB, 0.1HS, 1MPa
- Calibration Method: One-Point Calibration (Normal Material) / Multi-Point Calibration (Special Material)
- Attention: Hardness Blocks for calibration are optional; Need To Confirm If The Workpieces Are Suitable Before Purchase
Application:
- Hardness measurement of flange edges and gear root stampings, gears and gear grooves with surface hardening of lamina, taper sections
- Hardness measurement of shafts and thin-walled pipes and container
- Hardness measurement of thin plating, wheels, turbine rotors and welded parts
- Measurement of the depth of a certain diameter deep holes, dents of the larger curvature and convex marks, irregular planes
- Covering the majority of hardness measurement of industrial production of ferrous metals, non-ferrous metals and their alloys
What's Included in this Package:

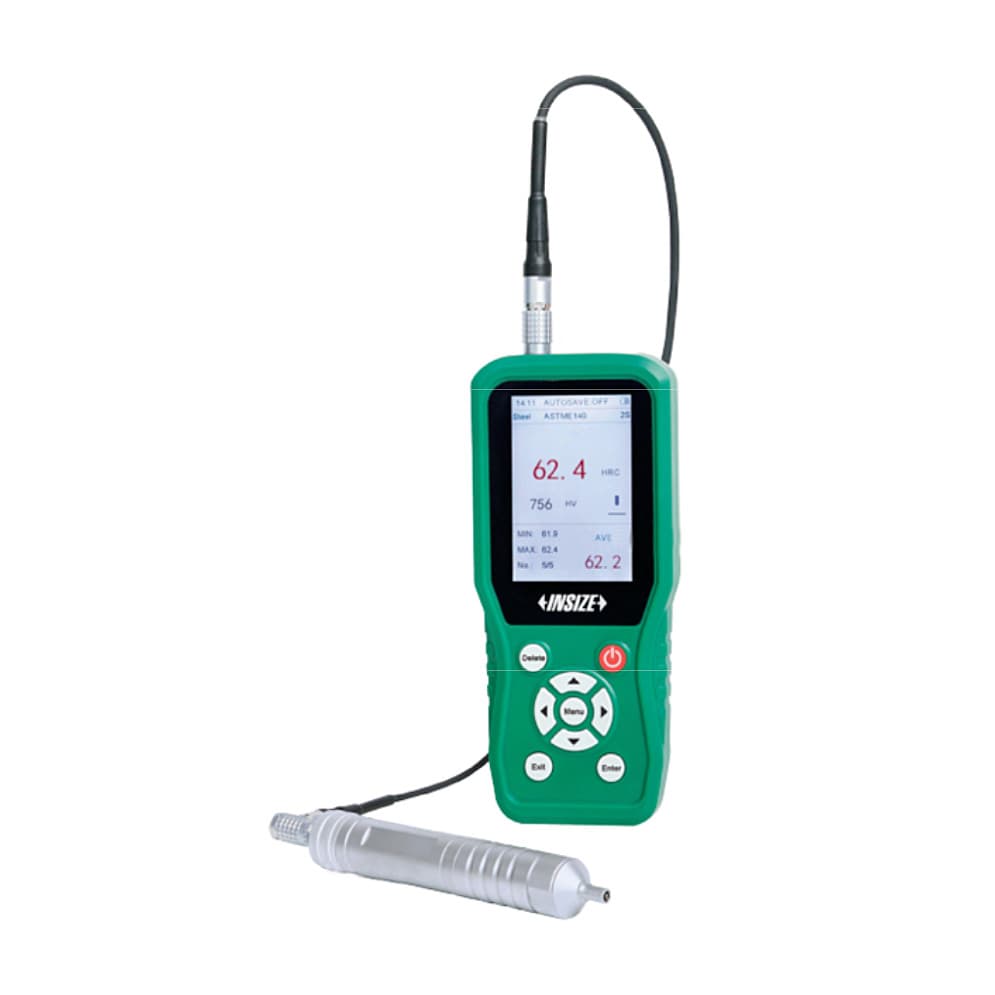

- 1x Ultrasonic Hardness Tester
- 1x 19.6N Manual Probe
- 1x Bluetooth Printer
- 1x Charger
- 1x USB Cable
- 1x Randomized Standard Hardness Block
