₹14,776 (Incl. of all taxes)
₹12,522 + ₹2,254 GST (18%)
MRP was MRP ₹21,109
Save 30%
3 Business Days
| Function | Range | Resolution | Accuracy |
| DC Voltage | 220mV | 0.01mV | ±(0.1%+5d) |
| 2.2V/22V/220V | 0.1mV/0.001V/0.01V | ±(0.05%+5d) | |
| 1000V | 0.1V | ±(0.1%+5d) | |
| AC Voltage | 220mV | 0.01mV | ±(1.0%+10d), 40Hz - 1kHz |
| ±(1.5%+30d), 1kHz - 10kHz | |||
| 2.2V / 22V | 0.1mV / 1mV | ±(0.8%+10d), 40Hz - 1kHz | |
| ±(1.2%+50d), 1kHz - 10kHz | |||
| 220V | 10mV | ±(0.8%+10d), 40kHz - 1kHz | |
| ±(2.0%+50d), 1kHz - 10kHz | |||
| 1000V | 0.1V | ±(1.2%+10d), 40Hz - 1kHz | |
| ±(3.0%+50d), 1kHz - 10kHz | |||
| DC Current | 220µA / 2200µA / 22mA / 220mA | 0.01µA / 0.1µA / 0.001mA / 0.01mA | ±(0.5%+10d) |
| 20A | 0.001A | ±(1.2%+50d) | |
| AC Current | 220µA / 2200µA | 0.01µA / 0.1µA | ±(0.8%+10d), 40Hz - 1kHz |
| ±(3.0%+50d), 1kHz - 10kHz | |||
| 22mA / 220mA / 20A | 0.001mA / 0.01mA / 0.001A | ±(1.2%+10d), 40Hz - 1kHz | |
| ±(3.0%+50d), 1kHz - 10kHz | |||
| Resistance | 220 ohm / 2.2K ohm / 22K ohm / 220K ohm | 0.01 ohm / 0.0001k ohm / 0.001k ohm / 0.01k ohm | ±(0.5%+10d) |
| 2.2M ohm | 0.0001M ohm | ±(0.8%+10d) | |
| 22M ohm | 0.001M ohm | ±(1.5%+10d) | |
| 220M ohm | 0.01M ohm | ±(3.0%+50d) | |
| Capacitance | 22nF / 220nF / 2.2µF / 22µF | 0.001nF / 0.01nF / 0.0001µF / 0.001µF | ±(3.0%+5d) |
| 220µF / 2.2mF | 0.01µF / 0.0001mF | ±(4.0%+5d) | |
| 22mF | 0.001mF | ±(10%+5d) | |
| 220mF | 0.01mF | ±(20%+5d) | |
| Frequency | 10Hz - 220MHz | 0.01Hz - 0.01MHz | ±(0.01%+5d) |
| Duty Cycle | 0.1% - 99.9% | 0.1% | ±(2.0%+5d) |
| Main unit | 1 pc |
| Test Lead | 2 pcs |

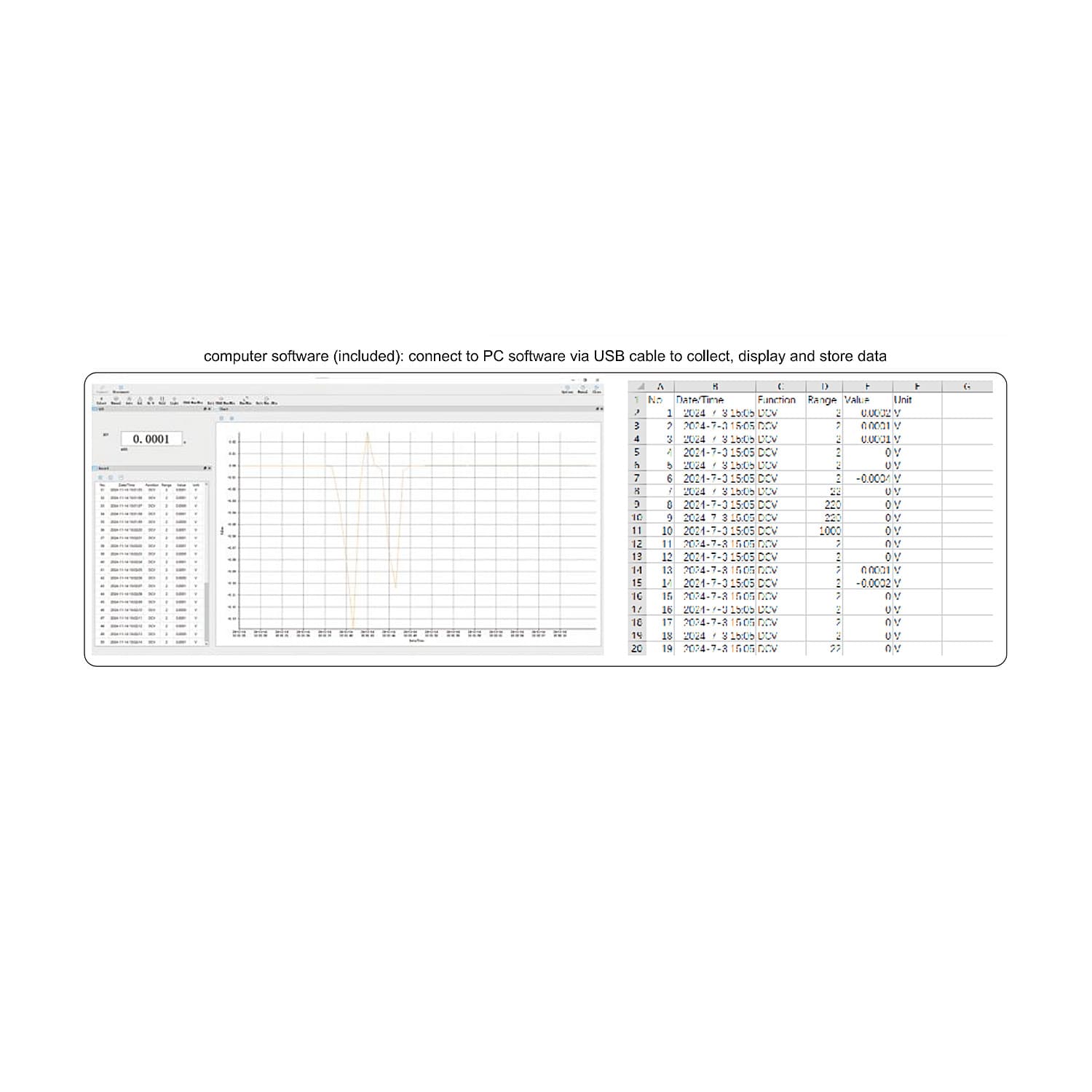

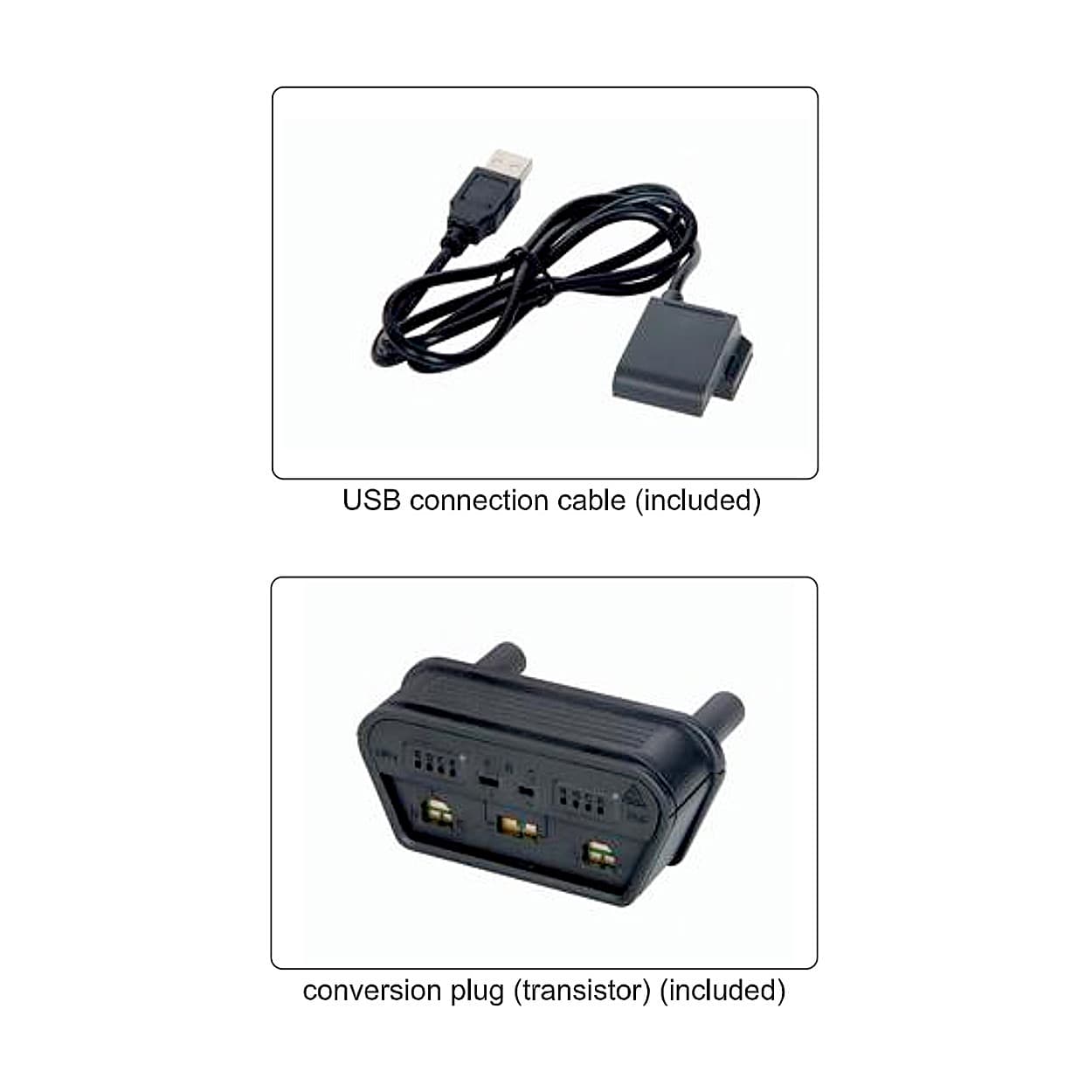

| USB Connection Cable | 1 pc |
| Conversion Plug (Transistor) | 1 Pc |
| Battery (AAA) | 4 Pcs |
| Display Counts | 22000 Counts |
|---|---|
| Transistor hFE | 1ß - 1000ß |
| Diode Test | 3V (Open Circuit Voltage) |
| Continuity Check | <50 ohm |
| Power Supply | 4 x 1.5V AAA Batteries |
| Dimensions (mm) | 186 x 89 x 49 mm |
