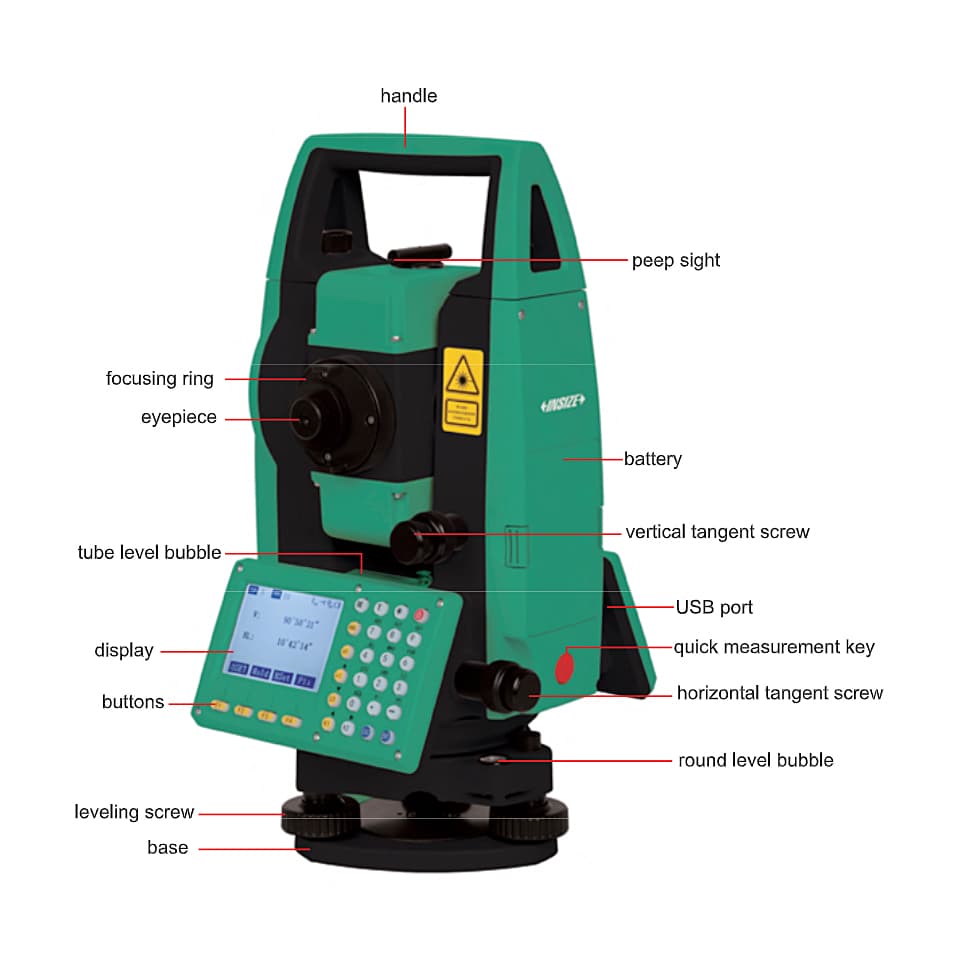

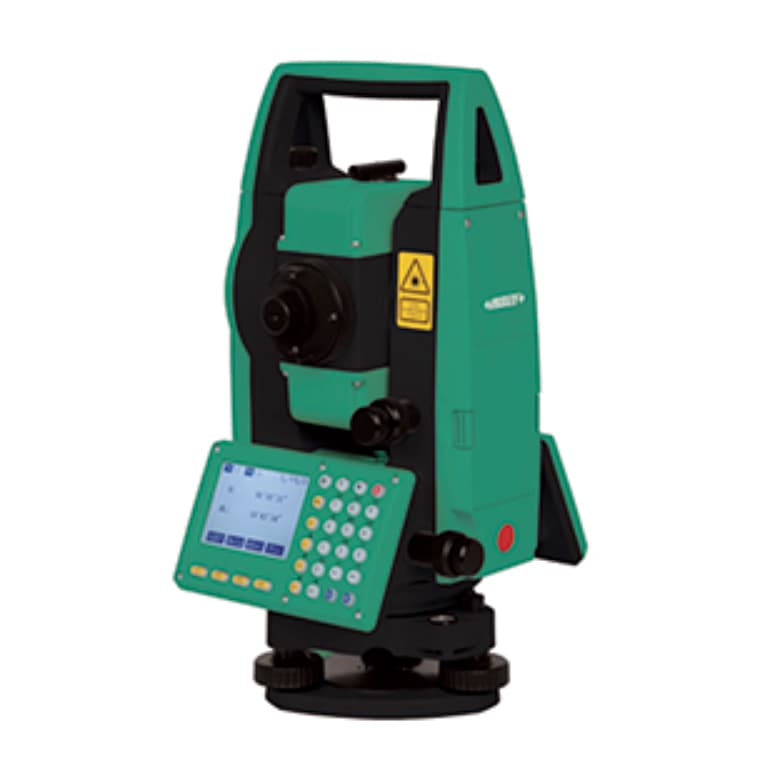

Insize 30X Basic Type Total Station, TSA-B33

• Data Output & IP55 Waterproof
• With rear intersection, setting out, overhang measurement, eccentricity measurement and other functions
• Widely used in surveying and mapping engineering, construction engineering and many other precise measurement fields
• Safe Class 3R laser rangefinder with prism-free range up to 1500m
• Absolute coded goniometric technology, horizontal and vertical discs are easy to measure with a counterpoise probe
• The biaxial liquid photoelectric electronic compensator automatically corrects instrument leveling errors
• Built-in temperature and air pressure sensor automatically corrects distance measurement errors
• Can revise the prism constant
• Good weather: overcast sky, light wind, no fog, visibility about 40km

Technical Data:

Distance Measurement with Cooperation Target	Measuring Range	prism:5000m Reflective patch (60 x 60 mm): 1000 Mtr
Accuracy	±(2+D/500)mm, D: Measured Distance, Unit: m
Measuring Time	Continuous Measurement: 0.25s Tracking Measurement: 0.1s Single Measurement: <1.0s
Prism-free distance measurement without a Cooperation Target	Measuring Range	1500m (Kodak Grey, 90% reflectivity)
Accuracy	0-300m: ±(3+D/500) mm 300-600m: ±(5+D/500) mm >600m: ±(10+D/500) mm, D: Measured Distance, Unit: m
Measuring Time	Continuous Measurement: 0.25s Tracking Measurement: 0.1s Single Measurement: <1.0s
Display	Screen Type	240 x 160 dot matrix high definition high brightness display
Screen Size	3.1 inch
Digital Display	99999999.9999 Mtr (max.) / 0.1 mm (min)

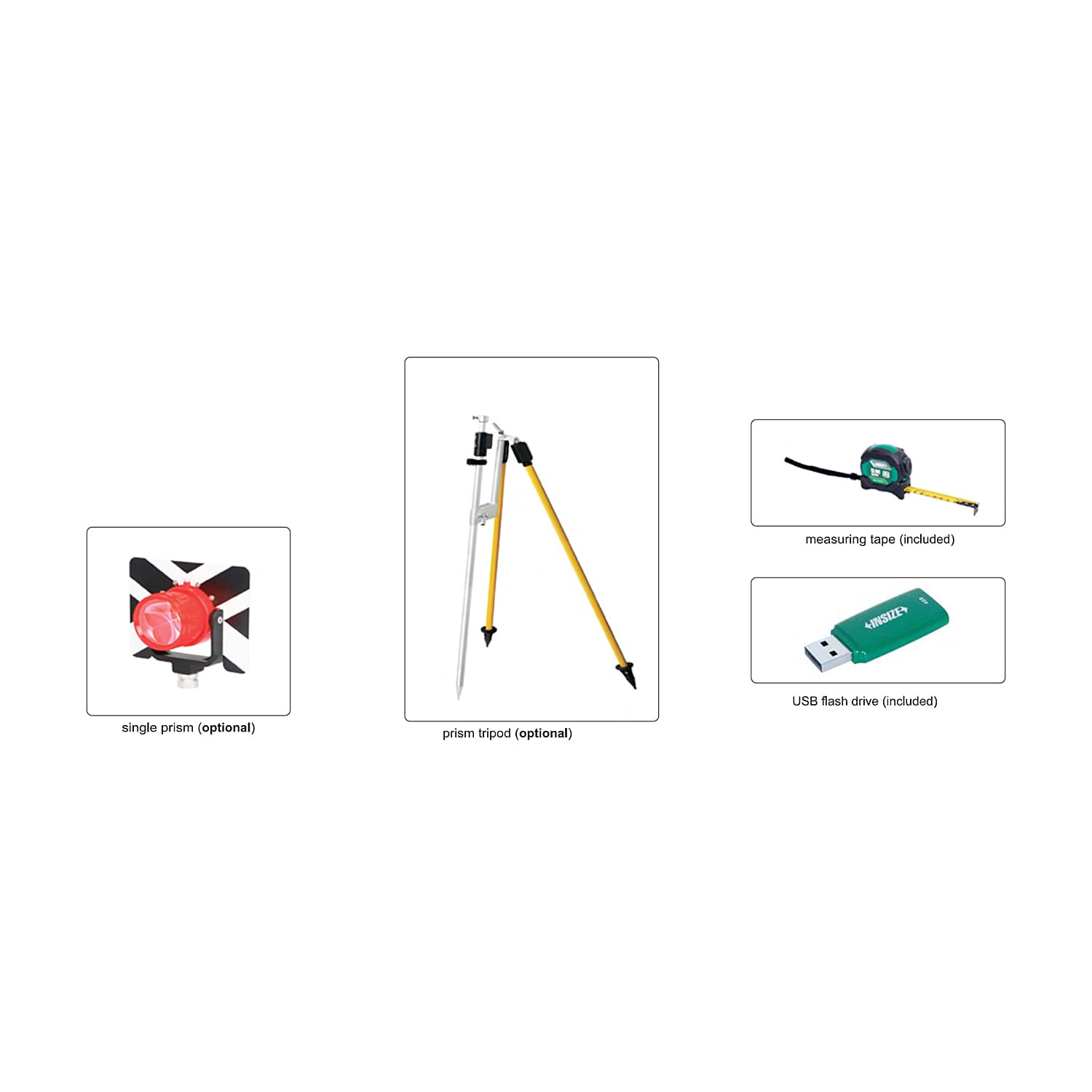

Standard Delivery:

Main unit	1 pc

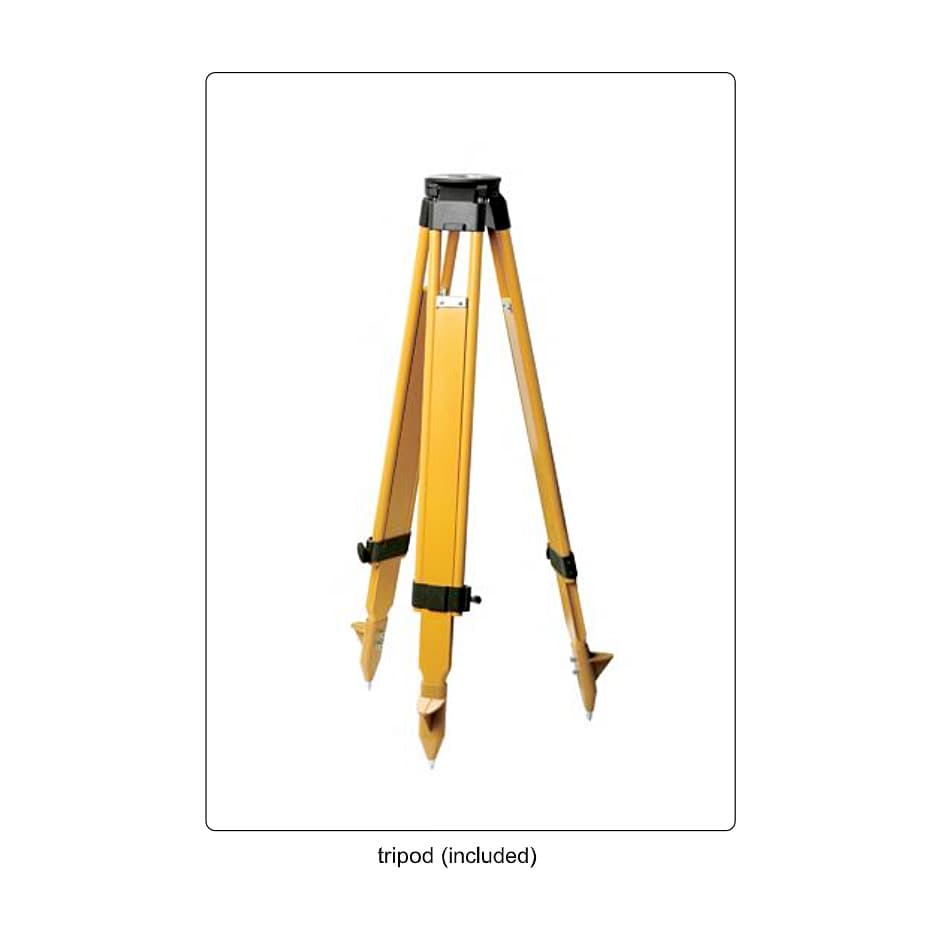

Tripod	1 pc
Power Adapter & Charging Cable	1 pc
Li-ion Battery	2 pcs
USB Flash Drive	1 pc
Measuring Tape	1 pc

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
