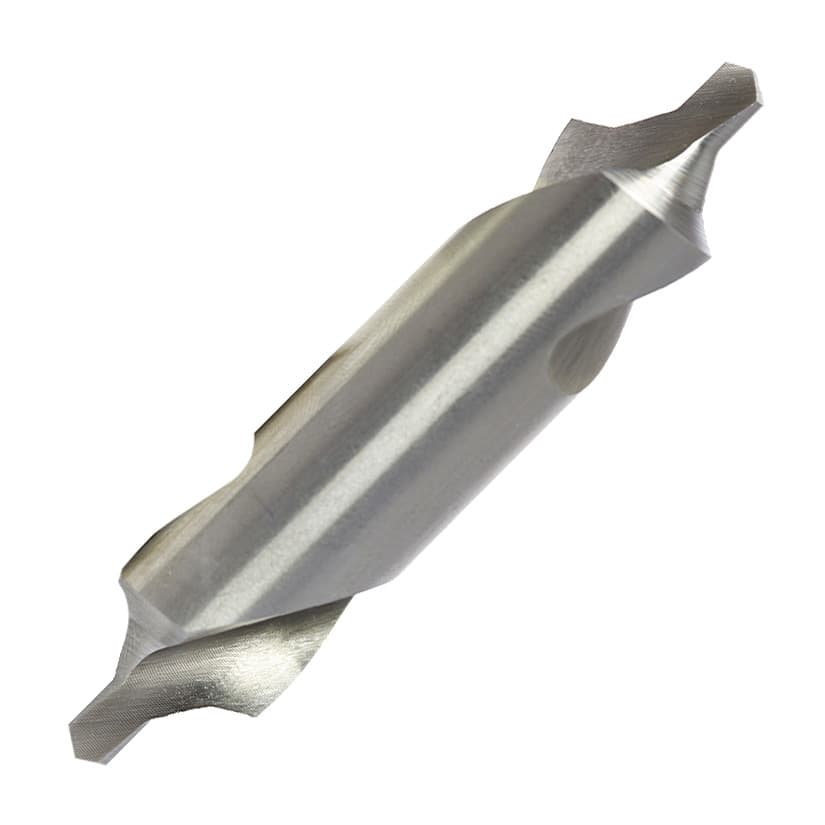

ITM 8.00 mm Pilot Dia. / 25 mm Body Dia. HSS Centre Drill - Type 'B'
Shop all ITM
SKU: CU.DR.CE.00056
Roll over the image to zoom in
Key Features
- Product Type: Centre Drills
- Pilot Dia: 8.00 mm
- Body Dia: 25 mm
- Series: Type 'B' Series
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,800 (Incl. of all taxes)
₹2,373 + ₹427 GST (18%)
MRP was MRP ₹4,315
Save 45%
3 Business Days
1
–
Download Product LeafletNot available
Download ITM CatalogueNot available
Download ITM CatalogueNot available
Highlights
ITM offers a wide range of HSS Drills. ITM drills produce accurate holes at any critical working conditions.
Specifications conform to:
- IS 6709 : 2002
- ISO 2540 : 1972
- BS 333 : 1986.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Pilot Dia | 8.00 mm |
|---|---|
| Body Dia | 25 mm |
| Series | Type 'B' Series |
| Overall Length (Max) | 103 mm |
| Overall Length (Min) | 97 mm |
| Pilot Length (Max) | 11.50 mm |
| Pilot Length (Min) | 10.10 mm |
| Material | High Speed Steel |
