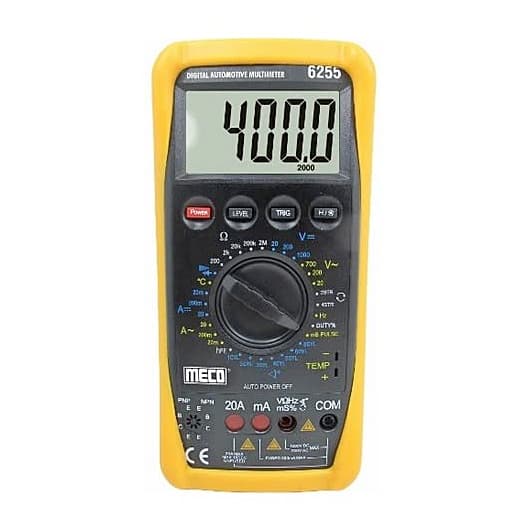

Meco 3-1/2 Digit / 2000 Count Digital Multimeter With Holestar, 6255

3½ Digits / 2000 Count Digital Multimeter With Holestar, Automatic terminal blocking mechanism, K Type Thermocouple, Temperature, RPM, Ignition Frequency, MS Pulse Width, Baclight, hFE (Transitor test), Diode Test,  Audible Continuity, Data Hold, and APO functions

Features & Benefits:

• Terminal Shutter Interlock Mechanism Prevents Wrong Opertions
• 11 Functions
• Heavy Duty Rubber Holster
• Data Hold, Auto Power Off
• Measurement of Duty, Ignition Frequency, Ms-Pulse Width, RPM & DWELL
• 3½ Digits
• 2000 Counts
• DC Voltage upto 1000V
• AC Voltage upto 700V
• DC Current upto 20A
• AC Current upto 20A
• Resistance upto 2MΩ
• Frequency upto 20KHz
• Duty Cycle 1% ~ 99%
• Pulse Width 0.1mS ~ 999.9mS
• Rotational Speed (RPM)
• Temperature
• hFE (Transistor Test)
• Diode Test
• Audible Continuity
• Automatic Terminal Blocking Mechanism
• Data Hold
• LCD Display with Backlight
• Holster
• Auto Power Off
• Low Battery Indication

  Electrical Specifications:

Ignition Frequency: 0.1Hz ~ 20KHz Accuracy: ±(1.5%+10)

Pulse Width: 0.1 ~ 999.9ms Accuracy: ±(1.5% + 10)

RPM: 2STR : 300 ~ 19999 rpm / 4STR : 600 ~ 19999 rpm Accuracy ±(3% + 5)

DC Voltage:20V / 200V / 1000V Accuracy: ±(0.5% + 3) on all except, ±(0.8% + 3) on 1000V

AC Voltage: 20V / 200V / 700V Accuracy: ± (1.0%  + 5 ) on all ranges except  ±(1.2% + 5) on 700V

DC Current:  20mA / 200mA / 20A Accuracy:  ±(1.5%+ 5) on 20mA / 200mA  ±(2% + 10) on 20A

AC Current :20mA / 200mA / 20A Accuracy: ±(2% + 5)  on 20mA / 200mA,  ±(3% + 10) on 20A

Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ Accuracy: ±(1% + 5) on 200Ω & ±(1% + 1) on 2KΩ / 20KΩ / 200KΩ / 2MΩ

Frequency: 2KHz / 20KHz Accuracy:±(1.5% + 10)

Duty Cycle:0.1% - 99.9% Accuracy: No

Temperature: -40 ~ 0°C / 0 ~ 400°C / 400 ~1000°C Accuracy: ±(5%+5)  on  -40 ~ 0°C,  ±(1% + 3) on 0 ~ 400°C, ± (2.0%  + 3dgt) on 400 ~1000°C

DWELL: 1 / 2 / 3 / 4 / 5 / 6 / 8 Accuracy: ±(3%+5)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
