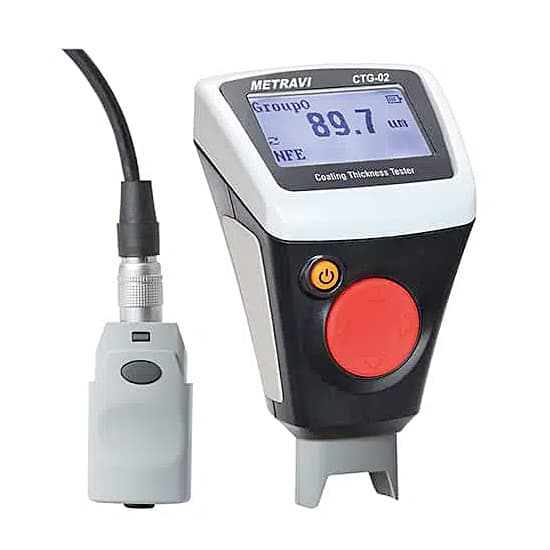

Metravi 2000um Coating Thickness Gauge With External Probe, CTG-02

• Measures coating Thickness on both Ferrous and Non Ferrous materials with interface cable & S/W

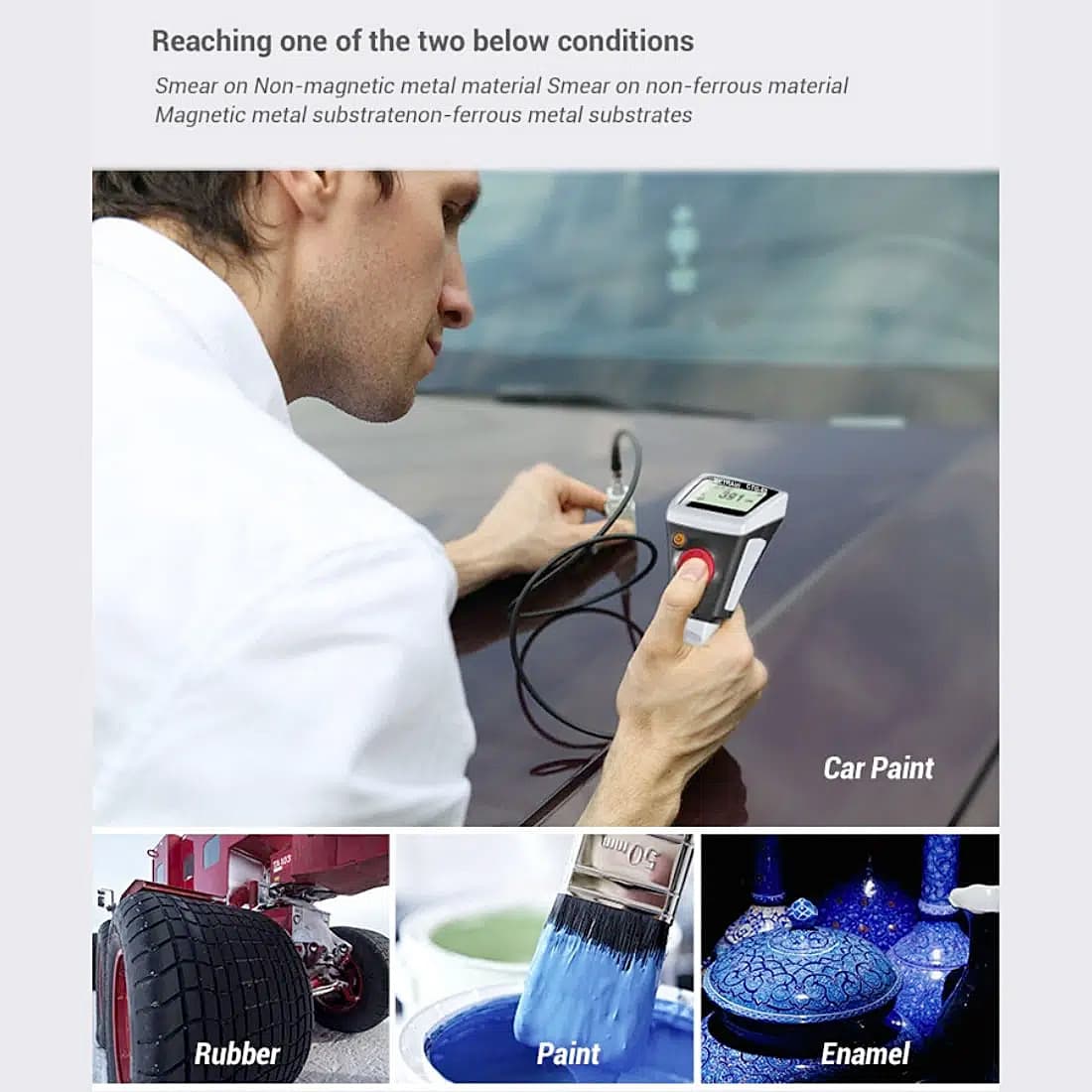

• Measured Coatings: Non-magnetic coatings (e.g. paint, zinc) on steel; Insulating coatings(e.g. paint, anodizing coatings)on no-ferrous metals
• Operating with MENU easily
• Memory for 2500 readings
• Delete single readings and all group readings easily
• Error indication
• Disable Auto-Power-off function via MENU setting
• Separate sensor with cable to be attached to the instrument.
• Disable Auto Power Off function via MENU setting.

Technical Data:

Type	Ferrous	Non Ferrous
Measuring Range	0 to 2000um / 0 to 78.7mils	0 to 2000um / 0 to 78.7mils
Tolerance Range	±2%+2um / ±2%+0.08 mils	±2%+2um / ±3%+0.08mils
Precision	0.1um / 0.01mils	0.1um / 0.001mils
Minimum Curvature Radius	1.5mm	3mm
Diameter of Minimum Area	7mm	5mm
Basic Critical Thickness	0.5mm	0.3mm
Minimum measurable thickness	0.5 mm	0.3mm
