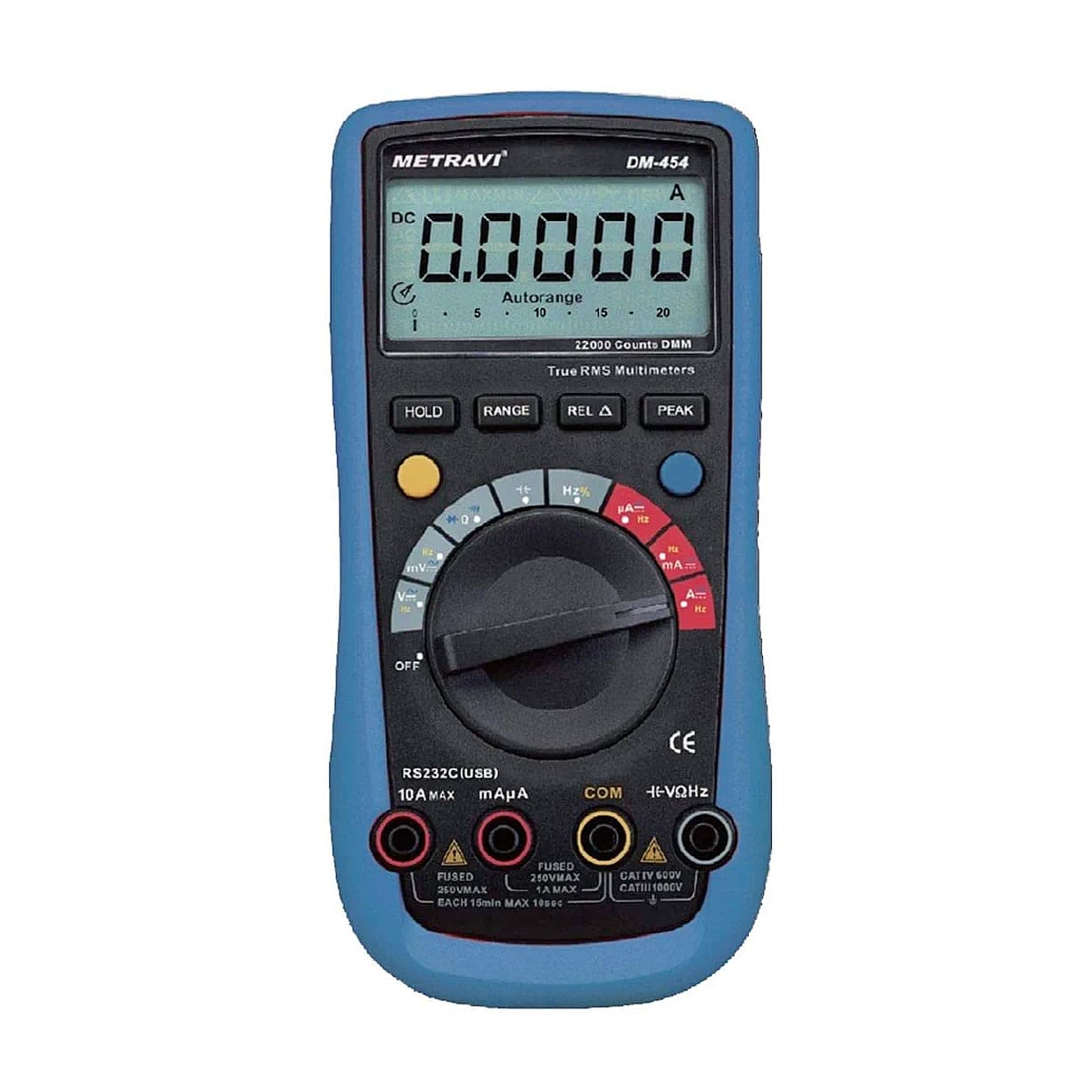

22000 Counts LCD, Data Hold, T-RMS, Double Moulded Case, AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance, Duty Cycle, Diode and Continuity Test. Digital Multimter Model DM-454 (True RMS) is an auto ranging multimeter.
The enclosure Structure design adopted advance “co-injection” technique in order to provide sufficient insulation. This Meter can measure AC/DC Voltage and Current, Resistance, Diode, Continuity Buzzer, Capacitance, Frequency, In addition to the conventional measuring functions, there is data hold, relative mode, peak measurement, low battery display,
Features:
- T-RMS Measurement
- Data Hold to Freeze the displayed data
- Peak Hold
- Relative Measurement
- Overload Indication
- Auto Ranging
- Auto Power Off
- Low Battery Indication
- Double Moulded Body
- Display: 22000 Counts LCD, with analog bar graph
- DC Voltage: 0 – 220mV/2.2V/22V/220V/1000V
- Accuracy: ± (0.1%+2)
- AC Voltage: 0 – 220mV/2.2V/22V/220V/750V T-RMS
- Accuracy: ± (0.8%+10)
- DC Current: 0 – 220uA/2200uA/22mA/220mA/10A
- Accuracy: ± (0.5%+10)
- AC Current: 0 – 220uA/2200mA/22mA/220mA/10A T-RMS
- Accuracy: ± (0.8%+10)
- Resistance: 0 – 220Ω/2.KΩ/202Ω/202KΩ/2.2MΩ/22MΩ/220MΩ
- Accuracy: ±(0.5%+10)
- Capacitance: 0- 22nF/220nF/2.2uF/22uF/220uF/2.2mF/22mF/220mF
- Accuracy: ±(3.0%+5)
- Frequency: 10 ~ 220MHz
- Accuracy: ± (0.01%+5)
- Duty Cycle: 0 – 99.9%
- Accuracy: ± 0.1%
- Diode Test, Audible Continuity Test
