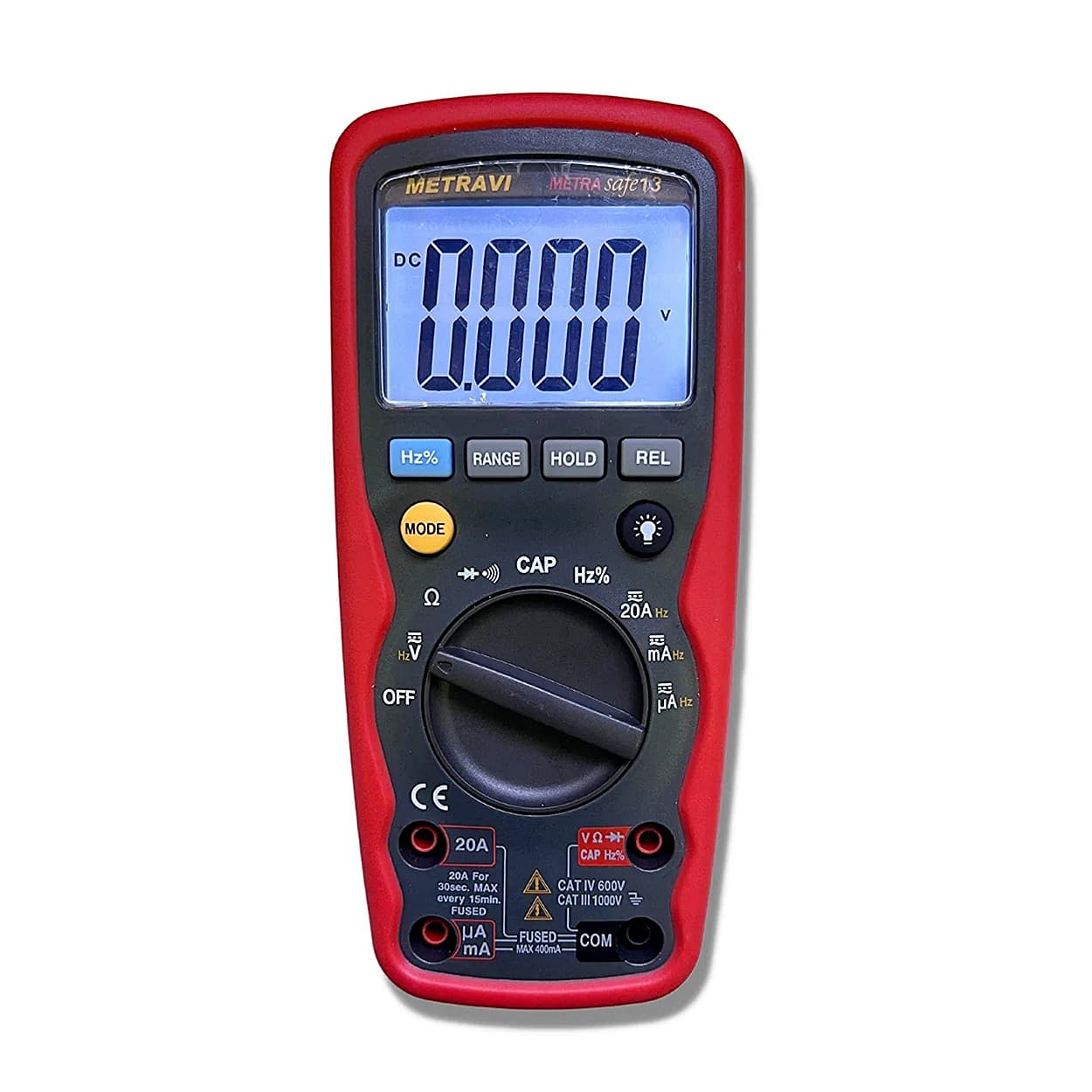

3-3/4 Digits, Backlit LCD, Autoranging, Fully protected, Data Hold, Relative, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Continuity and Battery Test. Confirms to CAT IV 600V.
Features:
- Overload Indication
- Low Battery Indication
- Fully Protected DMM
- 1200V DC/AC RMS Protection in Voltage Ranges
- 20A DC/AC RMS Protection in Ampere Ranges
- 600V DC/AC RMS Protection in Resistance, Capacitance, Frequency, Continuity and Diode Test Range
- Surge Protection of 8kV peak IEC61010
- “O” Ring Seal Body
- IP-67 Protection
- Data Hold to freeze displayed reading
- Relative Measuring facility
- Auto Power Off
- Display: 3-¾ Digits 4000 Counts Backlit LCD
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.5%
- AC Voltage: 0 -400mV/4V/40V/400V/1000V
- Accuracy: ± 1.2%
- DC Current: 0 – 400uA/4000uA/40mA/400mA/20A
- Accuracy: ± 1.0%
- AC Current: 0 – 400uA/4000uA/40mA/400mA/20A
- Accuracy: ± 1.5%
- Resistance: 0 – 400Ω/4kΩ/40KΩ/400kΩ/4MΩ/40MΩ
- Accuracy: ± 1.0%
- Capacitance: 0 – 4nF/40nF400nF/4uF/40uF/200uF
- Accuracy: ± 3.0%
- Frequency: 0 – 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99kHz/999.9kHz/9.999MHz
- Accuracy: ± 1.2%
- Duty Cycle: 0.1% – 99.9%
- Accuracy: ± 1.2%
- Diode Test and Audible Continuity Test

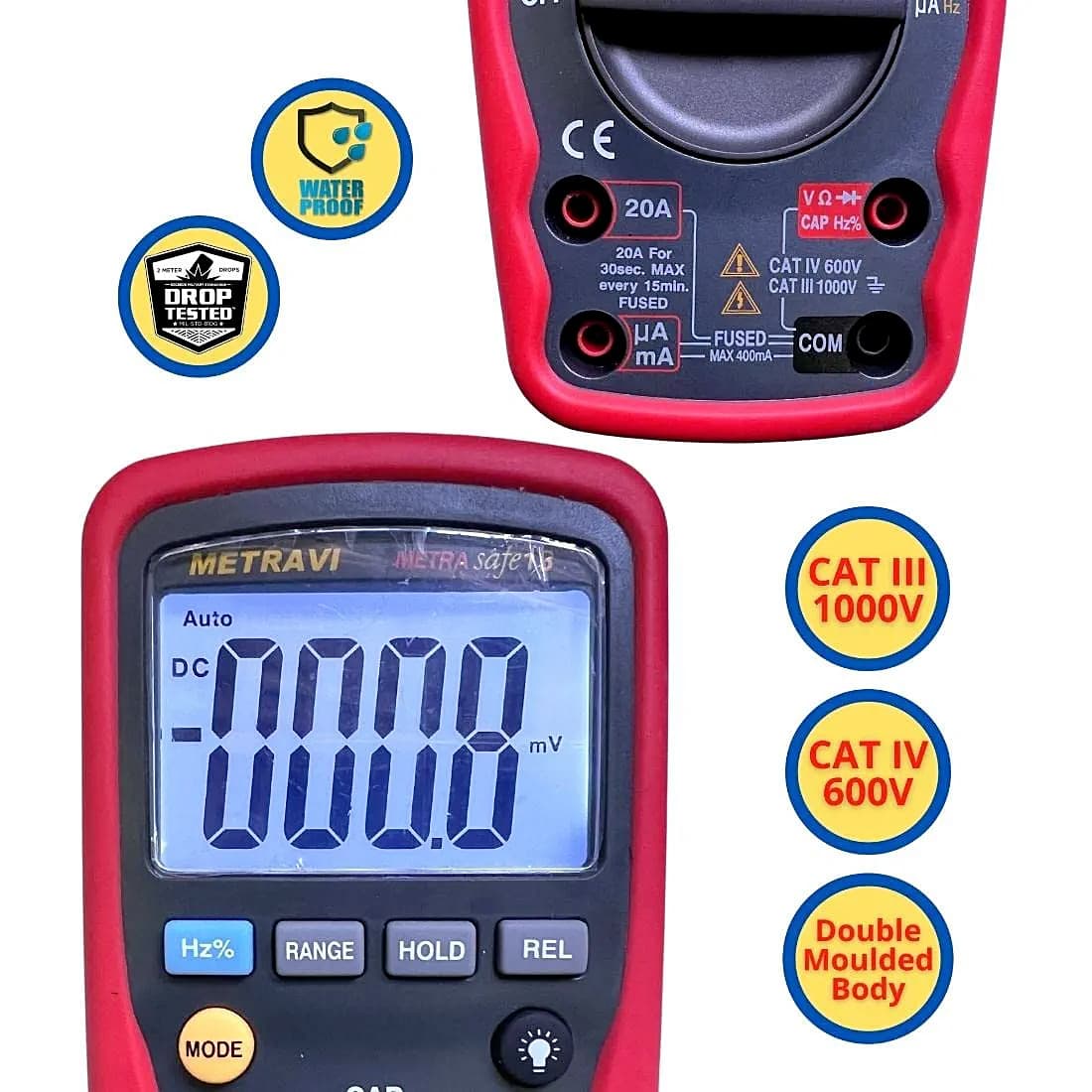

- Confirms to CAT-III 1000V, CAT IV 600V, EN61010-1, CE.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
