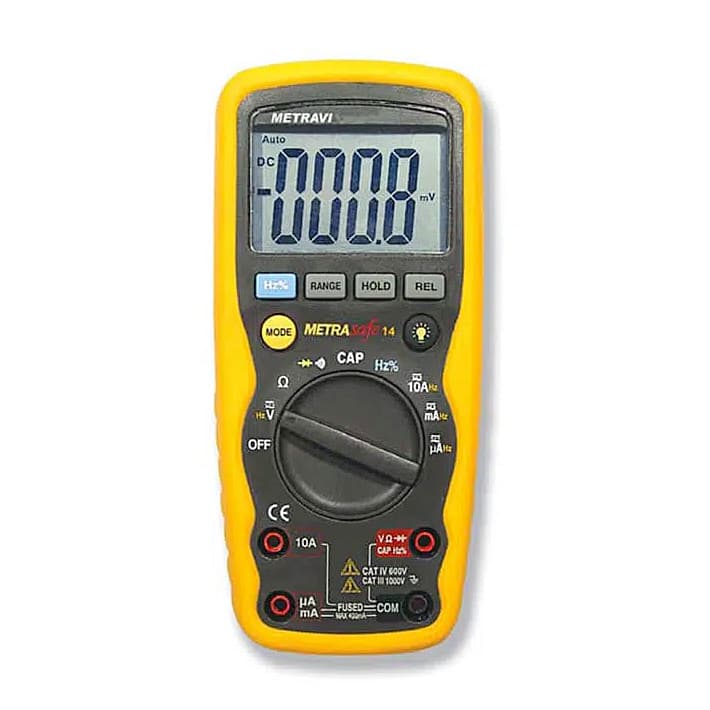

3-3/4 Digits, Backlit LCD, Autoranging, Fully protected, Data Hold, Relative, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Continuity and Battery Test. Confirms to CAT IV.
Features:
- Fully Protected DMM 1200V DC/AC RMS Protection in Voltage Ranges
- 20A DC/AC RMS Protection in Ampere Ranges
- 600V DC/AC RMS Protection in Resistance, Capacitance, Temperature, Frequency, Diode Test and Continuity Test Range
- Surge Protection of 8kV peak IEC61010
- “O” Ring Seal Body
- IP-67 Protection
- Dust & Water Proof
- Overload Indication
- Low Battery Indication
- Data Hold to freeze displayed reading
- Relative Measuring facility
- Auto Power Off
- Auto Ranging
- Display: 3-¾ digits 3999 Counts Backlit LCD
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.5%
- AC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 1.2%
- DC Current: 0 – 400uA/4000uA/40mA/400mA/20A
- Accuracy: ± 1.0%
- AC Current: 0 – 400uA/4000uA/40mA/400mA/20A
- Accuracy: ± 1.5%
- Resistance: 0 – 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Accuracy: ± 1.0%
- Capacitance: 0 – 4nF/40nF/400nF/4uF/40uF/200uF
- Accuracy: ± 3%
- Frequency: 0 – 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
- Accuracy: ± 1.2%
- Duty Cycle: 0.1% ~ 99.9%
- Accuracy: ± 1.2%
- Temperature: -20°C to -760°C / -4°F to +1400°F
- Accuracy: ± 3%
- Diode Test & Audible Continuity Test
- Confirms to CAT-III 1000V, CAT IV 600V, EN61010-1, CE.
