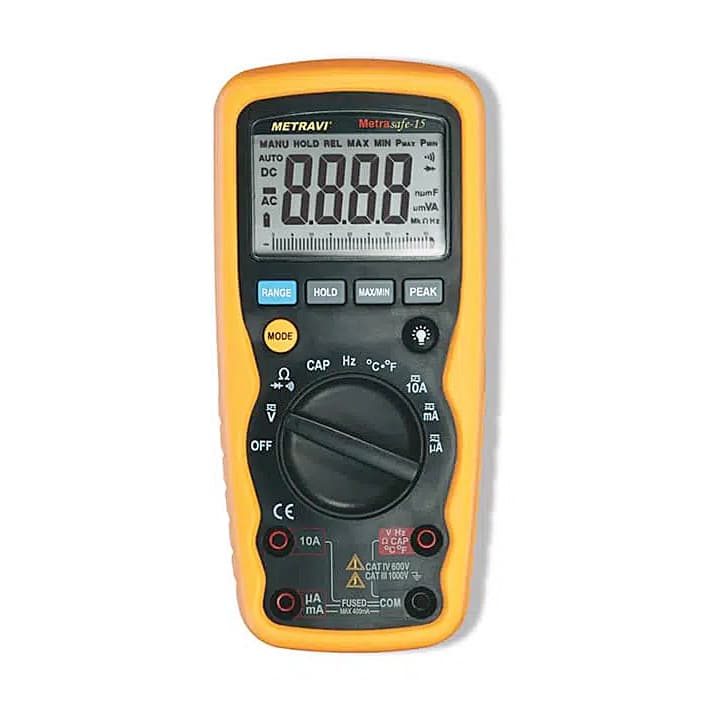

3-3/4 Digits, Analogue Bargraph, Backlit LCD, Autoranging, Fully protected, Data Hold, Max/Min, Peak Hold, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Diode and Continuity.
Features:
- Fully Protected DMM
- 1200V DC/AC RMS Protection in Voltage Ranges
- 20A DC/AC RMS Protection in Ampere Ranges
- 600V DC/AC RMS Protection in Resistance, Capacitance, Frequency, Temperature, Continuity and Diode Test Ranges
- Surge Protection of 8kV Peak IEC61010
- “O” Ring Seal Body
- Dust & Water Proof IP-67 Protection
- Peak Hold
- Relative Measurement
- Low Battery Indication
- Overload Indication
- Max / MIN Recording
- Auto Power Off
- Display: 3-¾ Digits 4000 Counts Backlit LCD with Analogue Bargraph
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.5%
- AC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.8%
- DC Current: 0 – 400uA /4000uA/40mA/400mA/20A
- Accuracy: ± 1.2%
- AC Current: 0 – 400uA/4000uA/40mA/400mA/20A
- Accuracy: ± 1.5%
- Resistance: 0 – 400Ω/4kΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Accuracy: ± 0.8%
- Capacitance: 0 – 4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF
- Accuracy: ± 3%
- Frequency: 0 – 4KHz/40KHz/400KHz/40MHz
- Accuracy: ± 1.2%
- Temperature: -20°C to +760°C / -4°F to 1400°F
- Accuracy: ± 3%
- Diode Test and Audible Continuity Test
- Confirm to CAT-III 1000V, CAT IV 600V,EN61010-1,CE
