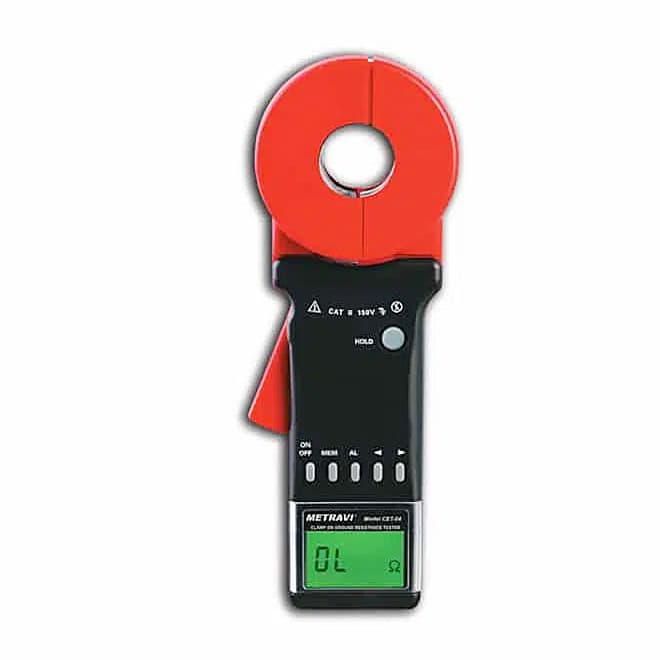

The Metravi CET-04 Clamp-on Ground Resistance Testers has:
- Self-test facility. No need to wait a long time to boot. Ready to use immediately after being switched on.
- Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, fully intelligent.
- Handheld device, easy to carry. New design, panel operation with 6 buttons, better performance. Loud sound and light alarms; “beep—beep–beep –” alarm sound.
- Improved interference signal recognition indicator. Improved anti-jamming capability and test stability. Data storage: 99 Units. Wider range: 0.01Ω-1500Ω.
- Lower power consumption: Maximum operating current is from 0.0mA to 20A. Are widely used for grounding resistance measurement in power, telecommunications, meteorology, oil fields, construction industries and electrical equipments.

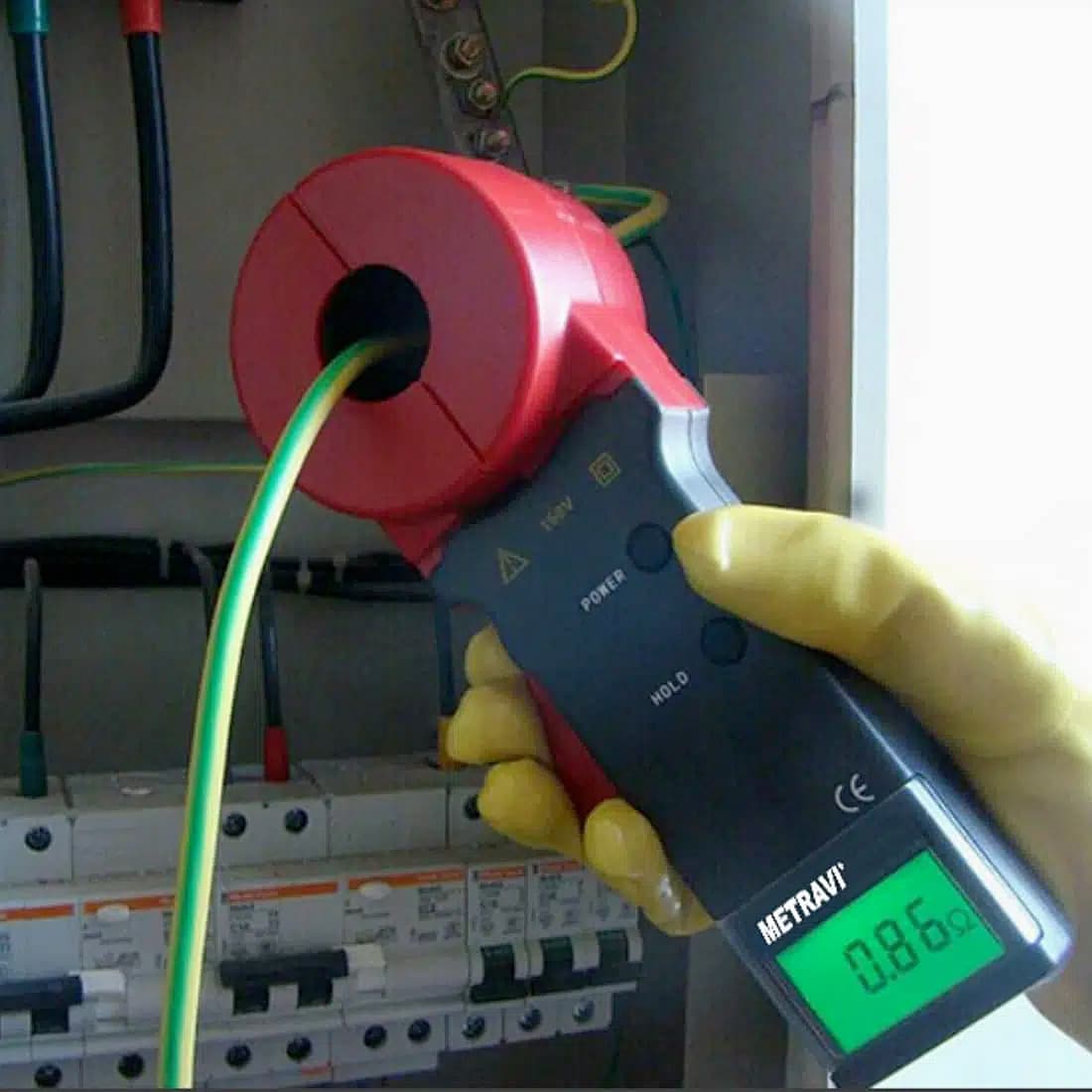

- In the measurement of a grounding system with loop current, it does not require breaking down the grounding wire and needs no auxiliary electrode.
- Safe, fast and simple to use.
- Can measure ground faults beyond the reach of traditional methods and can be applied in situations not in the range of traditional methods.
- Can measure integrated value of the grounding body resistance and the grounding lead resistance.
- Also able to measure leakage current and neutral current in the grounding system.
Features:
- Display: 4 digit Backlit LCD
- Resistance Range: 0.01Ω to 1500Ω
- Resolution: 0.01 Ohms
- Current Range: 0.0mA – 20.0A
- Auto Ranging
- Storage of Measured Data: 99 Data
- Setting of Resistance Alarm Critical Value: 1 – 199 Ohms
- Data Hold, Auto Power Off
- Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032
- Double insulation, pollution degree: class II
- Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
- IP30, Group III equipment as per EN 60529 Ed 92 IK04, as per EN 50102 Ed 95
- Span of Jaw : 32mm
- Battery type: 4 ×1.5V alkaline LR6 AA battery (not included)
- Low battery indicationInternal consumption: <50mA
- Auto Power Off: after 5 minutes of being idle
- Display: 4 digits 9999 counts Backlit LCD with annunciators
- Memory size: 99 Units of Reading
- Data upload interface: RS232 (Optional)
- Weighted around 1120 grams (including batteries)
