Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27

This is a 6000 counts backlit LCD display, Auto-Ranging T-RMS Multimeter with 61 Segment Analogue Bar-graph and is a best fit for all applications regarding electrical motors. This IP67 water and dust proof instrument can be used for Variable Frequency Drive (VFD)measurements and also measures Ghost Voltage (Lo-Z).

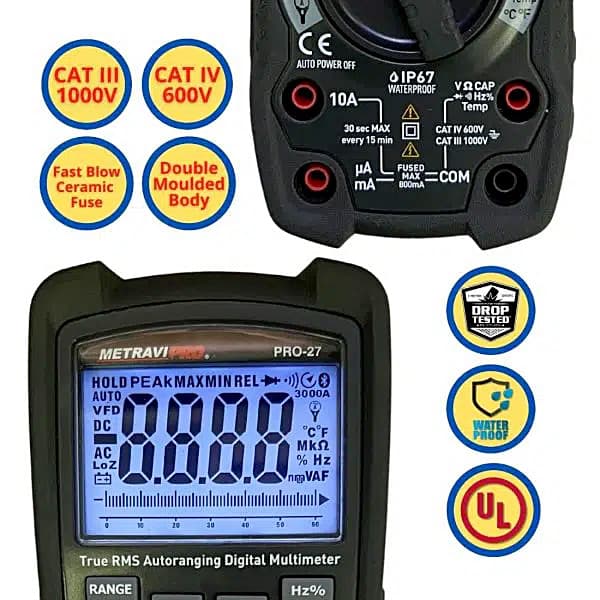

One press of a button and you can toggle between Voltage-Frequency & Current-Frequency.Features Data Hold, Peak Hold and Relative Measurement facilities. It has Auto Power-Off to save battery life along with Low Battery indication as well. Confirms to CATIII 1000V and CATIV 600V

Features:

• Enclosure : Double Moulded, Waterproof
• Shock (Drop Test) : 6.5 feet (2 meters)
• Diode Test : Test Current of 0.9mA maximum, open circuit voltage approx 3.2V DC typical
• Continuity Check : Audible signal will sound if the resistance is less than 50W (approx) test current <0.35mA
• Input Impedance : > 10Mohm VDC & >10MOhm VAC AC
• Response : True RMS
• ACV Bandwidth : 45Hz to 1KHz
• Crest Factor : ≤ 3 at full scale up to 500V, decreasing linearly to ≤1.5 at 1000V
• Display : 6000 Counts back-lit liquid crystal with bar-graph
• Over Range Indication : “OL” is displayed
• Auto Power Off : 15 minutes (approximately) with disabling feature
• Polarity : Automatic (No indication for positive): Minus (-) sign for negative
• Measurement Rate : 2 times per second, nominal
• Peak : Captures peaks> 1ms
• Low Battery Indication : Symbol is displayed if battery voltage drops below operating voltage

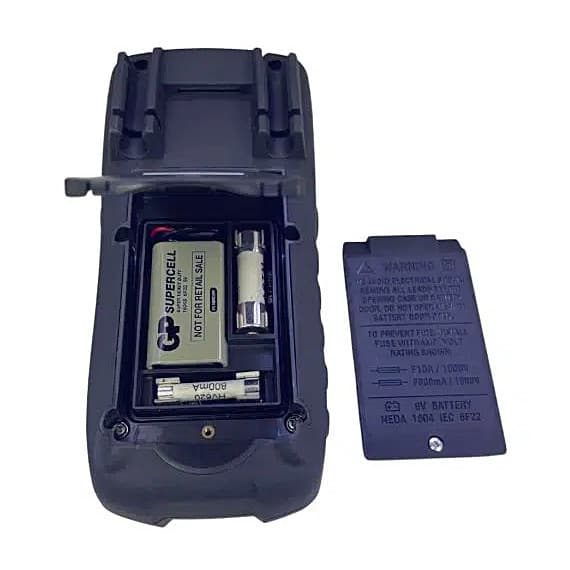

• Battery : One 9 volt (NEDA 1604) battery
• Fuses : mA. µA ranges: 0.8A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow
• Operating Temperature : 5 to 40°C (41 to 104°F)
• Storage Temperature : -20 to 60°C (-4 to 140°F)
• Operating Humidity : Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
• Storage Humidity : <80%
• Operating Altitude : Operating Altitude
• Heavy Duty Industrial T-RMS Multimeter
• VFD (Variable Frequency Drive) Measurement up to 700V AC
• AC Measurement Bandwidth 1kHz
• 60 segment Analogue Bargraph
• Peak Hold function
• T-RMS Auto Ranging
• Relative measurement
• Double-injection moulding
• IP67 waterproof, dust-proof
• 2 metres shock-proof
• Fast-blow Ceramic Fuse
• UL listed
• Warranty is one year against manufacturing defects
