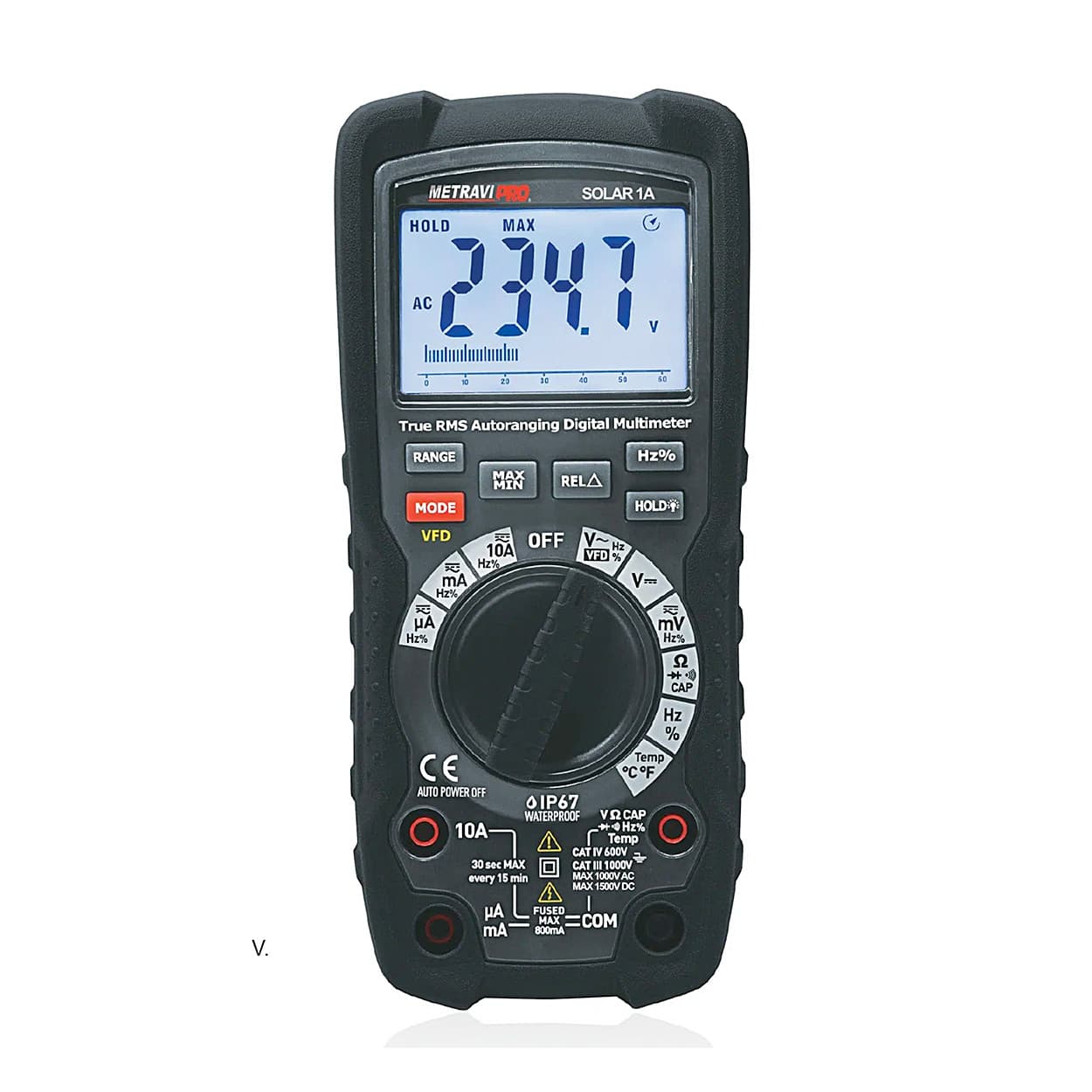

Metravi 6000 Counts / 1500V Digital TRMS Auto-Ranging Multimeter, Pro Solar-1A

The Metravi PRO Solar-1A is a versatile hand-held, Auto-Ranging Multimeter, providing T-RMS measurements, therefore being useful for all kinds of applications. The instrument measures AC/DC Voltage, AC/DC Current, Resistance, Low Voltage and Power Frequencies, Capacitance, Temperature, Diode Test and Audible Continuity Test. The back-lit, large, LCD Display with 6000 Counts not only gives it an advantage to use in poorly-lit areas, it also enables high resolution readings for larger ranges.

The 1500V DC measuring range makes it useful for Solar Applications specifically. The IP67 protection helps in protecting the instrument during outdoor applications and makes it water and dust proof. The VFD function, makes it useful for measurements in variable frequency drives. A click of a button helps you toggle between measured voltage and frequency & measured current and frequency.

Safety:

This meter is intended for origin of installation use and protected, against the users, by double insulation per EN61010-1 and IEC61010-1, 2nd Edition (2001) to Category IV 600V and Category III 1000V; Pollution Degree 2. The meter also meets UL 61010-1, 2nd Edition (2004), CAN/CSA C22.2 No. 61 010 -1, 2nd Edition (2004). and UL 610108-2-031, 1st Edition (2003).

Features:

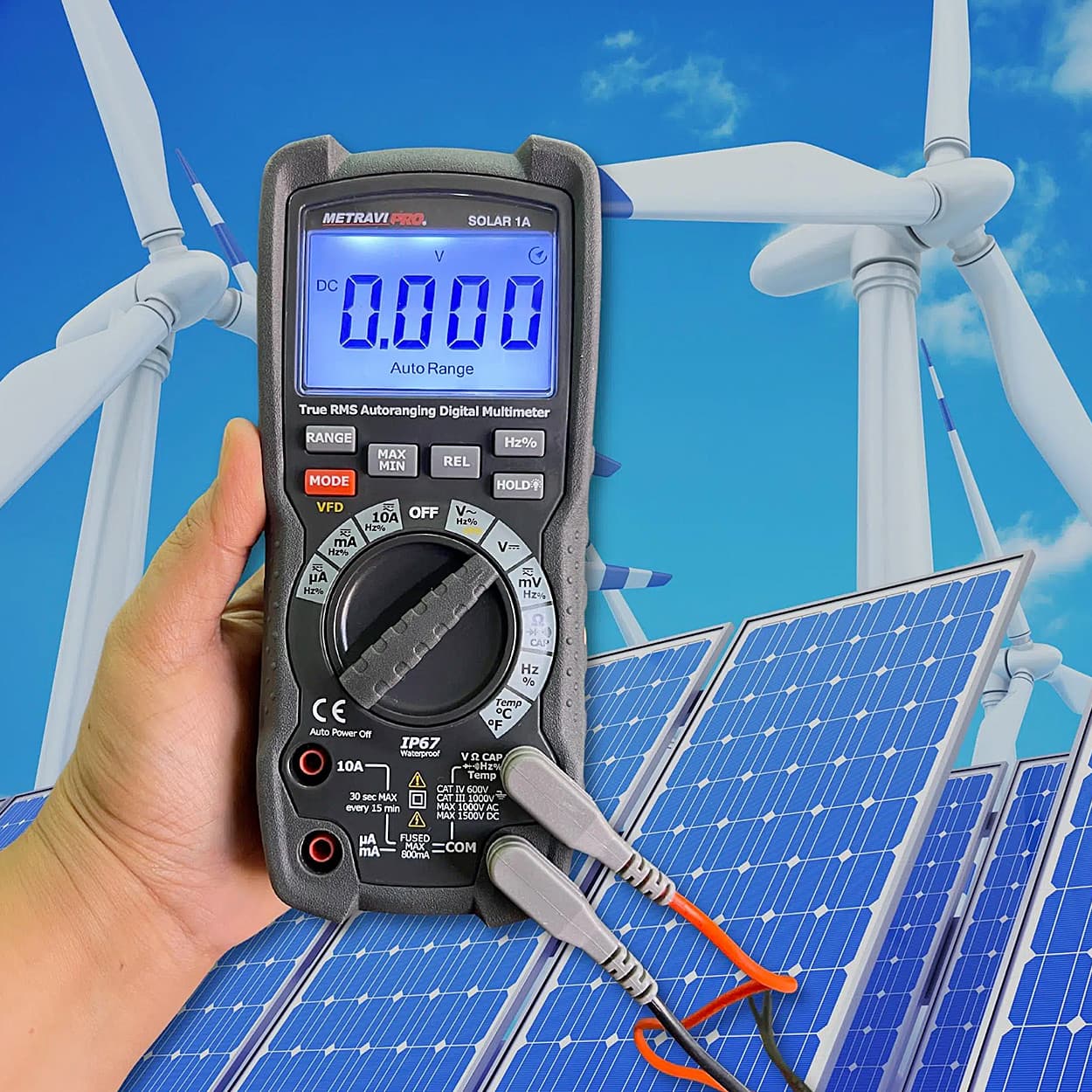

• 1500V DC Measurement for Solar and PV Applications
• T-RMS
• Auto-Ranging Multimeter

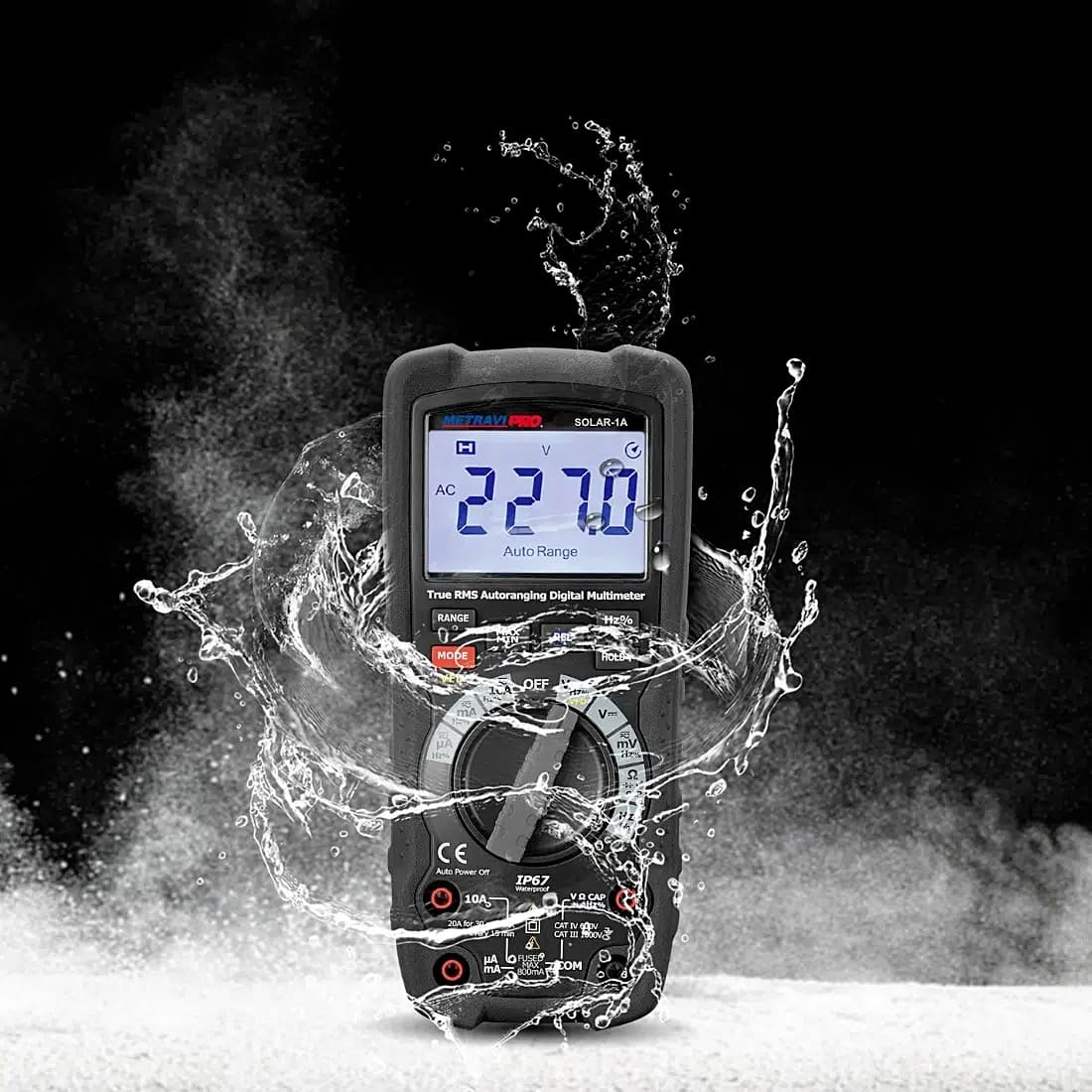

• IP67 Standard : Water and Dust Proof
• Double-moulded, Waterproof 2 meters (6.5 feet)
• VFD Function
• MAX / MIN Records
• Relative Measurements
• Data Hold
• Overload Indication
• Low Battery Indication
• 6000 Counts
• Back-lit LCD Display
• Auto Power-off with disabling feature

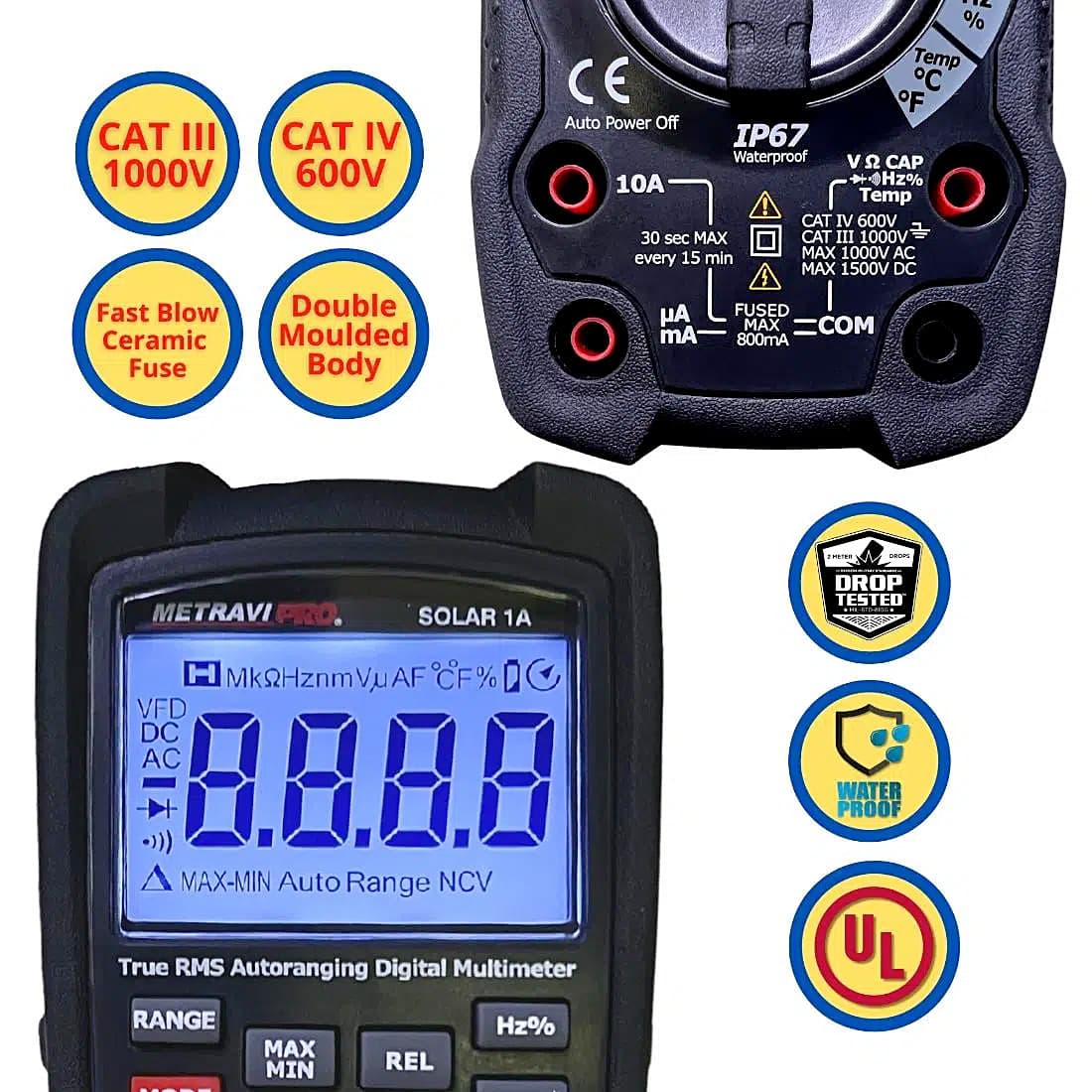

• Confirms to CAT IV 600V, CAT III 1000V
• Fast Blow Fuse Protection :mA/μA ranges: 0.8A/1000V Ceramic Fast Blow; A range: 10A/1000V Ceramic Fast Blow
• No need to open-up the instrument for fuse replacements
• Enclosure Shock (Drop Test)
• Diode Test & Continuity Check
• Input Impedance > 10MW VDC & >10MW VAC
• 9V Battery-operated
• UL listed
• CE Certified, CAT-III 1000V, CAT-IV 600V
• Confirms to UL-61010-1 / CSA 61010-1 / EN-61010-1 / IEC-61010-1
• DC Voltage: 0-60m / 600m / 6 / 60 / 600 /1500V
• Accuracy: ±0.5% + 5 digits
• AC Voltage: 0-60m / 600m / 6 / 60 / 600 /1000V T-RMS
• Accuracy: ±0.8% + 3 digits
• VFD: 150.0 to 600V
• DC Current : 600u / 6000u / 60m / 600m / 6 / 10A
• Accuracy: ±1.0% + 3 digits
• AC Current : 600u / 6000u / 60m / 600m / 6 / 10A T-RMS
• Accuracy: ±1.5% + 3 digits
• Resistance: 0-600 / 6k / 60k / 600k / 6M / 60MΩ
• Accuracy: ±0.8% + 2 digits
• Capacitance: 0-99.99n / 999.9n / 9.999u / 99.99u / 999.9u / 9.999m / 99.99mF
• Accuracy: ±4.0% + 5 digits
• Frequency: 0-9.999Hz / 99.99Hz / 999.9Hz / 9.999k / 99.99k / 999.9k / 9.999MHz
• Accuracy: ±0.1% + 4 digits
• Duty Cycle: 0.1 to 99.9%

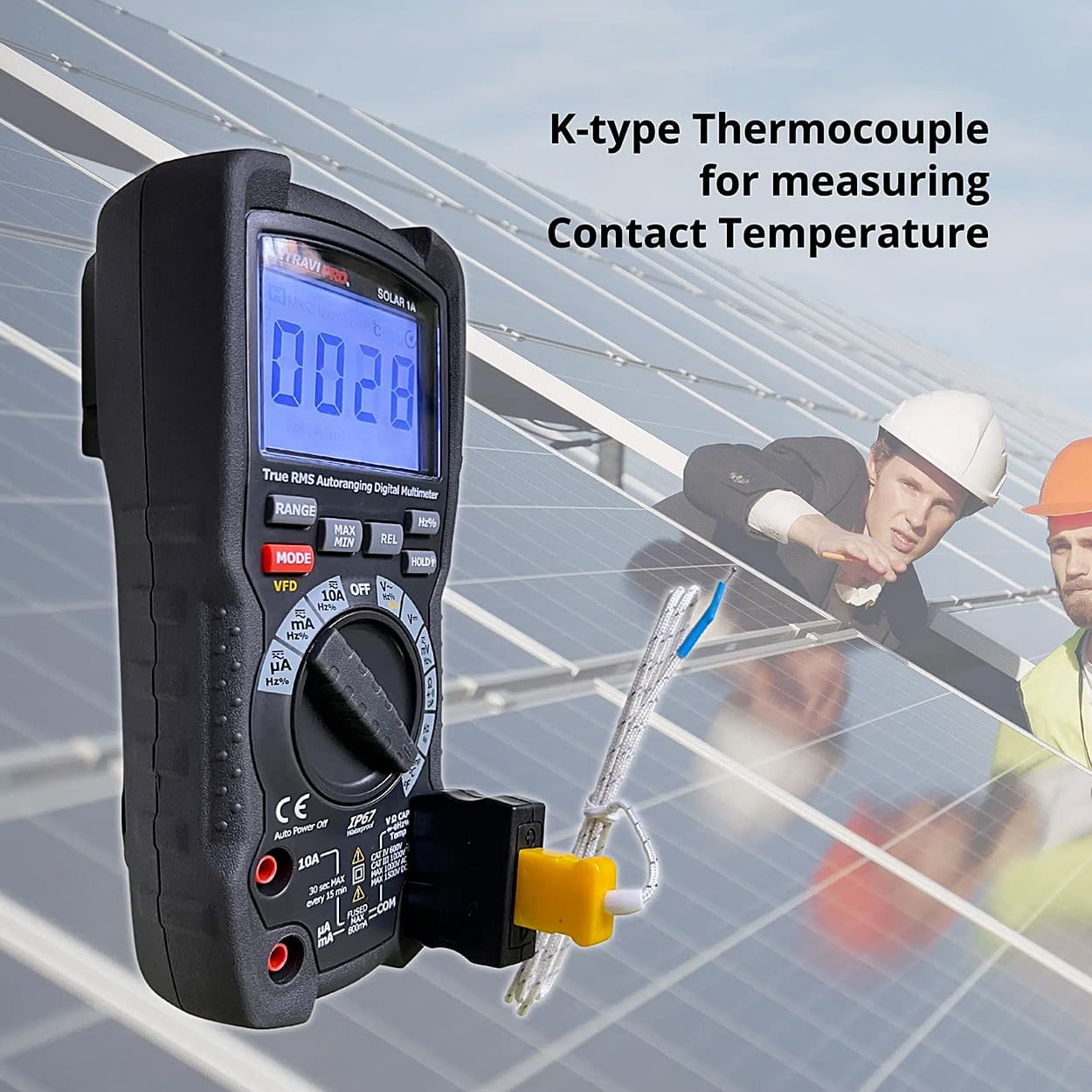

• Temperature: -40° to 1000°C
• Accuracy: ±3%
