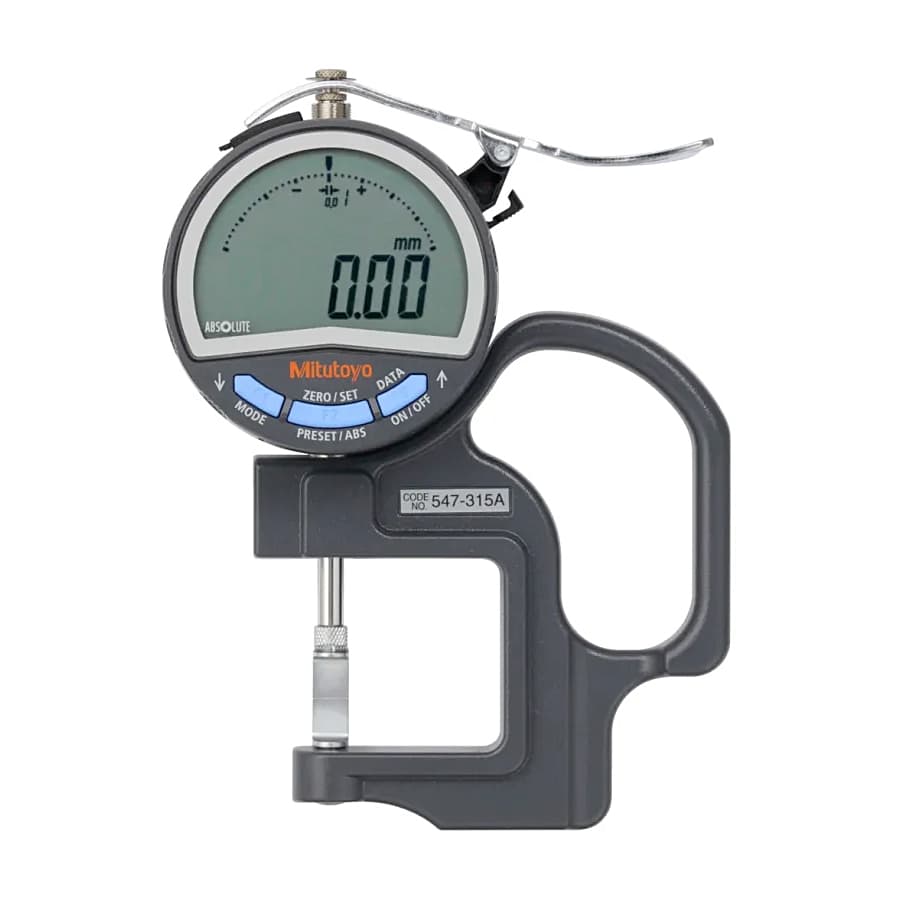

Mitutoyo 0 - 10 mm Blade Type Absolute Digital Thickness Gauge, 547-315A

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with Blade contact points.

Features:

• Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
• Electrostatic capacitance type absolute linear encoder
• Functions with indicator ID-C No.543.0-710.0BS
• Blade steel contact point

Functions:

• ABS / INC (INC ZERO)
• Analog bar resolution selection
• Analog bar resolution switchable
• Auto Power OFF setting
• Calculation function (with formula)
• Calibration warning function
• Counting direction switchable
• Customizing keys
• DATA/HOLD
• Digimatic data output
• Digimatic S1 Bidirectional interface
• Function lock
• GO/±NG judgement
• Inch/Metric switchable
• MAX/MIN/RANGE
• ON/OFF
• Alarm (Low Voltage, Setting Errors, Sensor Error, Display Overflow a.s.o.)

Package Content:

• Digital Thickness Gauge
• CR2023 battery
• battery lid opener
• spindle lifting lever 21AZB149
