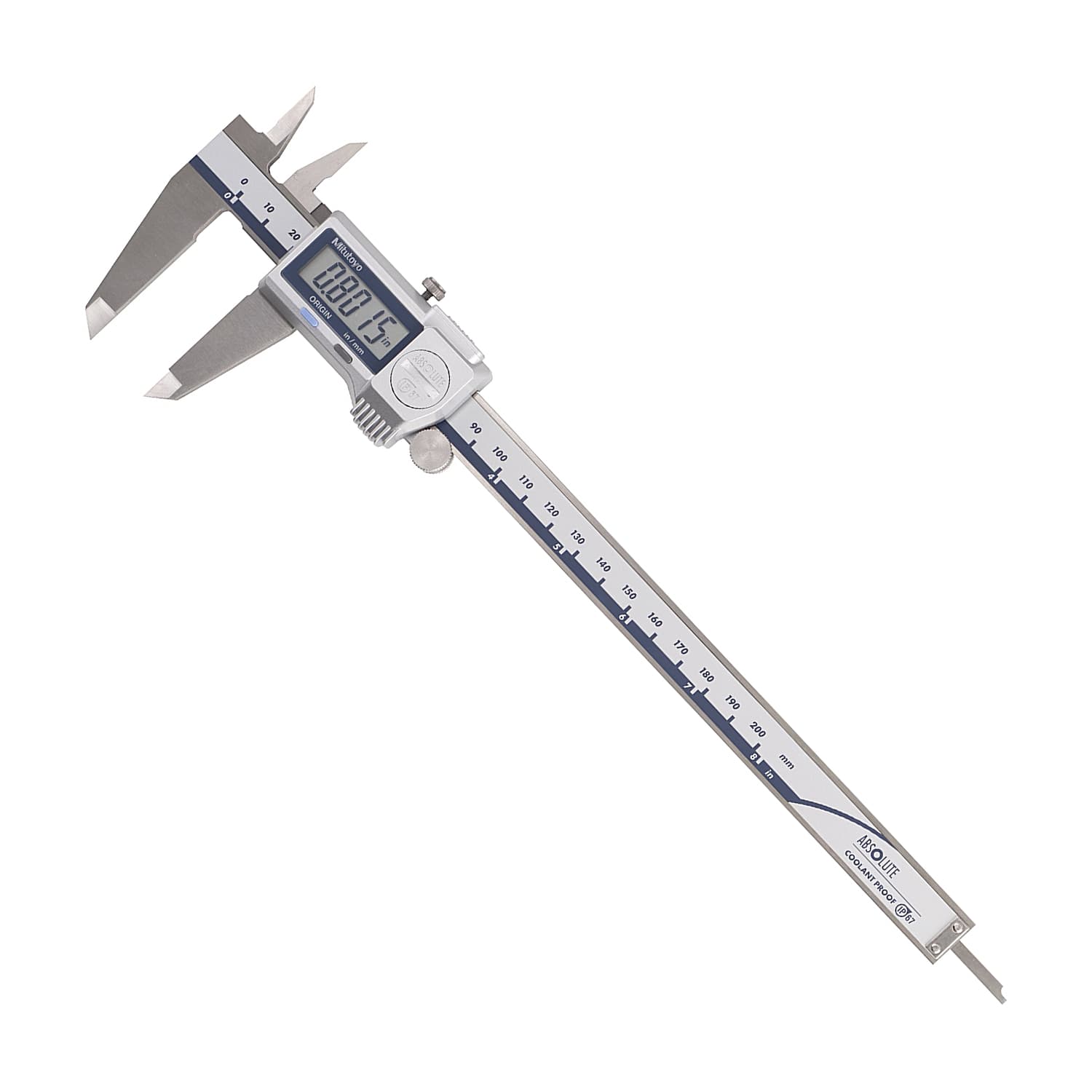

Mitutoyo 200 mm / 8 inch Absolute Digital Caliper with SPC Data Output (IP67 Coolant-Proof), 500-763-20

COOLANT PROOF is the universal term of Mitutoyo Digimatic Small Tool Instruments that are free from measurement error and physical deterioration due to routine exposure to water, cutting oil or coolant. This high performance is achieved by using encoders that are inherently immune to contamination, where exposure is inevitable, combined with comprehensive sealing techniques and extremely oilresistant materials to guarantee a long working life under normal operating conditions..

Features:

• Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
• It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
• ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
• Can be used in workshop conditions exposed to coolant, water, dust or oil.
• Easy to use - no need to wipe or clean the scale.
• Advanced design.
• Character height increased from 7.4 mm to 9.0 mm for improved readability.
• Redesigned battery cover eliminates the need for a screwdriver.
• Incorporates absolute measurement system.
• Automatic power-on/off.
• Supplied in fitted plastic case

IP67 protection level:

Level 6: Dust-tight No ingress of dust

Level 7: Protected against the effects of temporary immersion in water. Ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed 1 meter in water under standardized conditions of pressure and time (30 min.).

Functions:

• Auto Power OFF after 20 min. non use
• Low voltage alarm
• ORIGIN (ABS-Zero)
• Data Output
• Thumb roller



Accurate Measurements Our digital calipers provide precise inside and outside measurements, with accuracy you can count on every time.

Reliable Operation in Many Environments A Mitutoyo digital caliper ensures accurate measurements, even when flexible maneuvering around obstructions is needed. Two models offer options for both internal and external measurements.

Versatile Values Digital calipers provide versatile ID measurements for holes, diameters, groove thickness, tube thickness and hard-to-reach dimensions, with error-free LCD readings.

Built-in ABS (absolute) scale means that these calipers are ready to use immediately after power-on without origin resetting. It’s as easy as vernier caliper measurements.

Air leakage detection system used for water-proof testing Generally, air leakage tests are performed to evaluate water resistance. Testing begins by placing a measuring tool into the capsule. Next, air with equivalent pressure is supplied to the capsule and the master, then the valves are closed. If none of the air in the capsule seeps into the measuring tool, the capsule’s air pressure will remain equal to that of the master, and the differential pressure gage will continue to point to the center. However, if some air seeps into the measuring tool, it will create an air pressure difference in the amount indicated by the differential pressure gage. Thus, detection of air pressure differences is used as a criterion for judging leakage. Every single unit of the ABS Coolant Proof calipers and Coolant Proof micrometer is tested this way for air leakage to help ensure product quality.

Package Content:

• Digital ABS Caliper
• SR44 Battery
• Certificate of inspection
