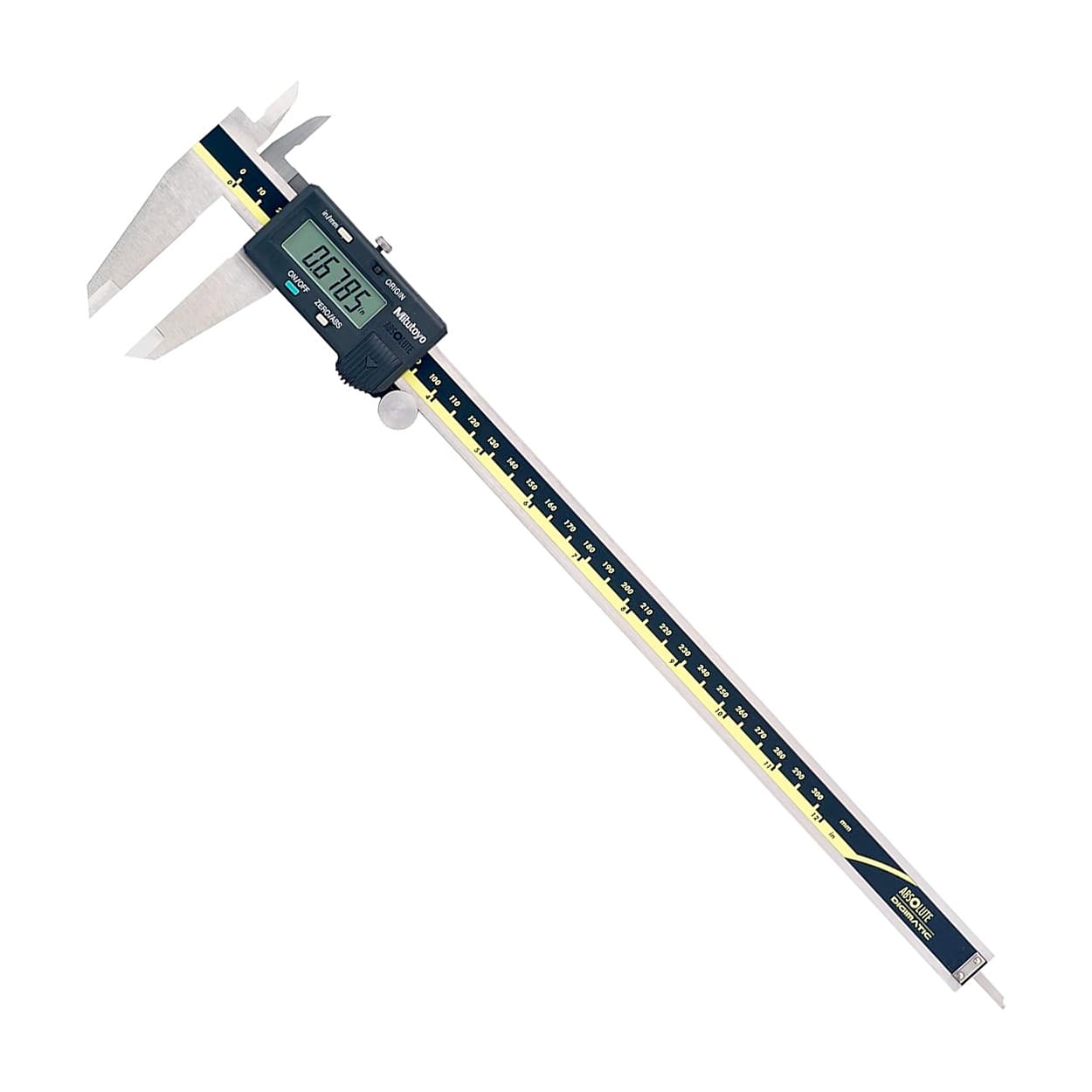

Mitutoyo 300 mm / 12 inch Digital ABS AOS Caliper With Data Output, 500-173-30

Mitutoyo Digimatic calipers feature advanced design styling for easier, faster measurements that are highly accurate and repeatable. Made of hardened stainless steel, our calipers slide smoothly with no need to wipe the scale clean. The digital display is larger and easier to read and displays the actual slider position, ready for measurement without having to zero the caliper. Many different types of Digimatic calipers are available including depth gages, offset calipers, and scribing calipers as well as calipers measuring inner and outer dimensions.

The Mitutoyo ABSOLUTE digital caliper delivers accurate, repeatable outside dimension, inside dimension, depth and step measurements with accuracy and unrestricted speed. The caliper’s slide and jaws are constructed of hardened stainless steel with optional carbide-tipped jaws available. The impact-resistant, easy-to-ready LCD display is highly durable and provides large character height (9.0mm in height) which improves readability.

A Mitutoyo digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with the latest electromagnetic ABSOLUTE AOS System scale for error free, high-speed measurement.

Features:

• AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers
• Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. The detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
• The slider provides smooth, stable and comfortable operation.
• Character height: 9 mm (150 and 200 mm), 11 mm (300 mm)
• ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
• Carbide-tipped jaws are available
• Thumb roller included only on calipers up to and including 300mm/12” models
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
• Stainless steel construction protects caliper components and ensures accurate performance for longer duration
• SPC output function allows for quick and easy data management in real time
• Alarm: Low Voltage, counting value composition error
• Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion (on inch/metric models only)



Accurate Measurements Our digital calipers provide precise inside and outside measurements, with accuracy you can count on every time.

Reliable Operation in Many Environments A Mitutoyo digital caliper ensures accurate measurements, even when flexible maneuvering around obstructions is needed. Two models offer options for both internal and external measurements.

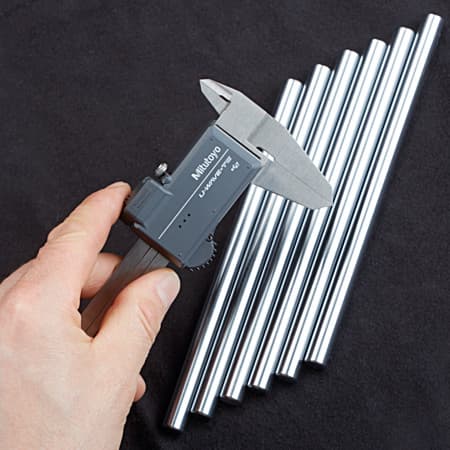

Versatile Values Digital calipers provide versatile ID measurements for holes, diameters, groove thickness, tube thickness and hard-to-reach dimensions, with error-free LCD readings.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
