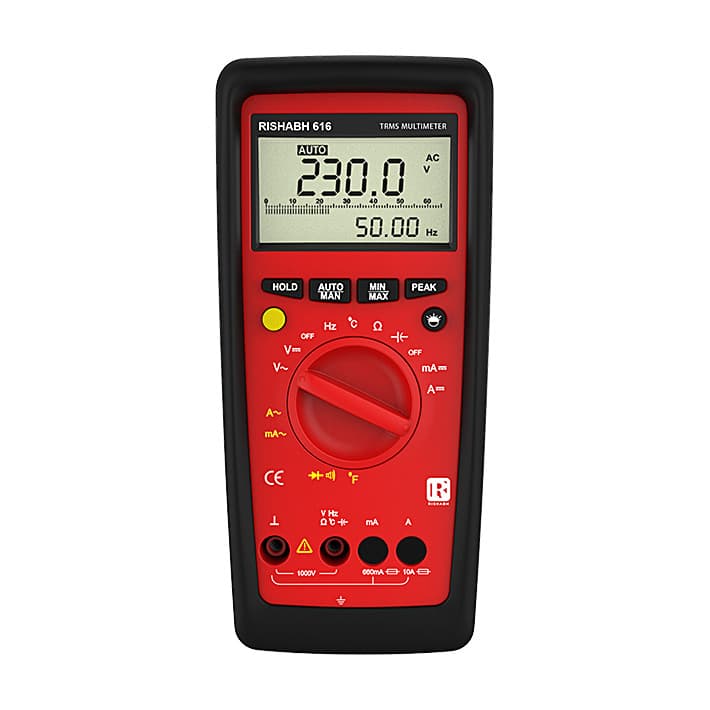

RISHABH 616 is a rugged, dual display, 6600 count, portable multimeter with current measuring capability of up to 16A. It is designed specifically for Transformers testing applications. The other key features include MIN/MAX, Data Hold & Peak Hold.
Features:
- Diode measurement and continuity testing
- Hold measurement
- Relative measurement
- Duty cycle (%) measurement
- Temperature measurement with K type Thermocouple
- Peak value measurement.
Applications:
- Dual Display
- Peak Hold
- Min/Max Function
- Temperature Measurement
- Indication of Negative values on the analog scale
- Analog Scale
- Protection from Dust & Water
- Applicable International Safety Standards
- Auto Power OFF
- Hold
- Relative Measurement (REL)
- Automatic Blocking System
- Auto & Manual Ranging Modes
- Diode & Continuity Testing
- Backlit
- Continuous ON Mode
Reference conditions for Accuracy:
- Reference Temperature: 23°C ± 2K
- Relative Humidity: 45%...55% RH
- Waveform of measured quantity: Sinusoidal
- Input frequency: 50 or 60Hz ±2%
- Battery Voltage: 3V ± 0.1V
Applicable regulations and standards:
- EMC Immunity: IEC 61326-1:2012, Table A.1
- Immunity: 8 KV atmosphere discharge & 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
- Safety: IEC 61010-1-2010
- IP for Water & Dust: IEC 60529
- Pollution degree: 2
- Installation Category: 600V CAT lV / 1000V CAT lll
- High Voltage Test: 6.7 kV (IEC 61010-1-2010)
- Short-term measured value deviation may occur during electro-magnetic interference thus reducing the specified operating quality
Power Supply:
- Battery: 2 X 1.5V Cells
- Battery Type: Alkaline manganese Dioxide cells.
- Battery Life: 400 hrs for VDC & ADC / 200 hrs for VAC & AAC
Package Content:
- 1x Digital Multimeter
- 1x Cable set
- 1x Copy Operating Instructions
- 1x Protective Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
