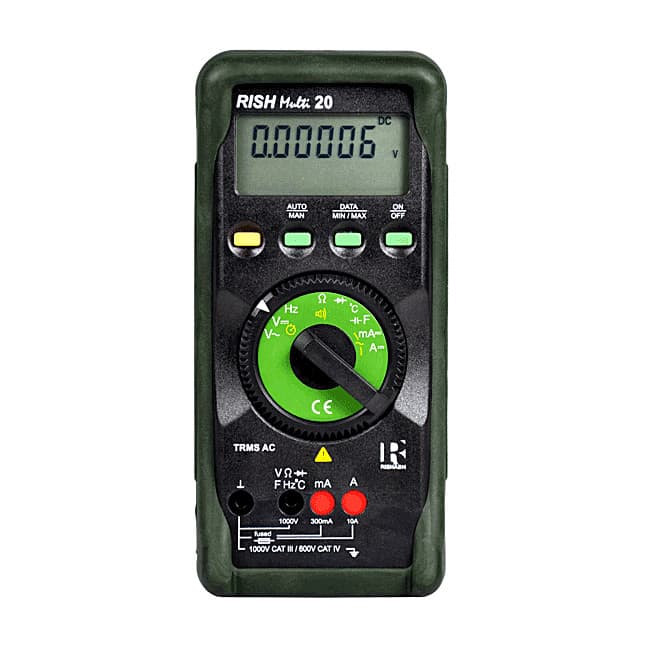

5 ¾ Digit 309999 counts High Precision Multimeter ( V A Ohm Hz F°C Diode) Direct Amp. measurement upto 10A, Triple display of V, Hz or V and Min/Max. Continuity, Dutycycle, DataHold, Auto/Manual range, °C(PT100/1000), overload warning, Auto off, CAT III 1000V & CAT IV 600V.
Features:
- Convenient Triple Display: Simultaneous measurement of voltage and frequency or voltage and min, max values is possible. Also current and frequency or the current measurement and minimum and maximum values are displayed simultaneously The usual switching back and forth between display values is no longer necessary. Main display resolution for AC is 4 ¾ places and for DC it is 5 ¾ places
- High Resolution & Precision: 5 ¾ places (309,999 digits) for DC measured quantities and 4 ¾ places (30,999 digits) for AC measured quantities allow for precision reference measurements and use as a calibration standard for testing devices and assemblies.
- RMS Value with Distorted Waveshape: The utilized measuring method allows for waveshape independent RMS measurement (TRMS AC).
- Additional Functions: Resistance (Ohm), Temperature (°C), Continuity, Diode, Capacitance, Frequency, Duty cycle.
- Overload Protection: The instrument is safeguarded for up to 1000 V in all measuring functions by overload protection. An acoustic signal is generated if the upper voltage or current range limit is exceeded. FUSE appears at the display if the fuse for the current is blown.
- Measuring Category: 1000V CAT III/600V CAT IV as per IEC Standard 61010-1.
- Automatic Blocking Sockets (ABS): Automatic blocking sockets prevent incorrect connection of measurement cables and inadvertent selection of the wrong measured quantity. This significantly reduces danger to the user, the instrument and the system under test and in many cases eliminates it entirely.
- Backlit Display: The instrument is provided with user selectable Back-lit for taking measurements in poor lighting conditions / dark areas.
Reference conditions for Accuracy:
- Reference temperature: 23°C ± 2K
- Relative Humidity: 45%...55% RH
- Waveform of measured quantity: Sinusoidal
- Input frequency: 50 or 60 Hz ±2%
- Battery Voltage: 8V ± 0.1V
Applicable Standards:
- EMC: Class B (IEC 61326)
- Immunity: 8 KV atmosphere discharge, 4 KV contact discharge (IEC 61000-4-2) / 3 V/m (IEC 61000-4-3)
- IP for water & dust: IP 50 for Housing (IEC60529)
Battery:
- 9V flat cell battery
- Battery type: Manganese Dioxide cell as per IEC 6 F22 or alkaline manganese cell according to IEC 6 LR61suitable NiCd storage battery.
- Battery Life: Minimum 300 hours on Vdc, Adc ,150 hours on Vac, Aac. Without Backlit
