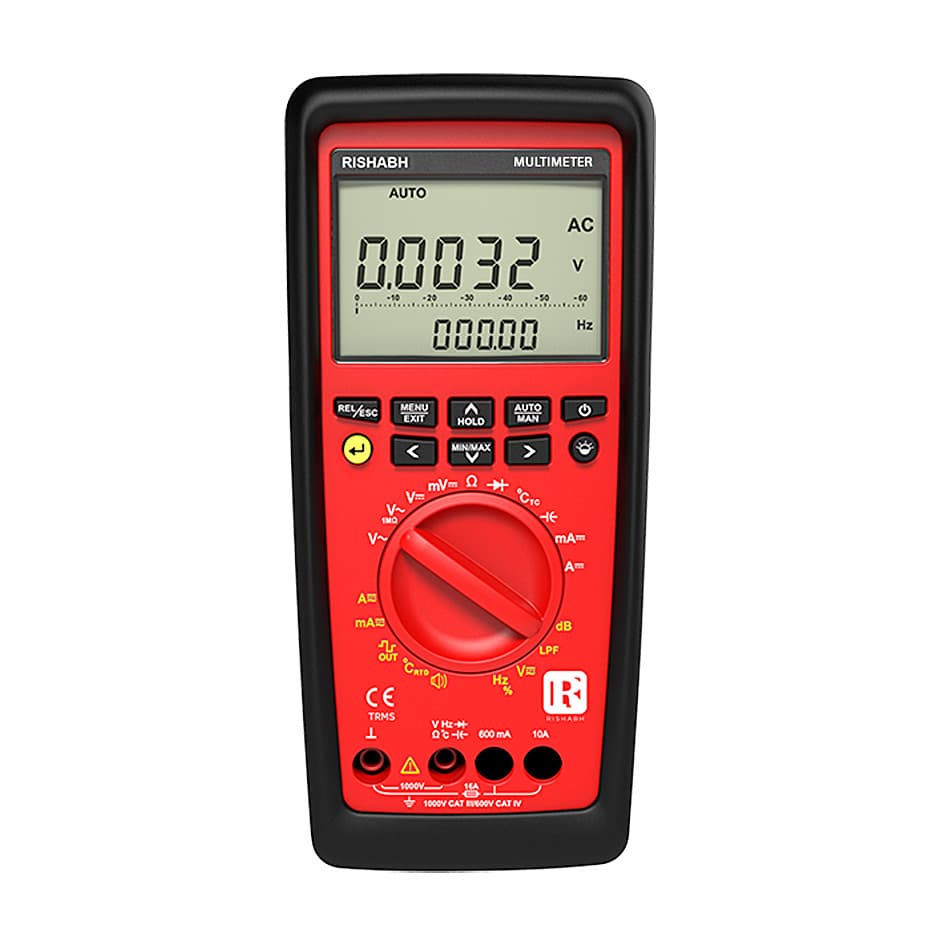

The 6016 new multimeter is made for professional use that offers large range count,reliability, ruggedness, a complete tool for test automation, 100KHz Bandwidth and is equipped with 30 different measuring functions alongwith data logging facility & plug and play USB for connection with PC.
Features:
- True RMS Digital Multimeter
- Data logger & View function (up to 32000 readings)
- Plug and Play USB connectivity with PC
- 100kHz bandwidth for voltage measurement
- 1kHz Low Pass Filter mode
- GO-NO-GO function
- VAC with 1MOhm impedance 4-20mA/0-20mA scale type measurement
- Single fuse for mA & A
- Adjustable square wave output
- Temperature measurement with J, K, Pt100 & Pt1000 sensors
- External power adapter for long hours of measurements
- Selectable clamp ratio for current measurement
- Conductance Measurement
- Frequency / Time Period Measurement
Reference conditions for Accuracy:
- Reference temperature: 23°C ± 1K
- Relative Humidity: 45% - 55% RH
- Waveform of measured quantity: Sinusoidal
- Input frequency: 45 - 65Hz
- Battery Voltage: 3V ± 0.1V
Battery Details:
- Battery Voltage: 2 x 1.5V Cells (LR6 Battery)
- Battery Type: Alkaline manganese cell
- Battery Life: Appox. 100 Hrs (Backlight OFF)
Package Content:
- Digital Meter
- Cable Set
- Protective Case
- Battery
- Operating Manual
- Test Certificate
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
