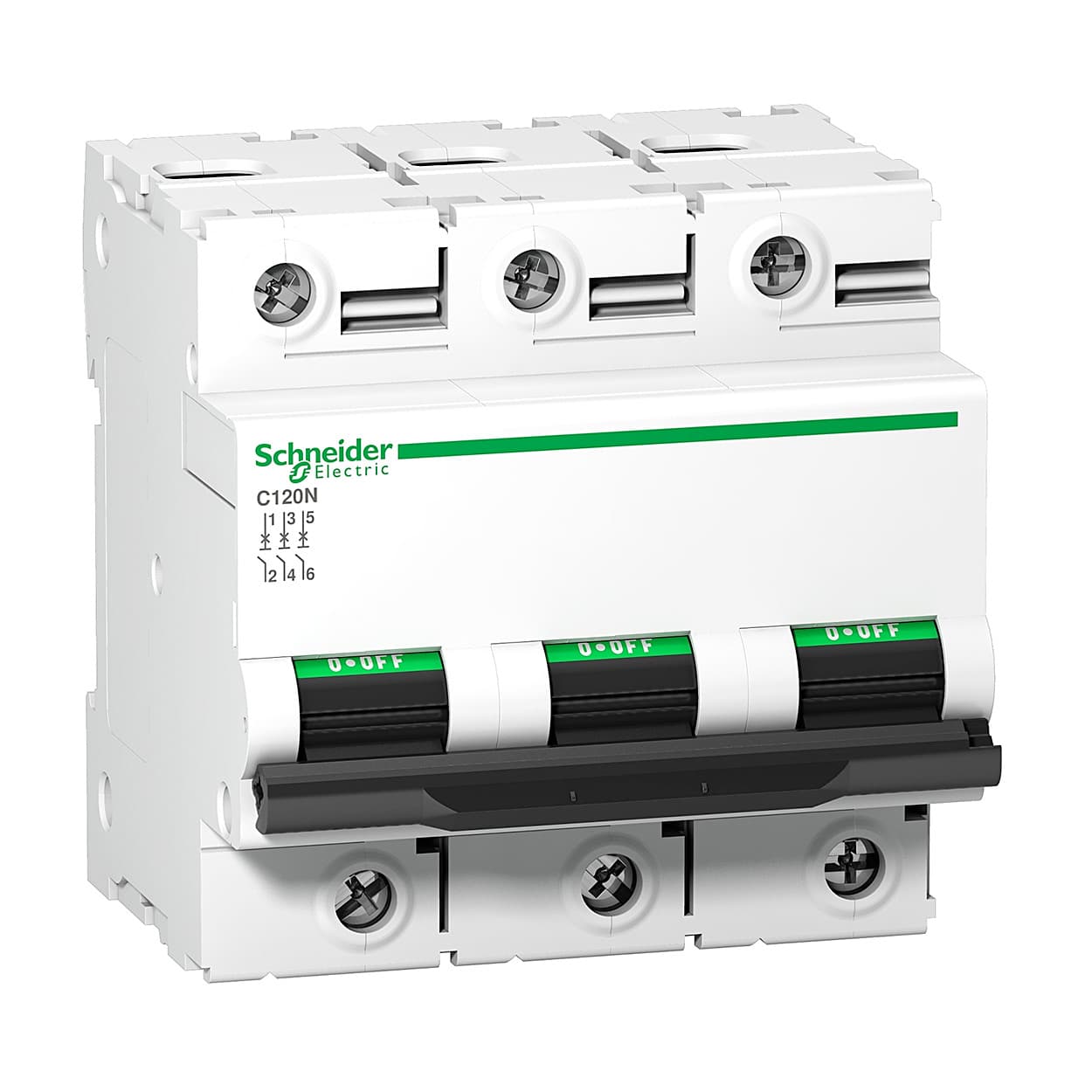

Schneider Electric 100 Amp / 10kA AC Miniature Circuit Breakers - C120N (3 Pole & C Curve), A9N18367
Roll over the image to zoom in
Key Features
- Product Type: Miniature Circuit Breakers (MCBs)
- Weight: 0.62 kg
- Number Of Poles: 3 Pole
- Current Rating: 100 Amp
- Curve Type: C Curve
- Module Width: 4.5 mod
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,632 (Incl. of all taxes)
₹5,620 + ₹1,012 GST (18%)
MRP was MRP ₹14,051
Save 60%
3 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 100A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity.
The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 81mm x (H) 81mm x (D) 73mm. The weight is 0.615kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Complementary
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage |
|
| Magnetic tripping limit | 5...10 x In |
| Breaking capacity |
|
| [Ics] rated service breaking capacity |
|
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | YES |
| 9 mm pitches | 9 |
| Height | 81 mm |
| Width | 81 mm |
| Depth | 73 mm |
| Net weight | 0.615 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 5000 cycles conforming to IEC 60947-2 |
| Connections - terminals |
|
| Wire stripping length | 15 mm |
| Tightening torque | 3.5 N.m |
| Earth-leakage protection | Separate block |
Environment
| Standards |
|
| Product certifications | EAC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
Packing Units
| Unit Type of Package 1 | Db |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 7.2 cm |
| Package 1 Length | 8.2 cm |
| Package 1 Weight | 580 g |
| Unit Type of Package 2 | Gyári csomagolás |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8.6 cm |
| Package 2 Width | 9.4 cm |
| Package 2 Length | 33 cm |
| Package 2 Weight | 2.381 kg |
| Unit Type of Package 3 | Doboz |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 14.773 kg |
Contractual Warranty
| Warranty | 18 months |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | AC Miniature Circuit Breakers |
|---|---|
| Number Of Poles | 3 Pole |
| Current Rating | 100 Amp |
| Curve Type | C Curve |
| Device Application | Distribution |
| Product Name | C120 |
| Device Short Name | C120N |
| Range Of Product | Acti9 |
| Network Type | AC |
| Trip Unit Technology | Thermal-Magnetic |
| Suitability For Isolation | Yes Conforming To IEC 60947-2 |
| Module Width | 4.5 mod |
