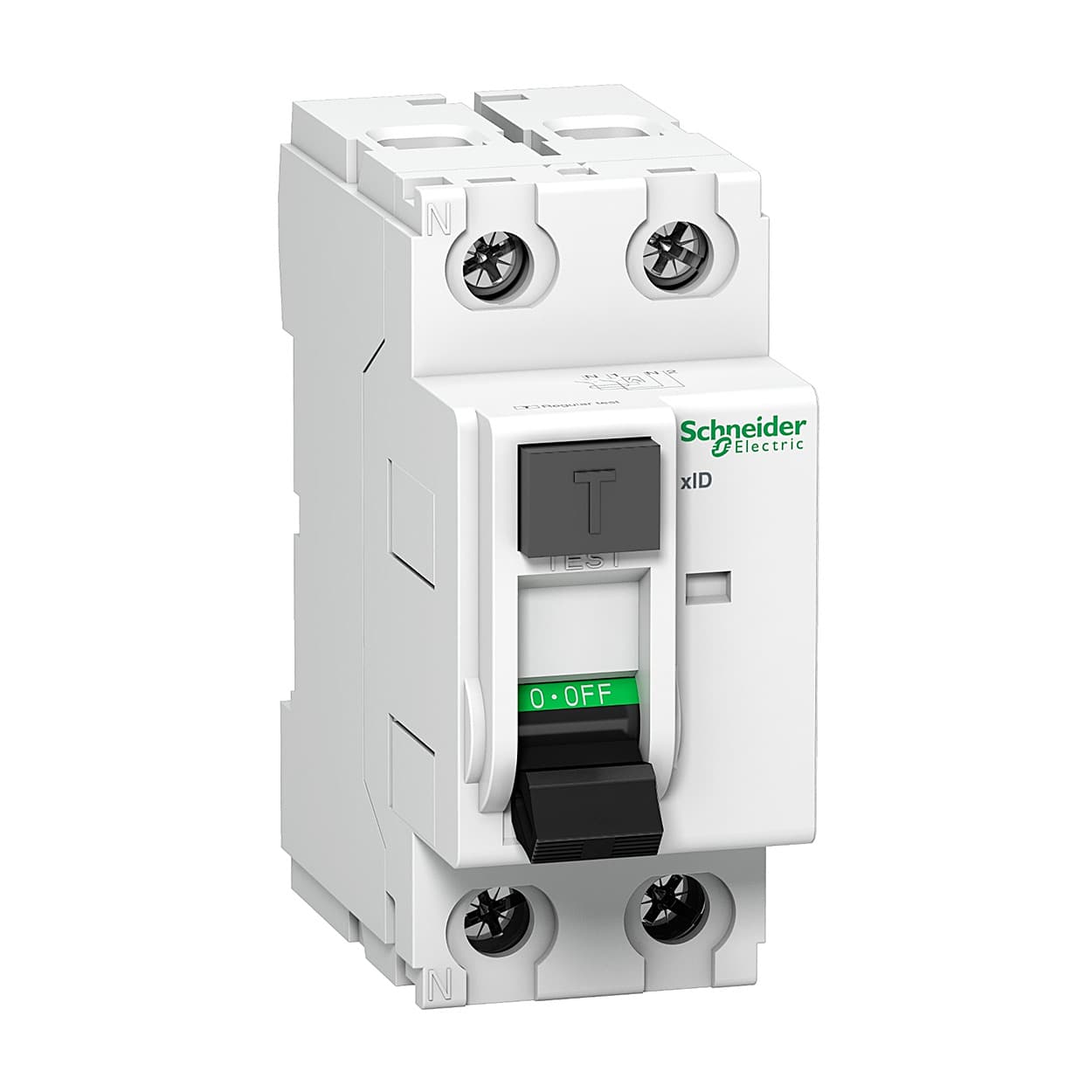

Schneider Electric 30 mA / 40 Amp AC Residual Current Circuit Breaker - xID (2 Pole), A9N16204
Roll over the image to zoom in
Key Features
- Product Type: Residual Current Circuit Breakers (RCCB)
- Weight: 210 g
- Number Of Poles: 2 Pole
- Current Rating: 40 Amp
- Earth-Leakage Sensitivity: 30 mA
- Module Width: 18 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,869 (Incl. of all taxes)
₹3,279 + ₹590 GST (18%)
MRP was MRP ₹8,198
Save 60%
3 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, a sensitivity of 30mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is up to 500A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles.
The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C.
Complementary
| Network frequency | 50 Hz |
| [Ue] rated operational voltage | 230...240 V AC 50 Hz |
| [Ui] rated insulation voltage | 500 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON, OFF, fault trip |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Downside: biconnect |
| Connection pitch | 18 mm between phases |
| 9 mm pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Net weight | 210 g |
| Colour | White |
| Mechanical durability | 4000 cycles |
| Electrical durability | 4000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals |
|
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
Environment
| Standards |
|
| Product certifications | ISI |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -40…85 °C |
Packing Units
| Unit Type of Package 1 | Db |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.6 cm |
| Package 1 Width | 3.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 218.0 g |
Contractual Warranty
| Warranty | 18 months |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | AC Residual Current Circuit Breakers |
|---|---|
| Number Of Poles | 2 Pole |
| Current Rating | 40 Amp |
| Earth-Leakage Sensitivity | 30 mA |
| Range | Acti9 |
| Device Short Name | xID |
| Product Or Component Type | Residual Current Circuit Breaker (RCCB) |
| Earth-Leakage Protection Class | AC |
| Neutral Position | Left |
| Module Width | 18 mm |
| Suitability For Isolation | Yes |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Rated Breaking And Making Capacity | 500 A Conforming To EN/IEC 61008-1 |
