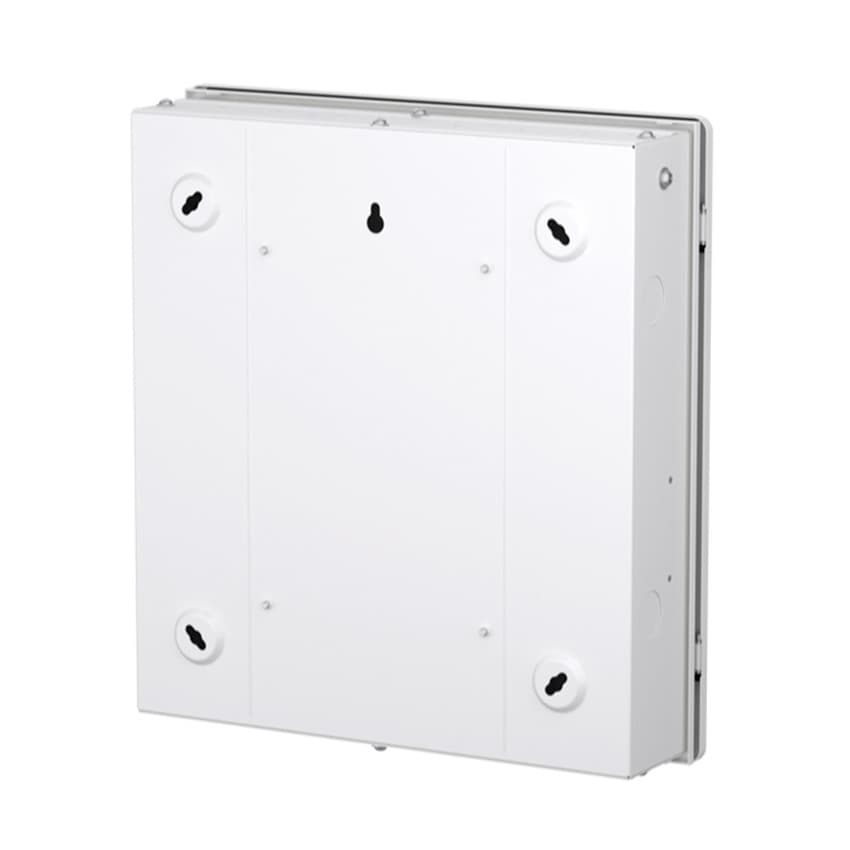

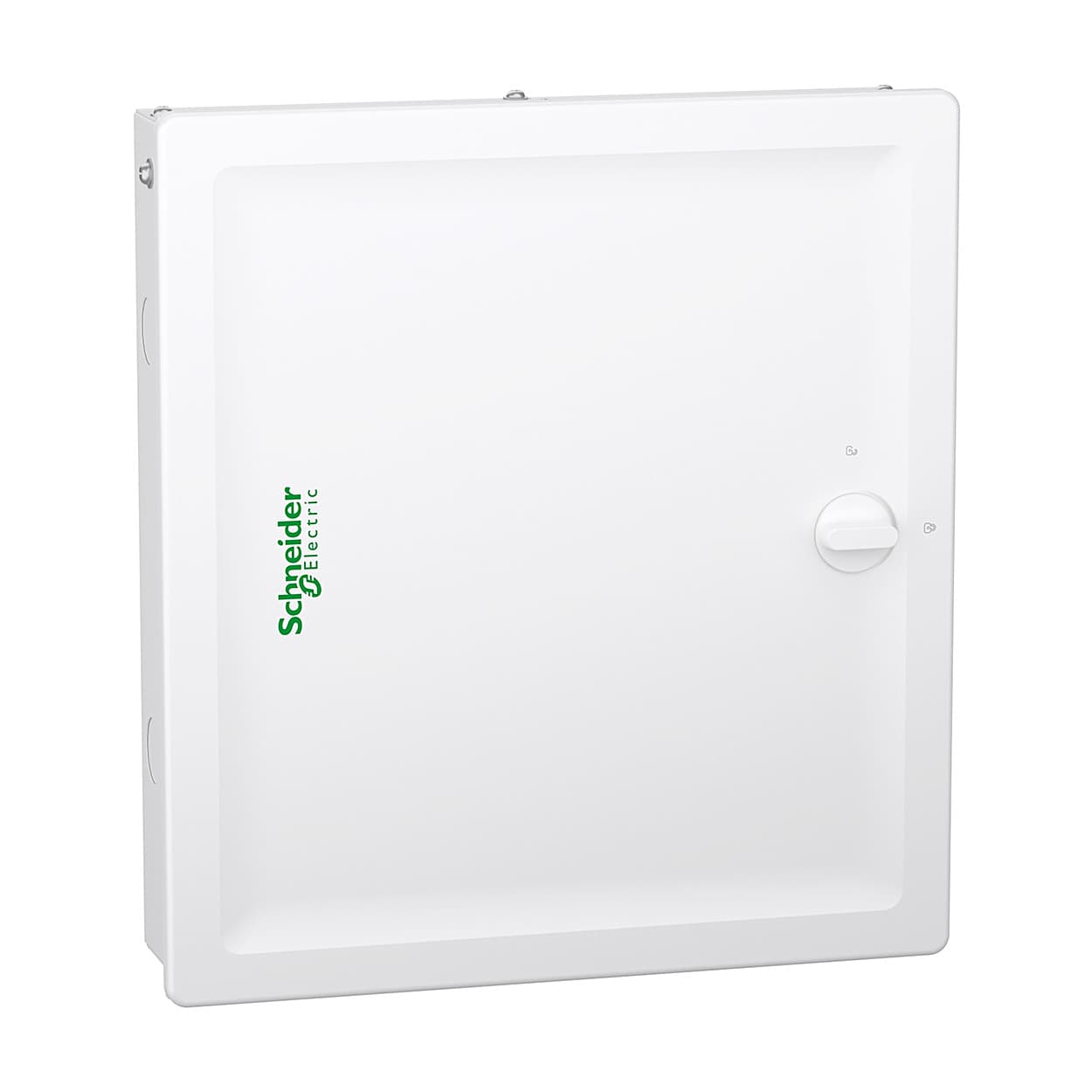

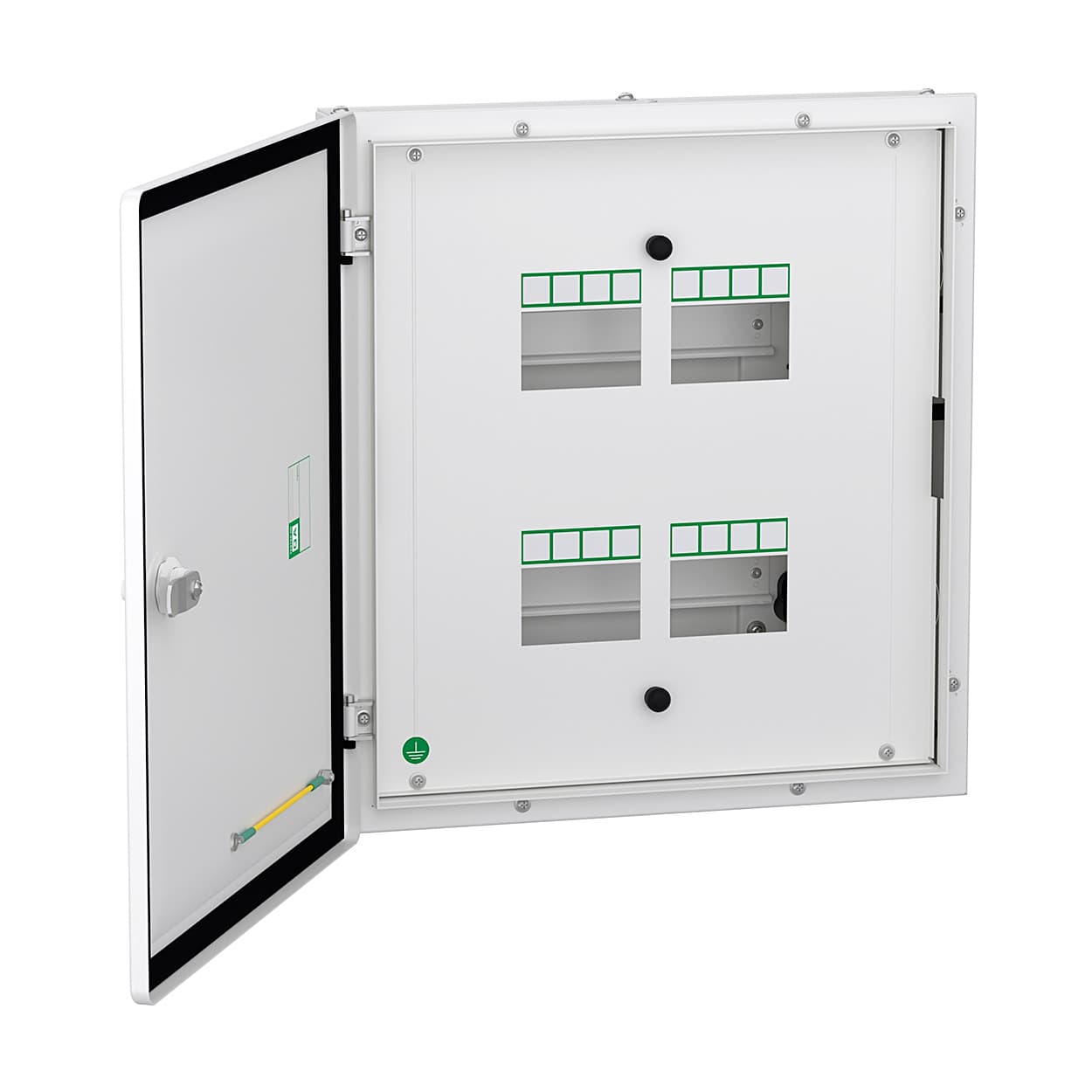

Schneider Electric 4 Way Eco Double Door Metal - TPN DBs (IP43), A9HTND04E
Roll over the image to zoom in
Key Features
- Product Type: MCB Distribution Boards
- Total Module: 4 Incomer + 12 Outgoing
- Colour: White (RAL 9003)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,646 (Incl. of all taxes)
₹3,937 + ₹709 GST (18%)
MRP was MRP ₹9,842
Save 60%
3 Business Days
1
–
Download Product LeafletNot available
Download Schneider Electric CatalogueNot available
Download Schneider Electric CatalogueNot available
Highlights
Complementary
| Enclosure mounting |
|
| Protection device type |
|
| Total number of 18 mm modules | 16 |
| Number of ways | 4 ways |
| Enclosure/cubicle description | Double door enclosure |
| Enclosure material |
|
| Door opening side | Reversible |
| Height | 422 mm external: |
| Width | 388 mm external: |
| Depth | 101.4 mm external: |
Environment
| IP degree of protection | IP43 |
| IK degree of protection | IK09 |
| Standards |
|
| Product certifications | ERDA CPRI |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.5 cm |
| Package 1 Width | 32.6 cm |
| Package 1 Length | 43 cm |
| Package 1 Weight | 7.62 kg |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 4 Incomer + 12 Outgoing |
|---|---|
| Range | Acti9 |
| Product Name | TPN |
| Device Application | Distribution |
| Product Or Component Type | Consumer Unit |
| Colour | White (RAL 9003) |
| Provided Equipment | Removable Gland Plates, Removable Centre Plates, Removable Frame, Grounding Bar, Neutral Bar, Busbar & Neutral Cable |
