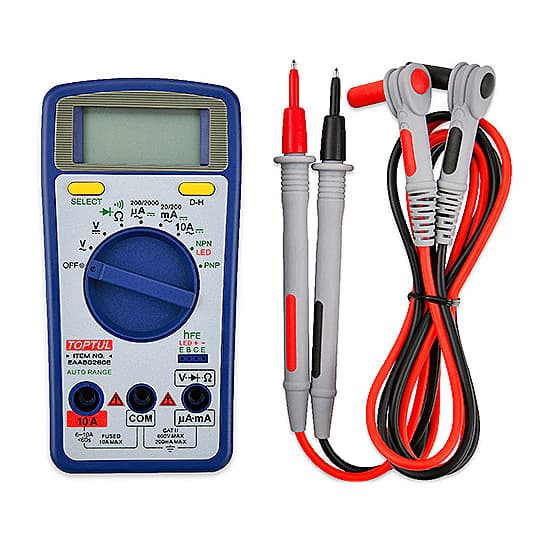

Toptul Digital Multimeter, EAAB0260E

TOPTUL The Mark of Professional Tools's highly trained professional workforce and dedicated engineers are committed to meet customer's satisfaction. Our Digital Multimeter is widely appreciated by the customers due to their longer functional life, reasonable price, and less maintenance. We have well-maintained quality management comprising a team of experienced professionals that keeps an eye on Digital Multimeter to ensure durability.

Features & Benefits:

• Digital multimeter with basic measuring functions
• Test lead set with test tip (red/black)
• Central dial switch
• Large LCD with 3-1/2 digit display 2000 counts
• Low battery indicator and auto shut off (after 15 minutes)
• Additional Features: Data hold, auto range, auto power off selection, auto power off cancelation
• AC and DC voltage measurement
• AC and DC current measurement
• Resistance measurement
• Diode test
• Continuity test with buzzer
• Transistor test (NPN & PNP)
• LED test

Specifications:

AC Voltage	2V / 20V / 200V / 600V
DC Voltage	200mV / 2V / 20V / 200V / 600V
Resistance	200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
AC / DC Current	200μA / 2000µA / 20mA / 200mA / 2A / 10A
Diode	1V
Continuity Check	200Ω
Transistor (NPN/PNP)	2000 hFE
LED Test	Yes
Operating Environment	0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment	-10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Power Supply	Battery 1.5V AAA x 2 pcs (included)
Fuse Protection	0.5A / 600V Ø5xL20mm, 10A / 600V Ø6.35xL32mm
Testing Standard	IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033
Measurement Category	CAT II 600V / CAT III 300V
Pollution Degree	2
Dimension	138mm (L) x 70mm (W) x 32mm (H)
Weight	Approx. 140g

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
