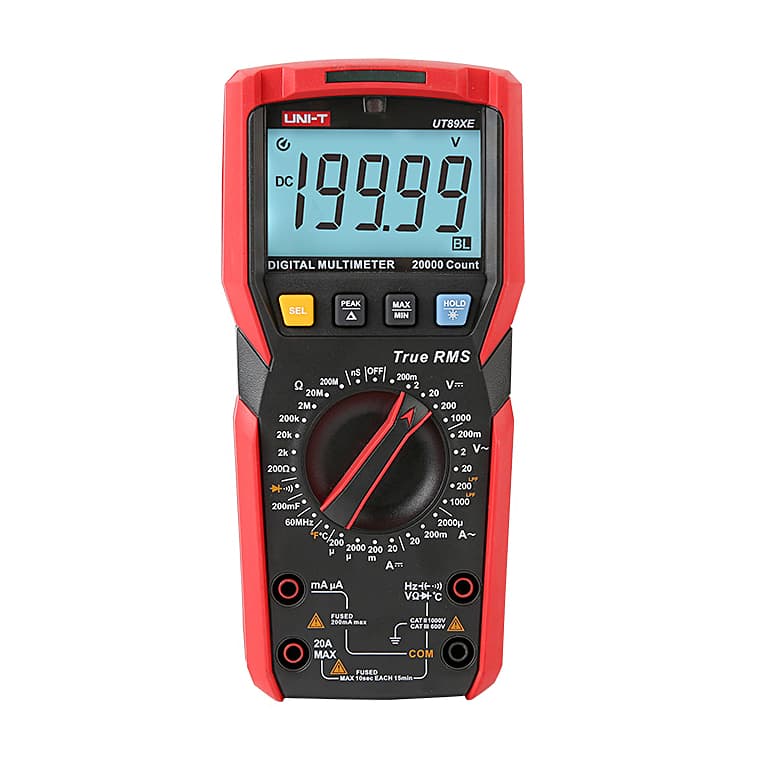

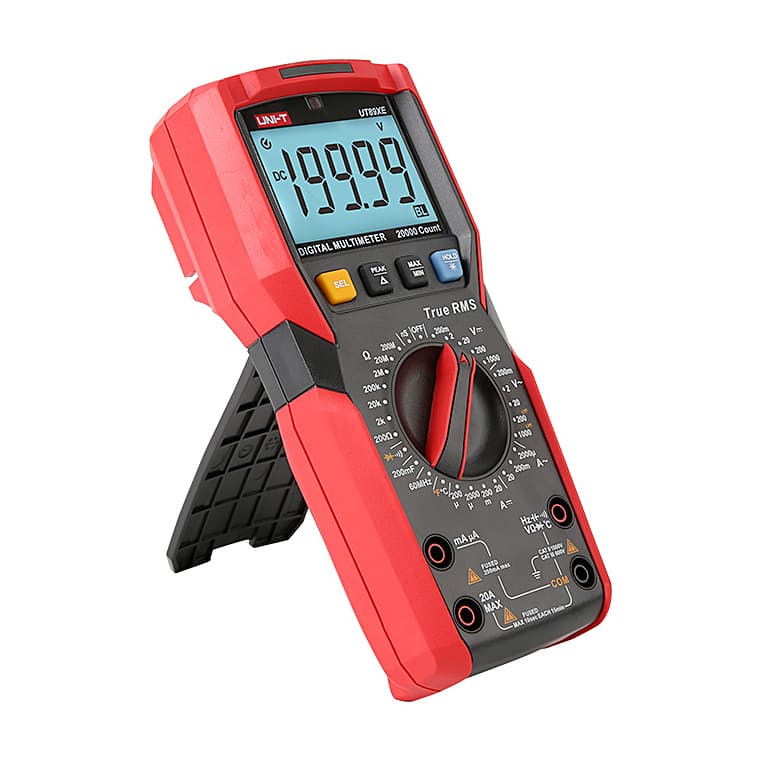

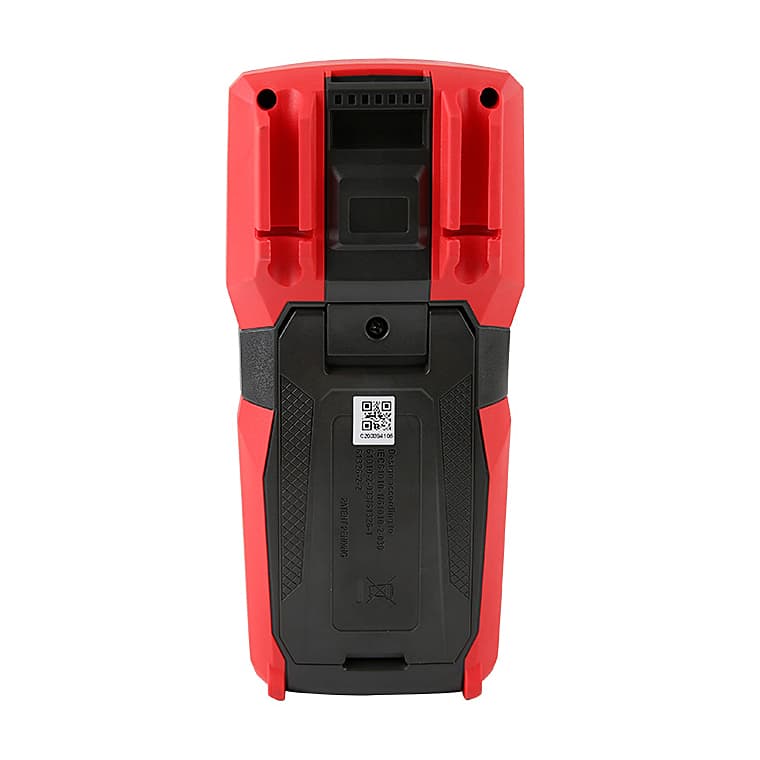

UNI-T 20000 Count Professional True RMS Digital Multimeter, UT89XE

It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.

Features:

• True RMS
• Dual range NCV test which quickly identifies neutral and live wires through light intensity
• Audible/visual alarm
• Capacitor charging indicator
• Ergonomic design
• Double injection molding
• 1m drop proof
• Flashlight; Auto backlight
• Audible/visual alarm
• MAX/MIN
• Peak Hold
• LPF measurement

Applications:

• Voltage measurement
• Capacitance measurement
• Temperature measurement
• Resistance measurement

Technical Data:

	Range	Accuracy
DC voltage (V)	200mV / 2V / 20V / 200V / 1000V	±(0.05%+5)
AC voltage (V)	200mV / 2V / 20V / 200V / 1000V	±(0.8%+5)
DC current (A)	2000μA / 200mA / 20A	±(0.5%+4)
AC current (A)	2000uA / 200mA / 20A	±(1.5%+15)
Resistance (Ω)	200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ	±(0.4%+5)
Capacitance (F)	200mF	±(4%+50)
Conductance (ns)	200nS	±(1.2%+50)
Frequency (Hz)	60MHz	±(0.1%+3)
Temperature (°C)	-40°C ~ 1000°C	±(1%+10)
Temperature (°F)	-40°F ~ 1832°F	±(1.5%+10)

Package Content:

• 1x True RMS Digital Multimeter
• 4x 1.5V battery (R03)
• Test lead
• K-type temperature probe
• English manual
