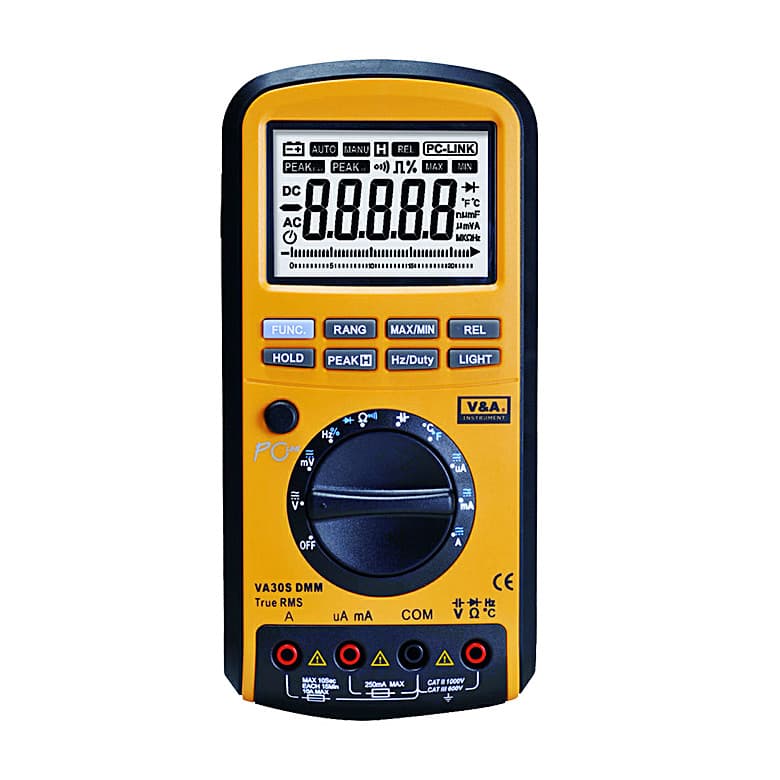

This 22000 counts high accuracy digital multimeter is designed and manufactured according to the safety requirements set out by the IEC61010-1 standards for electronic test instruments and the handheld digital multimeters. It has temperature and peak hold function, misplug sound alarm and analog bar display of 46 segments. The design and manufacture of this 22000 counts high accuracy digital multimeter is strictly based on the provisions in the 1000V CAT III of IEC61010-1 and the Stipulation of 2-Pollution Grade.
Features:
- 22000 counts measurement
- ACV and DCV measurements reach up to 1000V.
- DC measurement accuracy reaches up to 0.05%.
- 0.01 Ω resistance resolution and 10μV voltage resolution.
- Linear frequency measurement, logic frequency/duty ratio measurement.
- Capacitance measurement from 0.001nf to 220mF.
- AC true RMS measurement
- Temperature Measurement.
- Maximum value/minimum value measurement, Relative measurement, PEAKmax/min measurement.
- 46-segment analog bar display.
- Automatic shutdown/continuous working mode selection.
- Backlight control.
- PC-LINK: USB infrared interface.
- Display, record and graphics software of computer.
- Overload protection.
- Sound alarm for wrong current measurement.
- Secondary plasticizing meter shell, with insulating performance reaching 1000V CAT II
- Diode Test, Data Hold, Peak Hold, Misplug Sound Alarm, Low Power Indication
Application:
- With Functions of Voltage measurement, Current measurement, Resistance measurement, Capacitance measurement ,Diode test,Continuity test, Temperature measurement, PEAKmax/min measurement, Relative Value Measurement ,Frequency measurement and PC Link.
- This digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.
General Maintenance:
- Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
- Dirt or moisture in the terminals can affect readings.
- Turn the meter off and remove all test leads.
- Shake out any dirt that may be in the terminals.
- Soak a new swab with a cleaning and oiling agent (such as WD-40).
- Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.
- To avoid electrical shock or damage to the meter, do not get water inside the case. Remove the test leads and any input signals before opening the case
Package Content:
- 1x Digital Multimeter
- 1x User’s Manual
- 1 Pair x Test leads
- 1x Free Carrying bag
- 1x Micro-USB cable
- 1x PC-Link software CD
