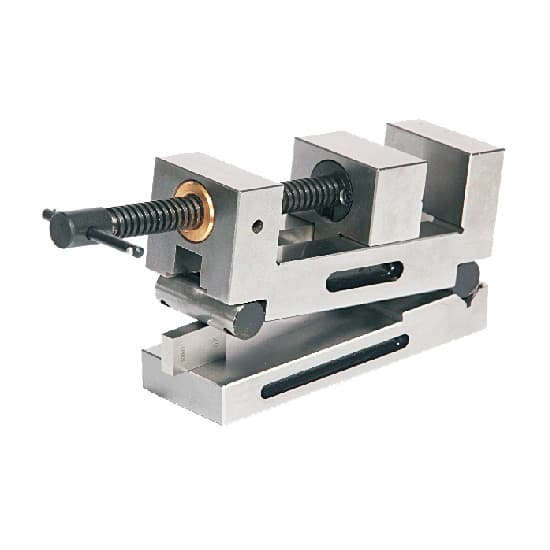

Crystal 180 x 63 x 98 mm Precision Grinding Sine Vice, AA - 6132
Roll over the image to zoom in
Key Features
- Product Type: Sine Vice
- Length (mm): 180 mm
- Width (mm): 63 mm
- Height (mm): 98 mm
- Jaw Opening: 0 - 90 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,865 (Incl. of all taxes)
₹17,682 + ₹3,183 GST (18%)
MRP was MRP ₹19,220
Save 8%
3 Business Days
1
–
Download Product LeafletNot available
Download Crystal CatalogueNot available
Download Crystal CatalogueNot available
Highlights
- Precision grinding vice is used for precision degree grinding & inspection of angles.
- Accuracy for squareness, ?atness & parallelism is within 10.005 mm up till Cat No.AA-6133. For Cat No.AA-6134 the accuracy is 10.010 mm.
- Angular accuracy within 1 5 seconds.
- The Center distance between rollers is within 1 0.005mm.
- This vice is provided with a clamping screw having square thread & a gunmetal bush.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

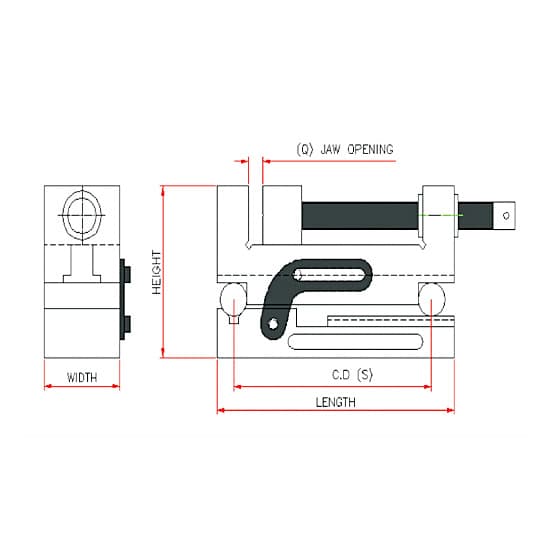

Specifications
| Length (mm) | 180 mm |
|---|---|
| Width (mm) | 63 mm |
| Height (mm) | 98 mm |
| Series | AA-613 |
| Jaw Opening | 0 - 90 mm |
| C.D. 'S' in mm Centre Dist | 150 |
