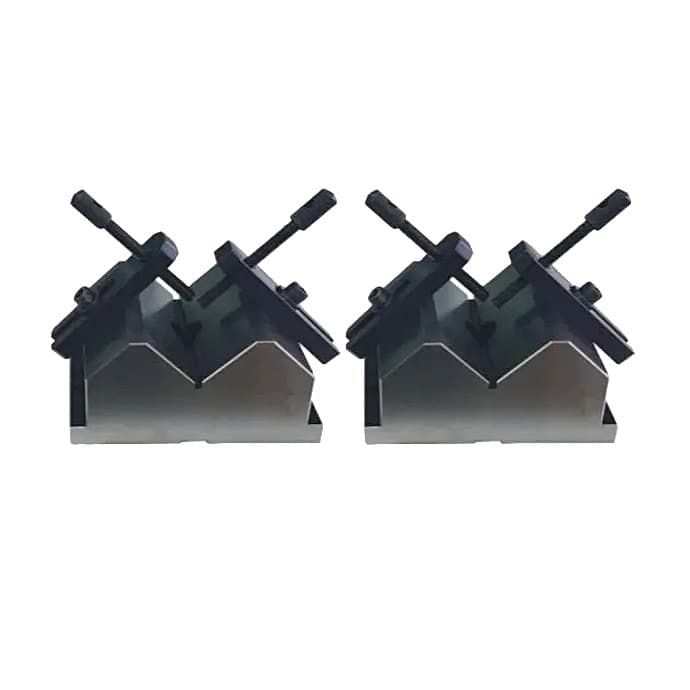

Crystal 5 inch / 100 x 200 x 125 mm Hardened & Ground 'V' Blocks With Clamps (Pack of 2 Pcs), AA-1733
Roll over the image to zoom in
Key Features
- Product Type: 'V' Blocks With Clamps
- Length (mm): 100 mm
- Width (mm): 200 mm
- Height (mm): 125 mm
- Size (inch): 5 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,209 (Incl. of all taxes)
₹28,143 + ₹5,066 GST (18%)
MRP was MRP ₹30,590
Save 8%
3 Business Days
2
–
Download Product LeafletNot available
Download Crystal CatalogueNot available
Download Crystal CatalogueNot available
Highlights
The 'V’ Block has two 'V’ angles of different sizes to take jobs of various dimensions. By means of the clamp, the work can be held rigidly to the 'V’ Block. The top 'V’ and bottom 'V’ are parallel within ± 3 microns and its squareness to the end faces and height variation to the 'V Block in a pair is within ± 3 microns.
Features:
- Hardened steel with clamps and screws. This unique design leaves entire top surfaces of work accessible.
- Tenon slot (16x3) at the bottom can be used for clamping of the machine bed.
- V parallel with the bottom within 0.005mm.
- V groove central within 0.005mm.
- Tenant slot central with V within 0.010mm.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 100 mm |
|---|---|
| Width (mm) | 200 mm |
| Height (mm) | 125 mm |
| Series | AA-173 |
| Size (inch) | 5 inch |
| Diameter Range | 5 - 100 mm |
