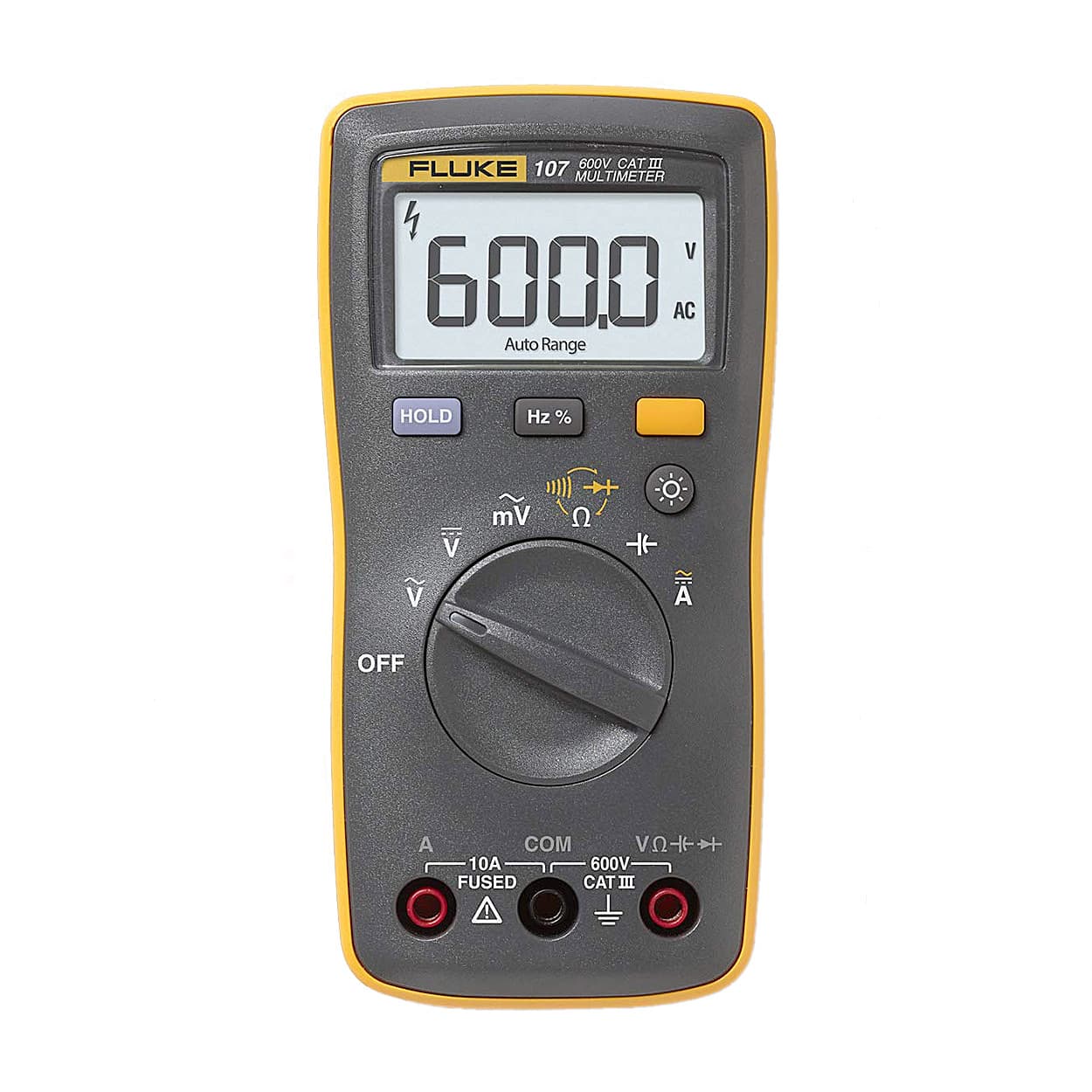

Fluke 107 6000 Counts / 600V CAT III Palm-Sized Digital Multimeter

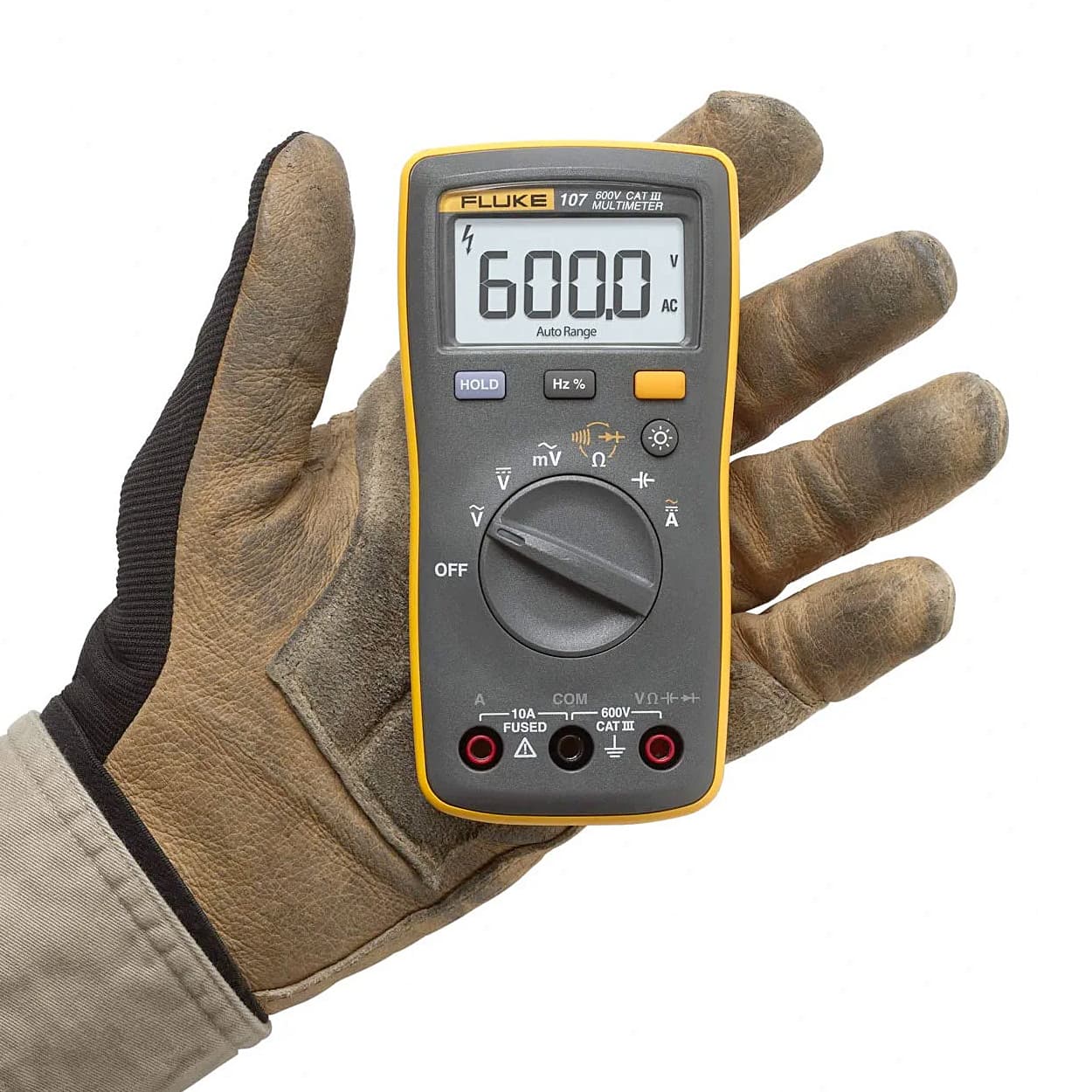

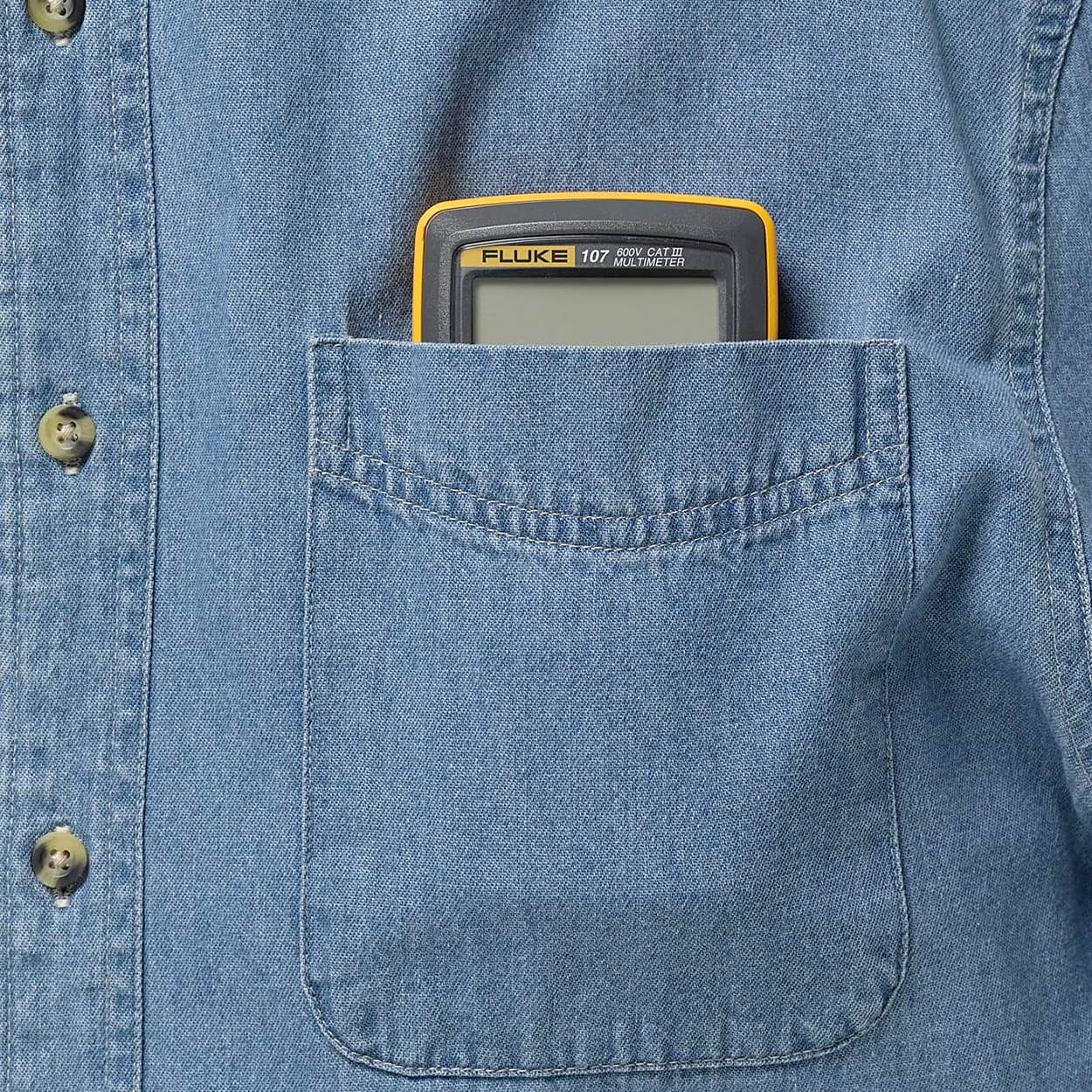

The Fluke 107 is a compact, palm-size easy-to-use digital multimeter made to fit the way you work. It is the perfect first-pass troubleshooting tool; small enough to fit in a shirt pocket yet tough enough to withstand daily use, including a 1-meter drop test.

For everyday applications where true-RMS accuracy isn’t needed, the Fluke 107 delivers reliable measurements time after time. With a CAT III 600 V safety rating, you don’t need to compromise safety. The Fluke 107 offers a comfortable grip, weighs only 200 g, and is easy to carry.

Fluke 107 Measurement Test Functions

• AC and DC voltage
• AC and DC current
• Resistance
• Capacitance
• Diode
• Frequency and duty-cycle.

Fluke 107 Comes Ready To Work

The Fluke 107 comes with a TL75 Hard Point™ Test Lead Set. It’s one pair (red, black) of 48 inch (1.22 meter) test leads with right-angle, shrouded banana plugs. The meter also includes a SmartStrap™ intelligent magnetic multi-purpose lanyard that lets you hang the Fluke 107 from any ferrous surface or support the meter at an angle for easy viewing.

Features:

• CAT III 600 V safety rating
• Current and voltage measurements
• Measures resistance and continuity to check for broken wires
• Data hold and backlit display to keep you working safe and fast.

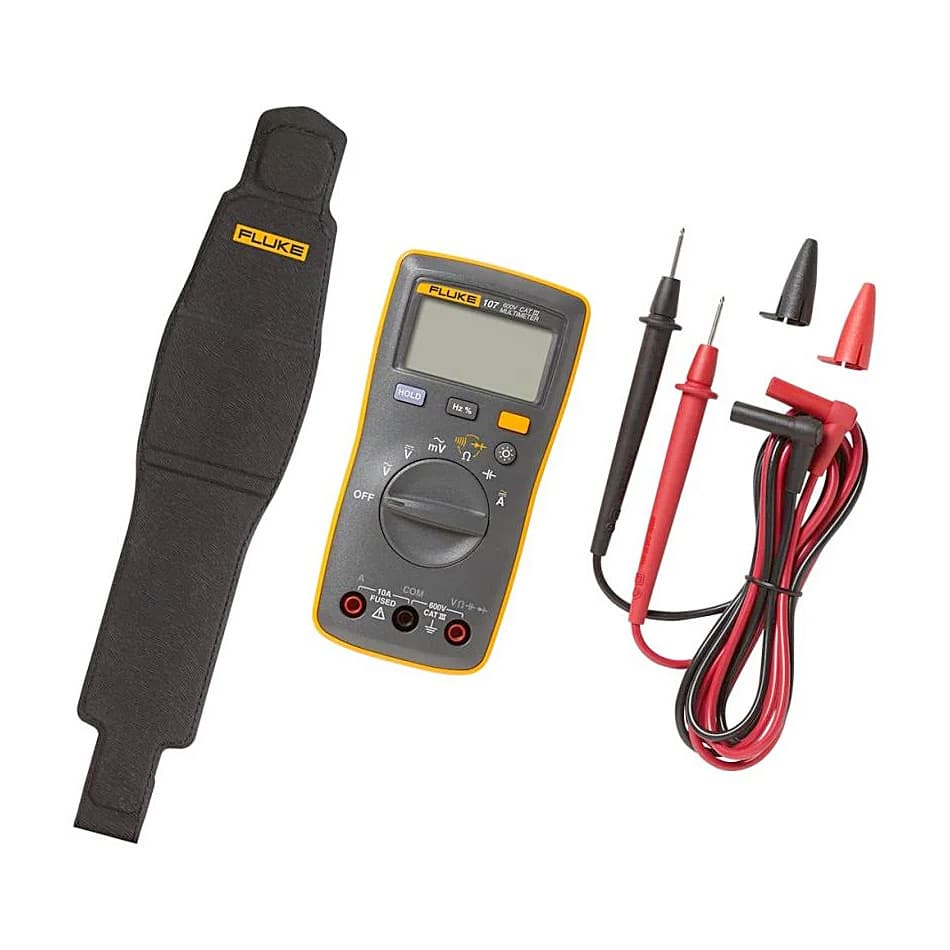

What's Included In This Package:

• Fluke 107 palm-sized digital multimeter
• (1 pair) TL75 Hard Point™ Test Leads
• (2) AAA batteries (installed)
• SmartStrap™ intelligent magnetic, multi-purpose lanyard

Precision Specifications:

Accuracy is available for one year after calibration, operating from 18 °C to 28 °C and relative humidity from 0% to 75%. The format of the accuracy specification is: ± ([% of reading] + [least significant digit]


AC voltage (40 Hz to 500 Hz)1	Range	Resolution	Accuracy
6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC voltage	6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
Exchange millivolts	600.0 mV	0.1 mV	3.0 % + 3
Diode test2	2.000 V	0.001 V	10 %
Resistance (ohm)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitor3	50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency4 Hz (10 Hz – 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty cycle4	1 % to 99 %	0.10 %	1 % typical case5
AC current (40 Hz - 200 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the open circuit test voltage is 2.0 V and the short circuit current is < 0.6 mA. The parameters do not include errors due to test lead capacitance and capacitor substrate (up to 1.5 nF in the 50 nF range). All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the frequency is 50 Hz or 60 Hz and the duty cycle is 10% to 90%.
Features	Overload protection	Input impedance (nominal value)	Common mode rejection ratio	Normal mode rejection ratio
AC voltage	600 V 1	>10 MΩ <100 pF 2	>60 dB at 50 Hz or 60 Hz at DC current	−
Exchange millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC voltage	600 V 1	>10 MΩ <100 pF	>100 dB at 50 Hz or 60 Hz at DC current	>60 dB at 50 Hz or 60 Hz
Up to 6 x 105 V Hz For medium voltage (alternating current), the input impedance is approximately 1 MΩ.
Relative Humidity
Working humidity	No condensation below 10 °C ≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C
Working humidity, 40 MΩ range	≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C
Altitude
Temperature coefficient	0.1 X (specified accuracy) / °C (<18 °C or >28 °C)
Current input fuse protection	11A, 1000V fast-melting type, must use Fluke designated parts
Protection level	IEC 60529: IP 40
Safety	IEC 61010-1: 600 V CAT III, pollution degree 2
Electromagnetic environment	IEC 61326-1: Portable
Electromagnetic compatibility	Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)1
This product meets the requirements of industrial (Class A) electromagnetic wave equipment, which should be noted by the seller or user. The device is suitable for use in a work environment, not a home environment.
