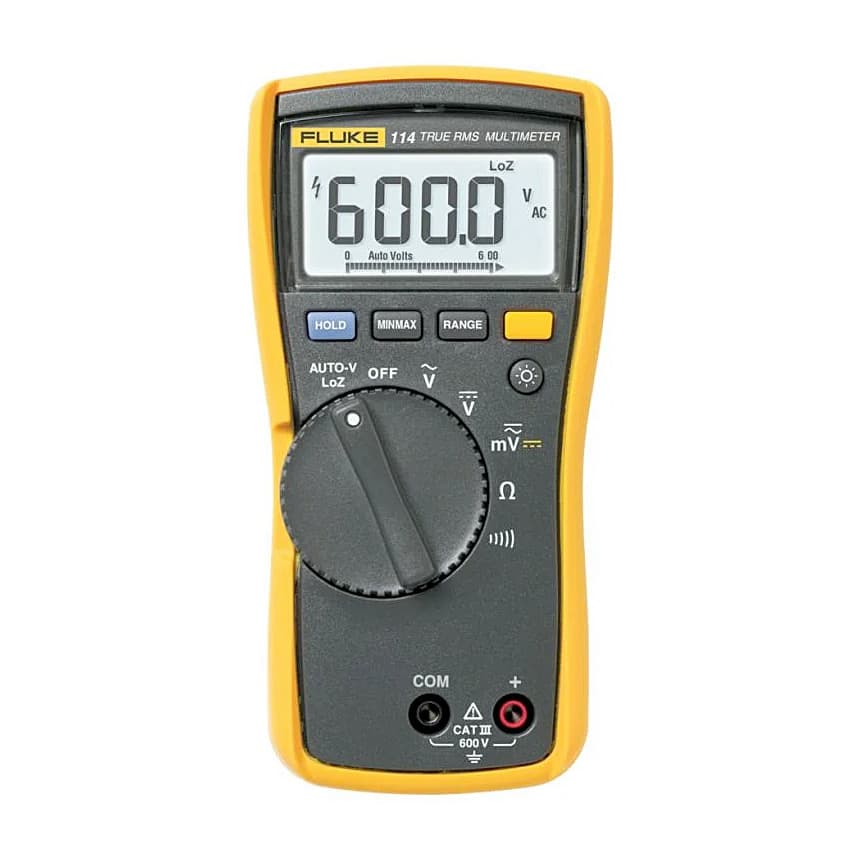

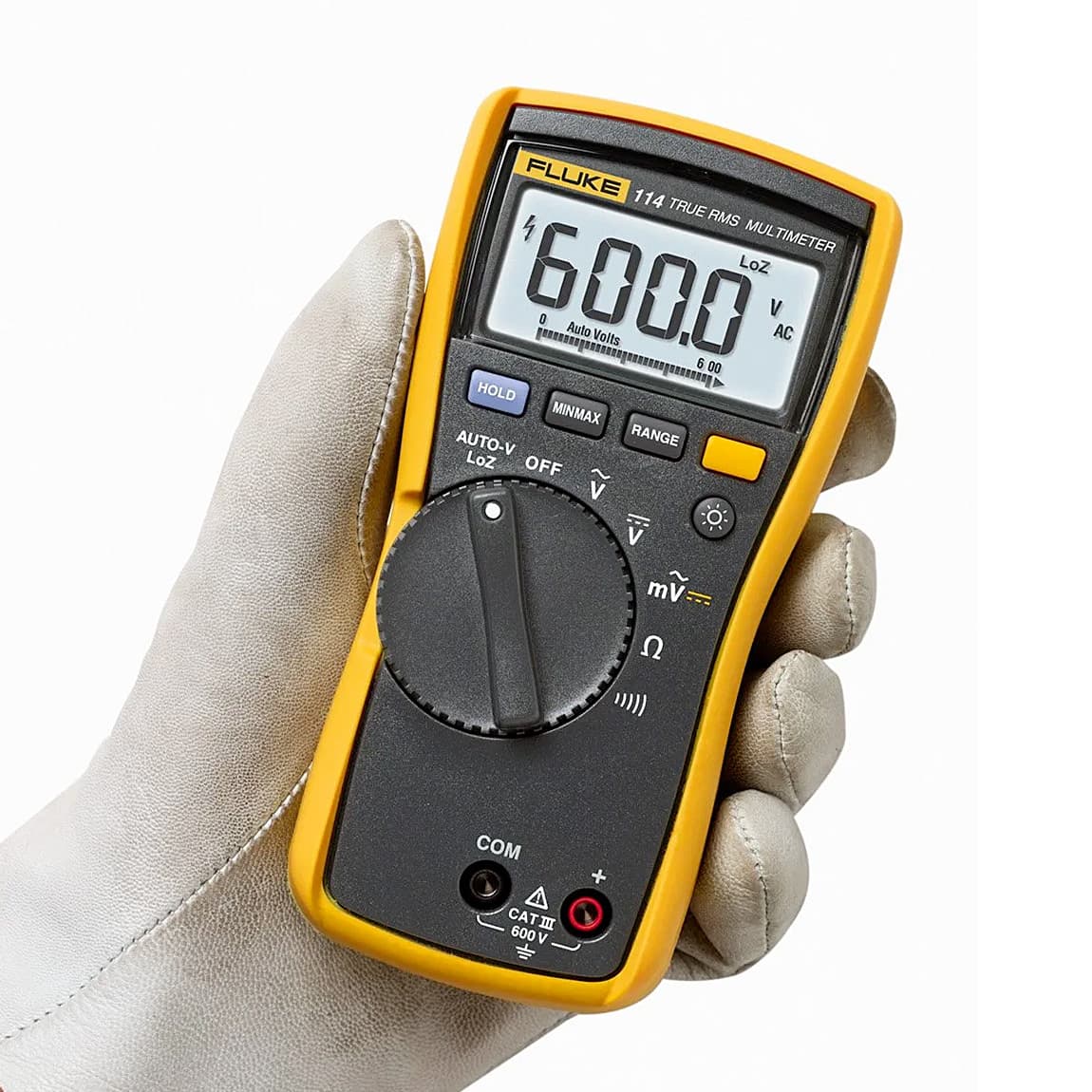

Fluke 114 6000 Counts / 600V True-RMS Electrical Digital Multimeter

Fluke 114 Digital Multimeter Is The Ideal Choice For Go/No-Go Testing
Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.

The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution and tests frequency, continuity, and resistance. A large white LED backlight aids to work in poorly lit areas. And its easy-open battery access door makes battery changes easy. A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter. Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments

Other Useful Features:

• Features a compact ergonomic design for one-handed operation
• Comes with a holster with probe holders for easy storage
• Features manual and automatic ranging
• Safety rated CAT III 600 V
• Fits into optional ToolPak™ magnetic hanger for hands-free operation.

Key Features:

• Ideal Digital Multimeter for “go/no-go” testing
• Features AutoVolt automatic AC/DC voltage selection
• Includes low input impedance to help prevent false readings due to ghost voltage
• Presents a large white LED backlight for working in poorly lit areas
• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average with elapsed time to record signal fluctuations.

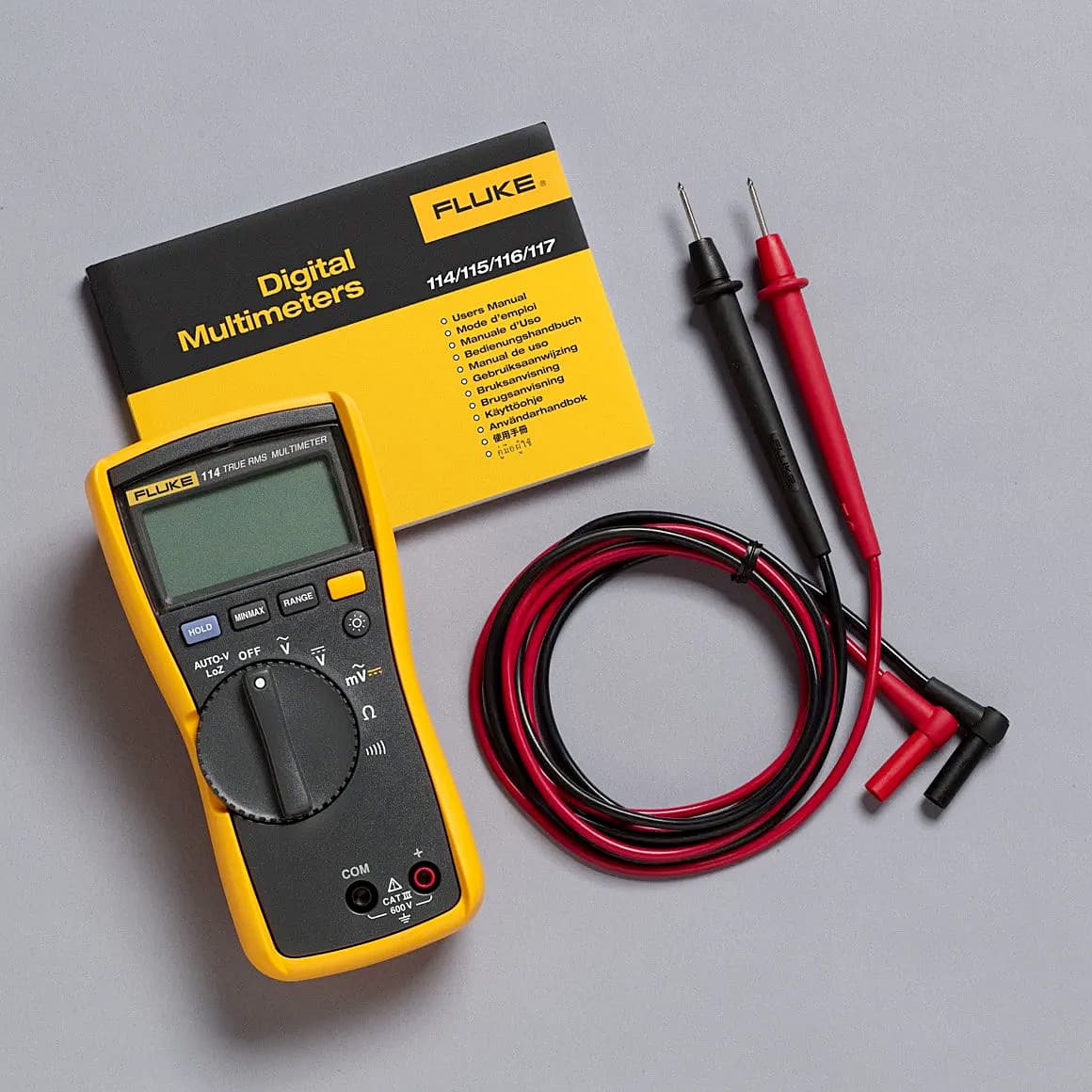

What's Included In This Package:

• Fluke 114 Digital Multimeter
• (1 pair) Test leads
• Holster
• Installed 9 V battery
• Quick reference guide

Specifications:

Accuracy specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
Accuracy	± ([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.00 V / 0.1 V
Accuracy	± ([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts1 True RMS	Range/resolution	600.0 mV / 0.1 mV
Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts1 True RMS	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
Accuracy	0.9% + 1
Range/resolution	40.00 MΩ / 0.01 MΩ
Accuracy	5% + 2
All ac voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical & General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Warranty	3 years
