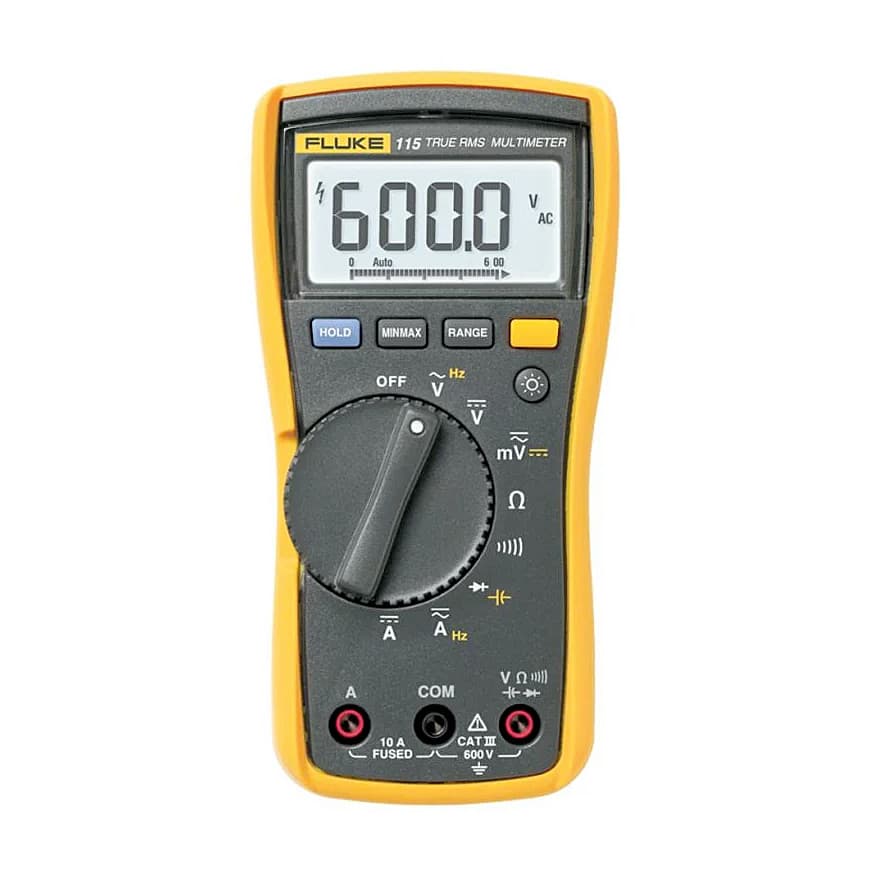

Fluke 115 6000 Counts / 600V True-RMS Field Technicians Digital Multimeter

Compact True-RMS Meter For Field Service Technicians

The Fluke 115 field technician’s digital multimeter measures True-RMS voltage and current with plus resistance, continuity, frequency, and capacitance to meet the needs of a wide variety of field service technicians.

The 115 digital multimeter offers the users one-handed operation and a backlit display. The large, easy-to-read digits offer a 6000-count resolution. The 115 provides Min/Max/Average with elapsed time to record signal fluctuations. It also measures:

• AC and DC voltage to 600V,
• AC and DC current to 10 A (20 A overload for 30-seconds max).

Features:

• Compact True-RMS digital multimeter for field service
• Easy one-handed operation of the meter
• Min/Max/Average to record signal fluctuations.

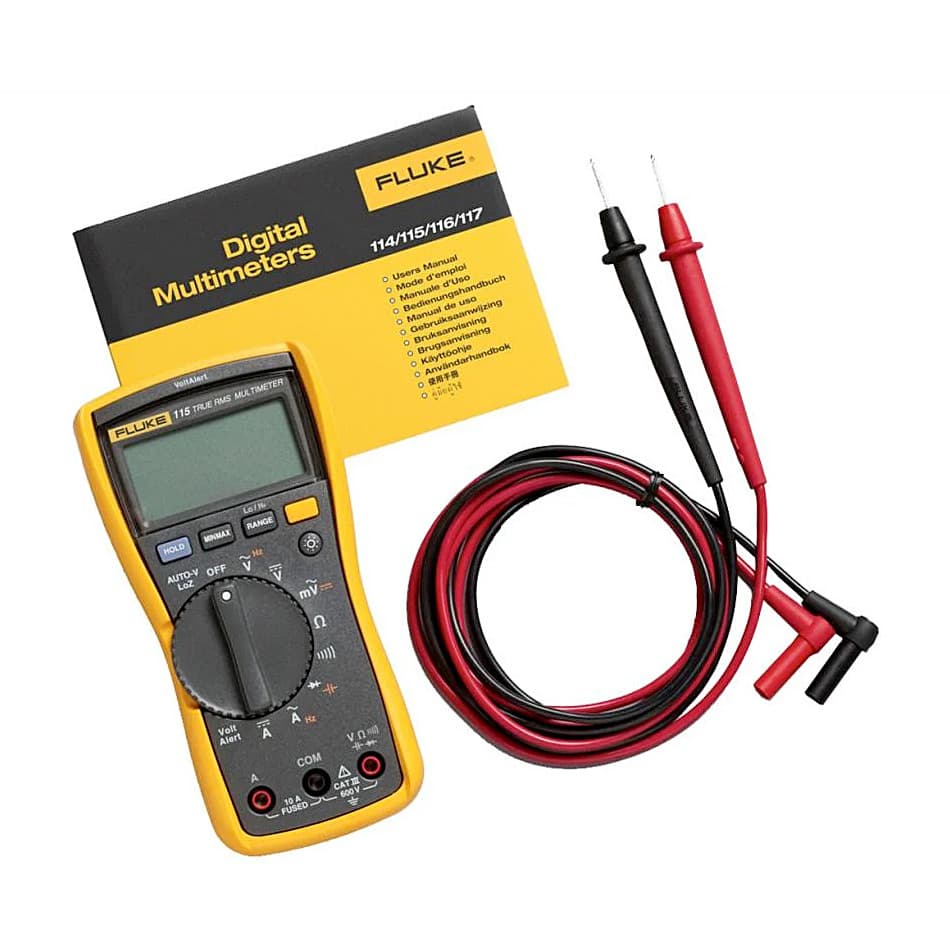

What's Included In This Package:

• Digital multimeter
• Holster
• Installed 9V battery
• 4 mm PVC-Insulated test lead
• Quick Reference Guide

Accuracy Specifications:

DC millivolts	Range/resolution	600.0 mV / 0.1 mV
Accuracy	± ([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
Accuracy	± ([% of reading] + [counts]): 0.5% + 2
AC millivolts1 True RMS	Range/resolution	600.0 mV / 0.1 mV
Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts1 True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
Accuracy	0.9% + 1
Range/resolution	40.00 MΩ / 0.01 MΩ
Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
Accuracy	1.9% + 2
Range/resolution	> 1000 μF
Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
Accuracy	1.5% + 3 20 A overload for 30-seconds max
DC amps	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
Accuracy	1.0% + 3 20 A overload for 30-seconds max
Hz (V or A input)2	Range/resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.01 Hz 9.999 kHz / 0.001 kHz 50.00 kHz / 0.01 kHz
Accuracy	0.1% + 2
All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. Frequency is AC coupled, 5Hz to 30 kHz for AC voltage. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. Temperature Range/Resolution: -40? to 752? / 0.2?.
