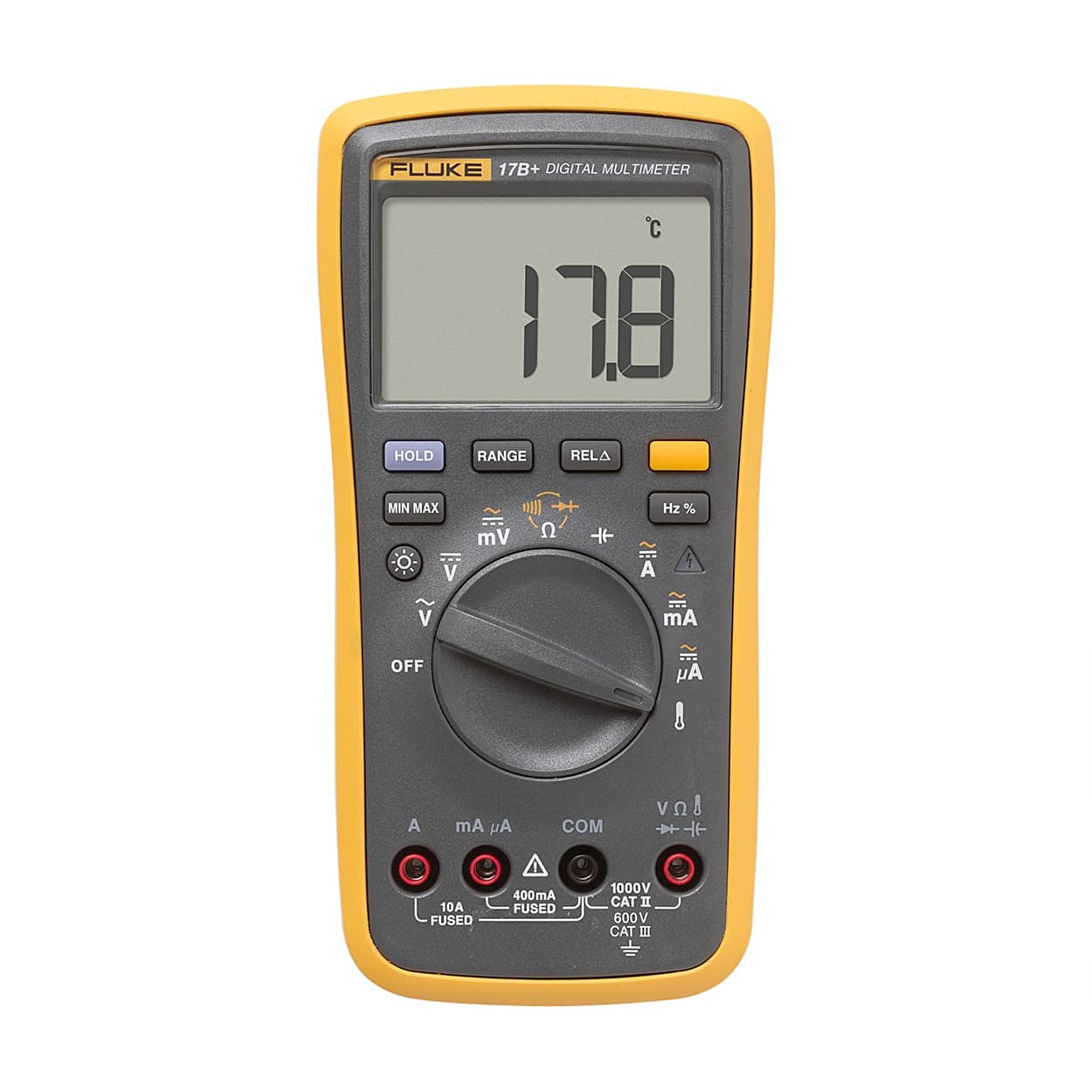

Fluke 17B+ 4000 Counts / 1000V Digital Multimeter

Your job requires that you have a rugged, reliable, and accurate digital multimeter. The Fluke 17B+ digital multimeter does all that and more. Common basic electrical measurements plus temperature, frequency, and duty cycle. Easy to use with one hand, even with gloves on, the Fluke 17B+ offers everything you need.

Features:

• 600 V Cat III safety rating
• 50% bigger display with bright white backlight
• Over-voltage indicator
• Frequency and temperature measurement
• Voltage, resistance, continuity, capacitance
• Input terminal for ac and dc current measurements to 10 A current
• Diode test, data hold.

Accuracy Specifications:

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0% to 75%. Accuracy specifications take the form of ±(% of Reading + Number of Least Significant Digits).

Function	Range	Resolution	Accuracy
AC volts (40 Hz to 500Hz)1	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0% + 3
DC volts	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5% + 3
AC millivolts	400.0 mV	0.1 mV	3.0% + 3
DC millivolts	400.0 mV	0.1 mV	1.0% + 10
Diode test2	2.000 V	0.001 V	10%
Resistance (Ohms)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3
Capacitance3	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5
Frequency1 Hz (10 Hz – 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1% + 3
Duty Cycle1	1% to 99%	0.1%	1% typical 4
AC current μA (40 Hz to 400 Hz)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
AC current mA (40 Hz to 400 Hz)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
AC current A (40 Hz to 400 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
DC current μA	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
DC current mA	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
DC current A	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
Temperature	50 °C- 400 °C 0 °C- 50 °C -55 °C- 0 °C	0.1C	2% ±1 °C ±2 °C 9% ±2 °C
Backlight	-	-	Yes
All ac, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10% and 90%.



Function	Overload protection	Input impedance (Nominal)	Common mode rejection ratio	Normal mode rejection ratio
AC volts	1000 V 1	>10 MΩ <100 pF	>60 dB at dc, 50 Hz or 60 Hz	-
AC millivolts	400 mV	>1MΩ, <100 pF	>80 dB at 50 Hz or 60 Hz	-
DC volts	1000 V 1	>10 MΩ <100 pF	>100 dB at dc, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
DC millivolts	400 mV	>1MΩ, <100 pF	>80 dB at 50 Hz or 60 Hz	-
1 106 V Hz Max



Relative humidity
Operating humidity	Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C ≤75% RH at 30 °C to 40 °C
40 MΩ range ≤80% RH at 10 °C to 30 °C ≤70% RH at 30 °C to 40 °C
Altitude
Operating	2000 m
Storage	12,000 m
Temperature coefficient	0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
IP rating	IP 40
Safety	IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
Electromagnetic environment	IEC 61326-1: Portable
Electromagnetic compatibility	Applies to use in Korea only
Class A equipment (industrial broadcasting and communication equipment) This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
