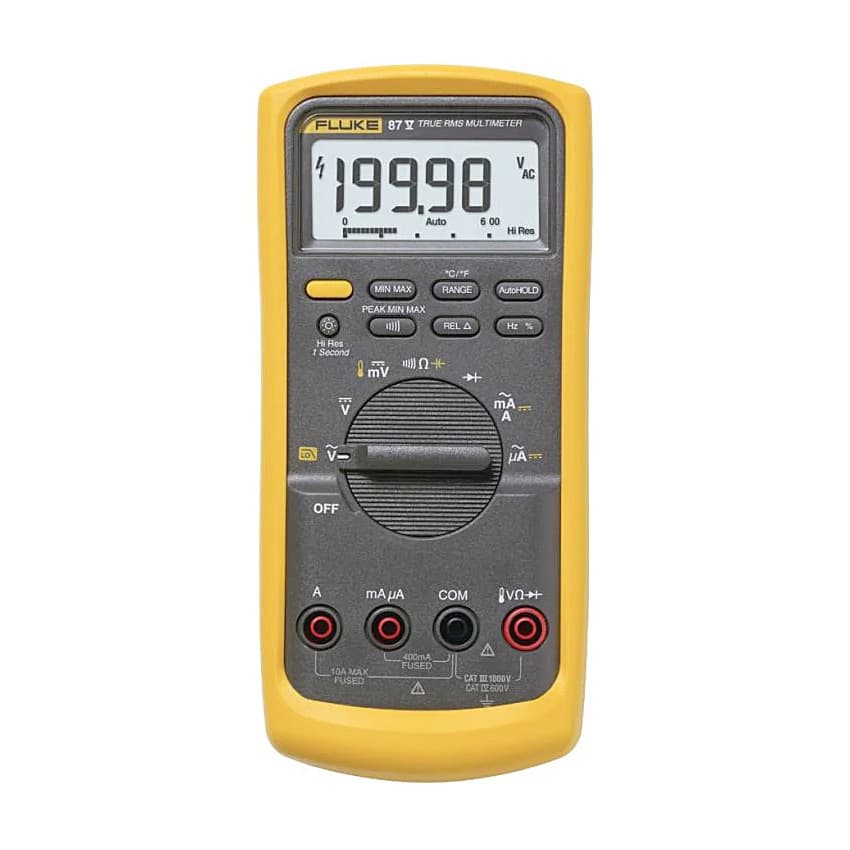

Fluke 87V/E2 6000 Counts / 1000V Industrial Electrician Combo Kit

Ideal for electricians, this combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, and includes essential accessories to make you even more productive. This kit offers 15% savings compared with the individual price of all the accessories. Plus you'll be working with the most trusted tools in the world.

All functionality of the 87V Industrial Digital Multimeter, plus:

• Fully insulated 3 mm exposed metal test probes for electricians working in high energy environments
• C35 Soft Carrying Case holds meter, test leads and other accessories

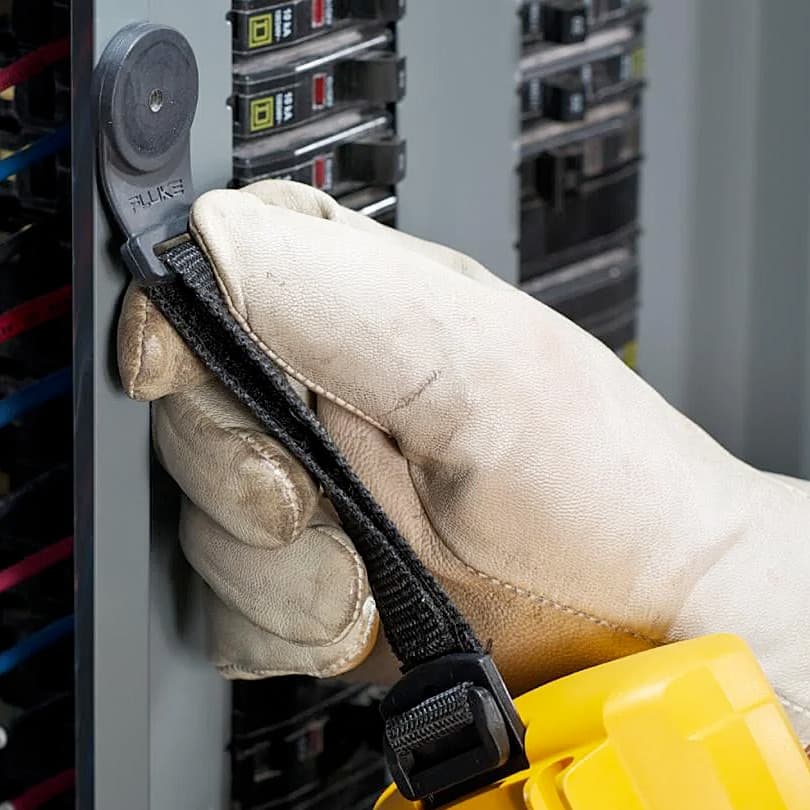

• TPAK magnetic hanging strap lets you attach the meter to any ferrous surface, such as cabinets and iron pipes.

Assembled In The USA, Lifetime Warranty:

The Fluke 87V/E2 Industrial Electrician Combo Kit is designed and assembled in the USA. The 87V multimeter is backed by a limited lifetime warranty, so you can rely on your DMM every time you take it out of your toolbox.

Solve The Difficult Problems:

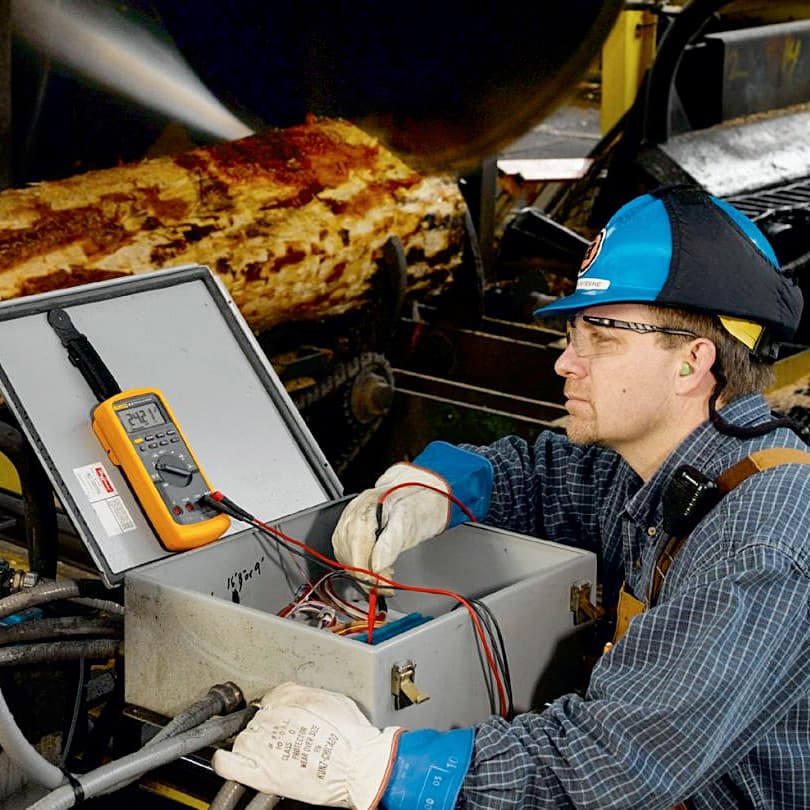

Working on VSDs/VFDs: Take accurate voltage, current, and frequency measurements on the output side of the drive at either the drive itself or at the motor terminals. Industrial troubleshooting: Get the resolution and accuracy you need to solve more problems on motor drives, in-plant automation, power distribution, and electromechanical equipment. Checking power quality: Capture glitches and spikes as short as 250 μs. Identify irregular signals.

Advanced Measurement Functions:

• True-RMS ac measurements
• 0.05% dc accuracy
• 6,000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution
• 10 A ac or dc (with test leads and current jacks) with 0.1 μA resolution
• Temperature measurements up to 1090 °C with included thermocouple probe
• Provides 10,000 µF capacitance range for components and motor caps
• Provides peak capture and Min/Max/Avg recording to capture intermittent as short as 250 µS
• Easy access door for fast battery changes without breaking the calibration seal
• Fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
• Presents a large digit display with bright, two-level backlight for easier reading in low light
• Includes an analog bar graph for fast changing or unstable signals
• Auto and manual ranging for maximum flexibility
• Relative mode to calculate and display the difference between two readings
• Holds readings on display for safe viewing after removing probes using Touch Hold technology

Electrical Safety:

All inputs are protected to CAT IV 600 V, CAT III 1000 V. They can withstand impulses in excess of 8.000 V and reduce risks related to surges and spikes.

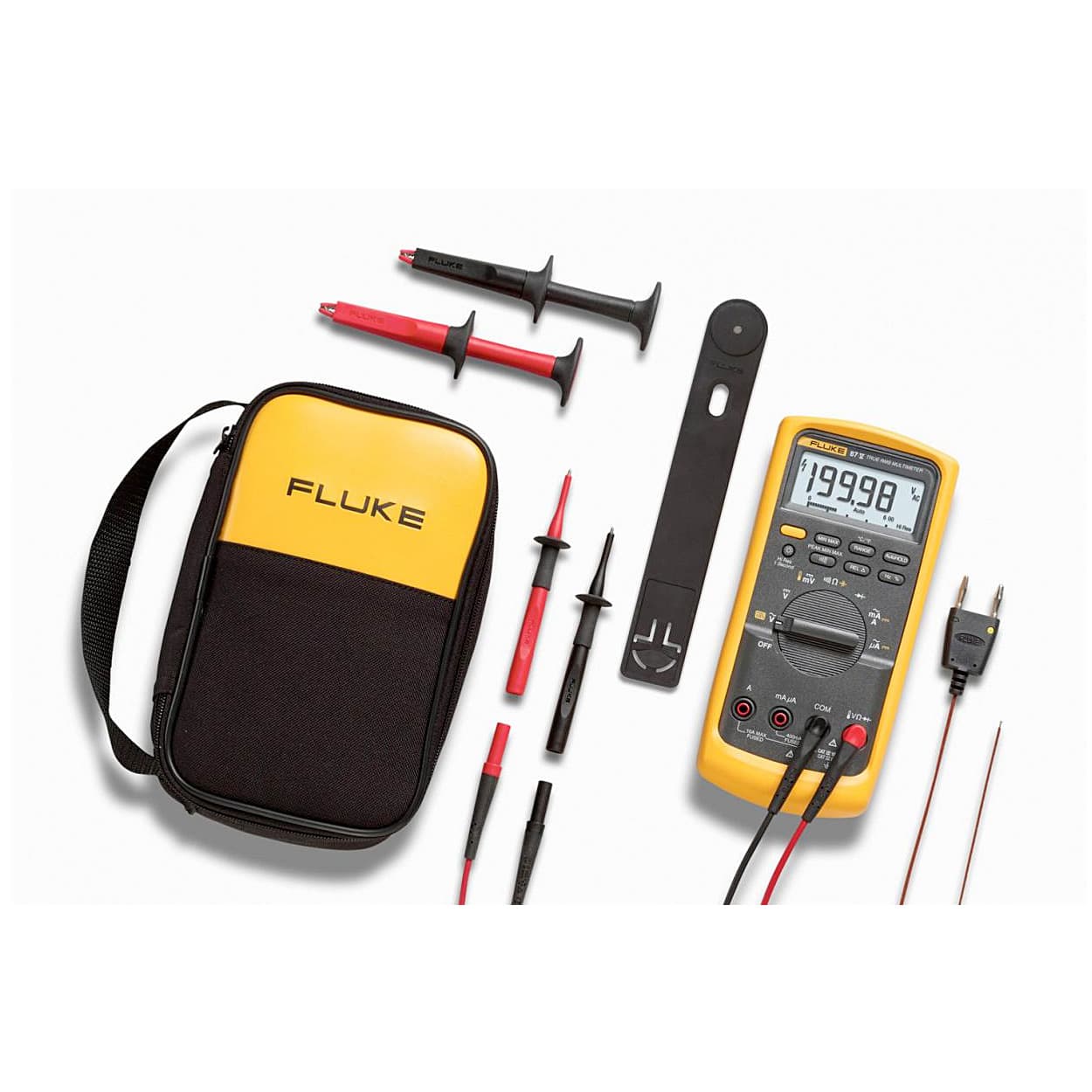

What's Included In This Package:

• 87V Industrial Multimeter
• TL224 SureGrip™ Insulated Test Leads
• AC220 SureGrip™ Alligator Clips
• TL238 SureGrip™ Test Probes
• ToolPak™ Magnetic Meter Hanging Kit
• 80BK-A DMM Temperature Probe
• C35 Soft Carrying Case
• 9V battery (installed)

Specifications:

Voltage DC	Maximum Voltage	1000 V
Accuracy	±(0.05% + 1)
Maximum Resolution	10 µV
Voltage AC	Maximum Voltage	1000 V
Accuracy	±(0.7% + 2) True RMS
AC Bandwidth	20 kHz with low pass filter; 3 db @ 1 kHz
Maximum Resolution	0.1 mV
Current DC	Maximum Amps	10 A (20 A for 30 seconds maximum)
Amps Accuracy	±(0.2% + 2)
Maximum Resolution	0.01 µA
Current AC	Maximum Amps	10 A (20 A for 30 seconds maximum)
Amps Accuracy	±(1.0% + 2) True RMS
Maximum Resolution	0.1 µA
Resistance	Maximum Resistance	50 MΩ
Accuracy	±(0.2% + 1)
Maximum Resolution	0.1Ω
Capacitance	Maximum Capacitance	9,999 µF
Accuracy	±(1% + 2)
Maximum Resolution	0.01 nF
Frequency	Maximum Frequency	200 kHz
Accuracy	±(0.005% + 1)
Maximum Resolution	0.01 Hz
Duty Cycle	Maximum Duty Cycle	99.9%
Accuracy	±(0.2% per khz +0.1%)
Maximum Resolution	0.1%
Temperature Measurement	-200.0°C - 1090°C -328.0°F - 1994.0°F excluding probe
80 BK Temperature Probe	-40.0°C - 260°C -40.0°F - 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum Conductance	60.00 nS
Accuracy	±(1.0% + 10)
Maximum Resolution	0.01 nS
Diode	Range	3 V
Resolution	1 mV
Accuracy	±(2% + 1)
Duty Cycle Range	Accuracy	Within ±(02% per kHz +0.1%)
