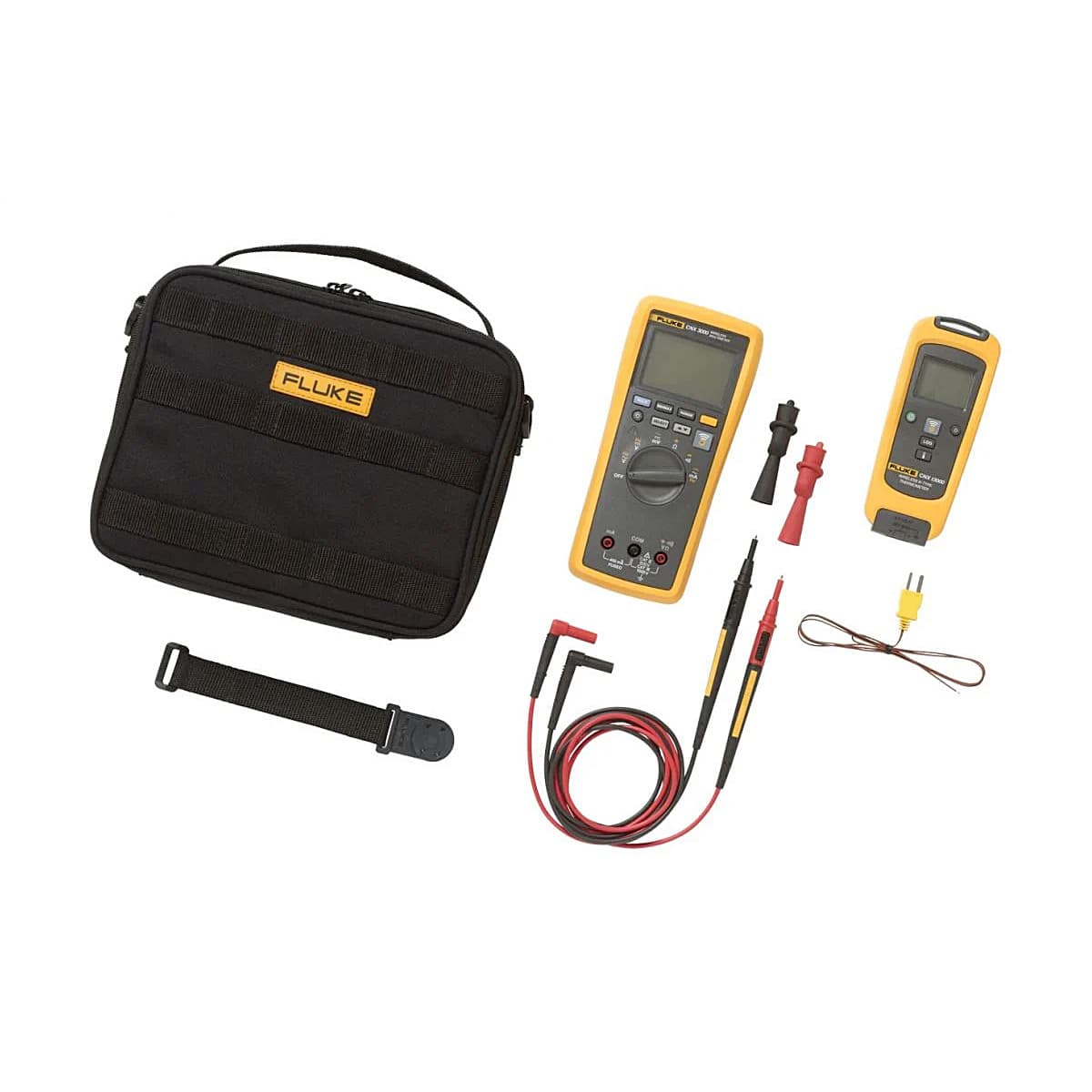

Fluke CNX T 3000 Temperature Measurement Kit

The CNX t3000 Temperature Measurement Kit is part of the team of Fluke wireless troubleshooting tools. Connect the CNX t3000 Wireless Temperature Module to your test point, and view the results up to 20 meters away on the CNX Wireless Multimeter. You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on several test points, simultaneously. Or use as a stand-alone measurement tool or combine with other CNX modules as a system for multiple measurements.

From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the CNX t3000 temperature module captures up to 65,000 sets of time-stamped min/max/avg readings, using the optional PC adapter. CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.

Features:

The CNX t3000 Temperature Measurement Kit provides the measurement of all common electrical and temperature parameters.

The CNX 3000 Wireless Multimeter offers:

• True RMS AC and DC voltage measurements to 1000V
• True RMS AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance, and frequency measurements
• MIN/MAX Recording
• CAT III 1000 V; CAT IV 600 V; IP54

The CNX t3000 K-Type Wireless Temperature Module provides:

• Temperature measurements from -200 °C to 1372 °C
• ± 0.5% accuracy
• Memory recording up to 65,000 readings
• Backlit LCD display
• IP42 with a thermocouple attached

The CNX wireless system can track up to 10 measurement modules simultaneously, with results sent to a PC for detailed analysis.

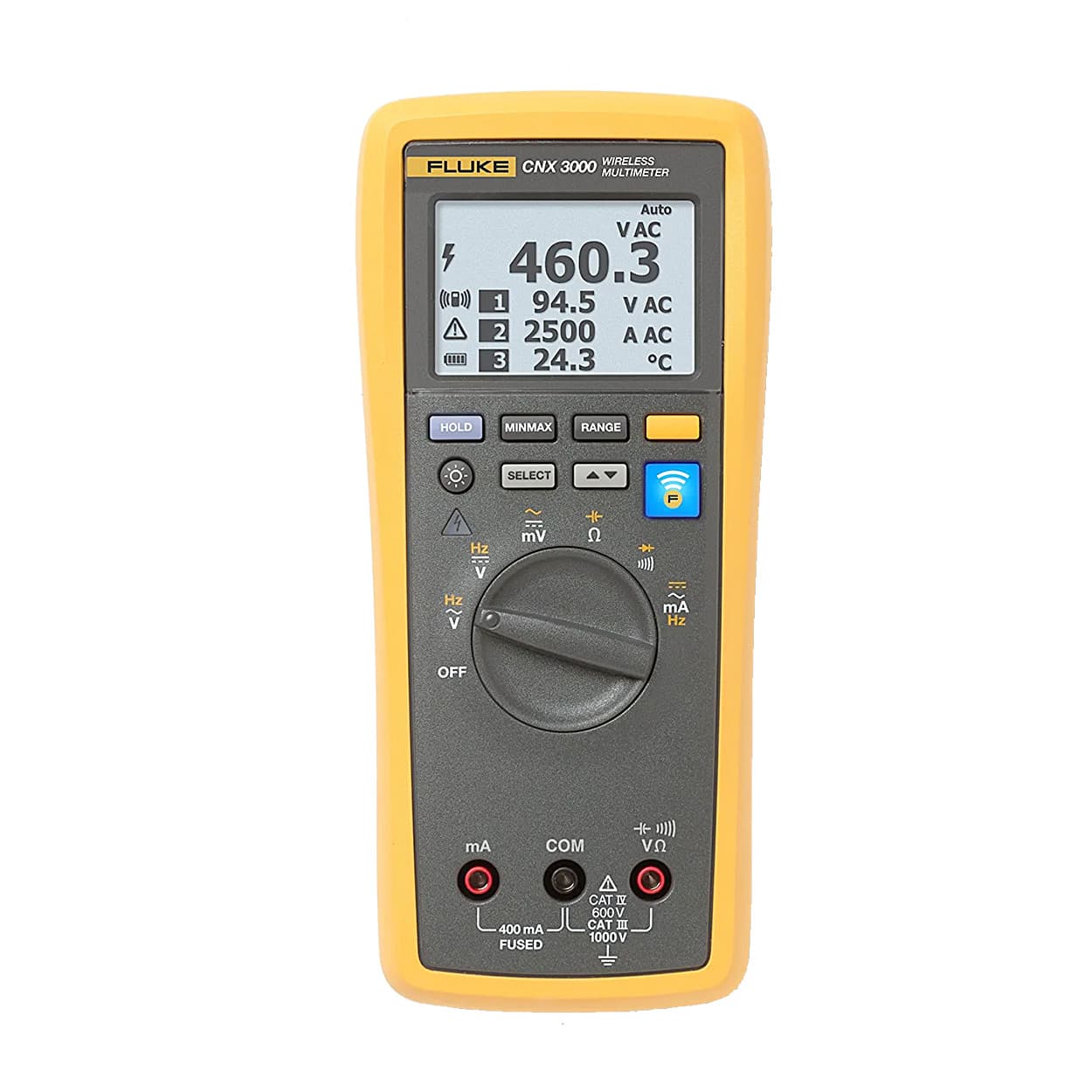

CNX 3000 Wireless Multimeter:

For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications take the form of ± ([ % of Reading ] + [ Number of least significant digits ]).


AC Voltage
Range ¹	Resolution	Accuracy
45 Hz to 500 Hz	500 Hz to 1 kHz
600.0 mV	0.1 mV	1.0 % + 3	2.0 % + 3
6.000 V	0.001 V
60.00 V	0.01 V
600.0 V	0.1 V
1000 V	1 V
All AC voltage ranges are specified from 1 % of range to 100 % of range. Crest factor of ≤ 3 at full scale p to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. For non-sinusoidal waveforms, add –(2 % of reading + 2 % full scale) typical, for crest factor up to 3.
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
Function	Range	Resolution	Accuracy
mV	600.0 mV	0.1 mV	0.09 % + 2
V	6.000 V	0.001 V	0.09 % + 2
60.00 V	0.01 V
600.0 V	0.1 V
1000 V	1 V	0.15 % + 2
Ω	600 Ω	1 Ω	Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
Ω	600.0 Ω	0.1 Ω	0.5 % + 2
6.000 kΩ	0.001 kΩ	0.5 % + 1
60.00 kΩ	0.01 kΩ
60.00 kΩ	0.1 kΩ
600.0 kΩ	0.001 MΩ
50.00 MΩ	0.01 MΩ	1.5 % + 3
Diode test	2.000 V	0.001 V	1 % + 2
μF	1000 nF	1 nF	1.2 % + 2
10.00 μF	0.01 μF
100.0 μF	0.1 μF
9999 μF¹	1 μF	10 % typical
Notes: ¹ In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2 % + 2.
AC and DC Current
Function	Range ¹	Resolution	Accuracy
mA AC (45 Hz to 1 kHz)	60.00 mA	0.01 mA	1.5 % + 3
400.0 mA ³	0.1 mA
mA DC ²	60.00 mA	0.01 mA	0.5 % + 3
400.0 mA	0.1 mA
Notes: ¹ All AC current ranges are specified from 5 % of range to 100 % of range. ² Input burden voltage (typical): 400 mA input 2 mV/mA. ³ 400.0 mA accuracy specified up to 600 mA overload.
Frequency
Range	Resolution	Accuracy ¹
99.99 Hz	0.01 Hz	0.1 % + 1
999.9 Hz	0.1 Hz
9.999 kHz	0.001 kHz
99.99 kHz	0.01 kHz
Notes: ¹ Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input Characteristics
Function	Overload Protection	Input Impedance (nominal)	Common Mode Rejection Ratio (1 kΩ unbalance)	Normal Mode Rejection
	1100 V RMS	> 10 MΩ < 100 pF	> 120 dB at DC, 50 Hz or 60 Hz	> 60 dB at 50 Hz or 60 Hz
	1100 V RMS	> 10 MΩ < 100 pF	> 60 dB, DC to 60 Hz
	1100 V RMS	> 10 MΩ < 100 pF	> 120 dB at DC, 50 Hz or 60 Hz	> 60 dB at 50 Hz or 60 Hz
Open circuit test voltage	Full scale	Typical short circuit current
	1100 V RMS	< 2.7 V DC	To 6 MΩ: < 0.7 V DC 50 MΩ: < 0.9 V DC	< 350 mA
	1100 V RMS	< 2.7 V DC	To 6 MΩ: 2.000 V DC	< 1.1 mA
Function	Overload Protection	Overload
mA	Fused, 44/100 A, 1000 V FAST Fuse	600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording
Function	Accuracy
DC functions	The specified accuracy of the measurement function ± 12 counts for changes > 350 mS in duration.
AC functions	The specified accuracy of the measurement function ± 40 counts for changes > 900 mS in duration.
General Specifications
Safety standards	US ANSI: ANSI/ISA 61010-1 / (82.02.01): 3rd edition CSA: CAN/CSA-C22.2 No 61010-1-12: 3rd edition CE European: IEC/EN 61010-1:2010
Electromagnetic compatibility EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : T68-FWCS IC:6627A-FWCS
Notes: • Accuracy is specified as ± ([% of reading] + [number of least significant digits]). • All ranges are autoranging. • Accuracy is specified from 5 % to 100 % of the range obtained by autoranging, from 18 °C to 28 °C.

Fluke CNX t3000 Wireless K-Type Temperature Module

Specifications
Range	-200 °C to 1372 °C
Resolution	0.1 °C
Accuracy	±[0.5 % + 0.3 °C] counts
Input terminals	K-Type mini
LCD w/backlight	3 digits
Log rate/interval	1 sec minimum/adjustable by PC
Battery type	2 AA, NEDA 15 A, IEC LR6
Battery life	400 hours
Memory	Record up to 65,000 readings
RF communications	2.4 GHZ ISM Band
RF communication range	20 Meters
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Temperature scale	ITS-90
Operating humidity	90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C
EMC	EN 61326-1:2006
Safety compliance	CAT I per IEC/EN 61010-1:2010 EN/IEC 61010-2-030:2010
Pollution degree	2
Temperature coefficient	0.01 % of reading +0.03 °C per °C
Certifications	CSA, FCC T68-FWCS IC:6627A-FWCS
Ingress Protection (IP) rating	IP42 with thermocouple attached
Size (HxWxD)	16.5 cm x 6.35 cm x 3.56 cm (6.5 in x 2.5 in x 1.4 in)
