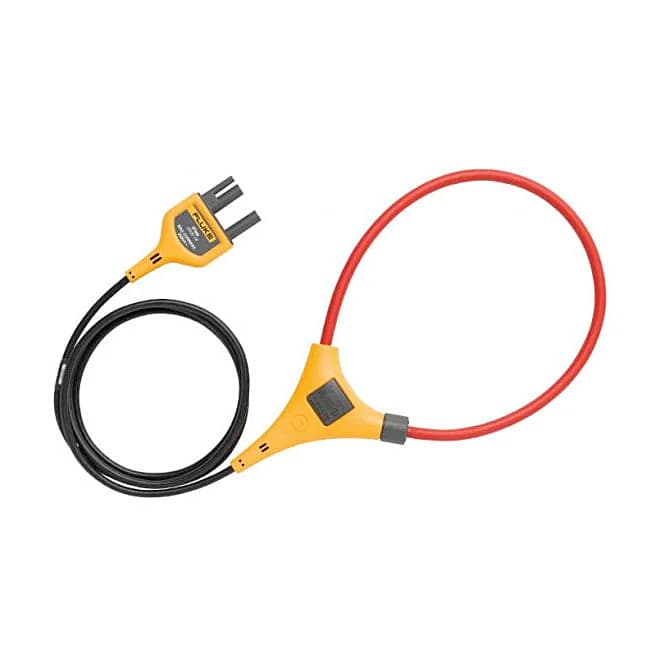

Fluke i2500-18 iFlex 2500A Flexible Current Probes

The Fluke iFlex® flexible current probes expand the measurement range of the select Fluke meters to 2500 A AC while providing the ultimate measurement flexibility. The iFlex® probes connect directly to the meter, displaying current measurements without error-prone scaling factors.

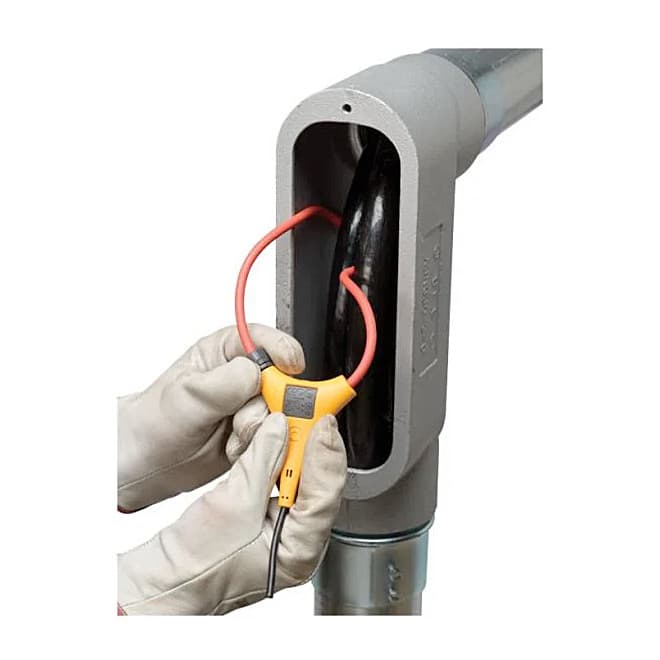

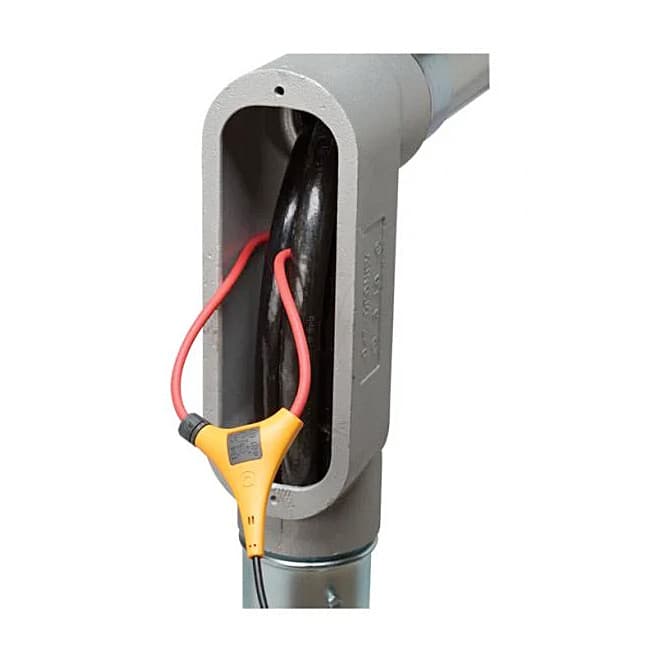

The 1.8 m (6 ft) cord allows separation between the measurement location and the clamp meter making it easier to view the display. The large loop size and thin cross-section allow measurement of awkward-sized conductors and improved wire access in crowded spaces. Available in 25 cm (10 in) and 45 cm (18 in) sizes.

Features:

• Expands the Measurement Range to 2500 A AC while Providing Increased Display Flexibility, Ability to Measure Awkward Sized Conductors, and Improved Wire Access
• CAT IV 600 V, CAT III 1000 V
• 7.5 mm Coil Diameter Allows Measurement in Tight Spaces
• Ergonomic Design Allows Easy Operation with One Hand
• 1.8 m (6 ft) Cable
• Safety Conformance: IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V
• Three-Year Warranty.

Specifications:

	Range	Resolution	Accuracy
AC Current1	2500 A	0.1 A	3% ± 5 digits2
Frequency1	500 Hz	0.1 Hz	0.5% ± 5 digits
External magnetic field rejection (with cable >10 cm from the coupling)	40 dB
Inrush1
Safety rating	CAT III 1000 V, CAT IV 600 V
1. When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy. 2. For position accuracy at non-optimum positions, see Position sensitivity specifications table “A”
Position Sensitivity Specifications
Distance from Optimum	i2500-18	Additional iFlex® Error
A	1.4 in (35.6 mm)	±0.5%
B	2.0 in (50.8 mm)	±1.0%
C	2.5 in (63.5 mm)	±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature.
