₹3,99,018 (Incl. of all taxes)
₹3,38,151 + ₹60,867 GST (18%)
3 Business Days

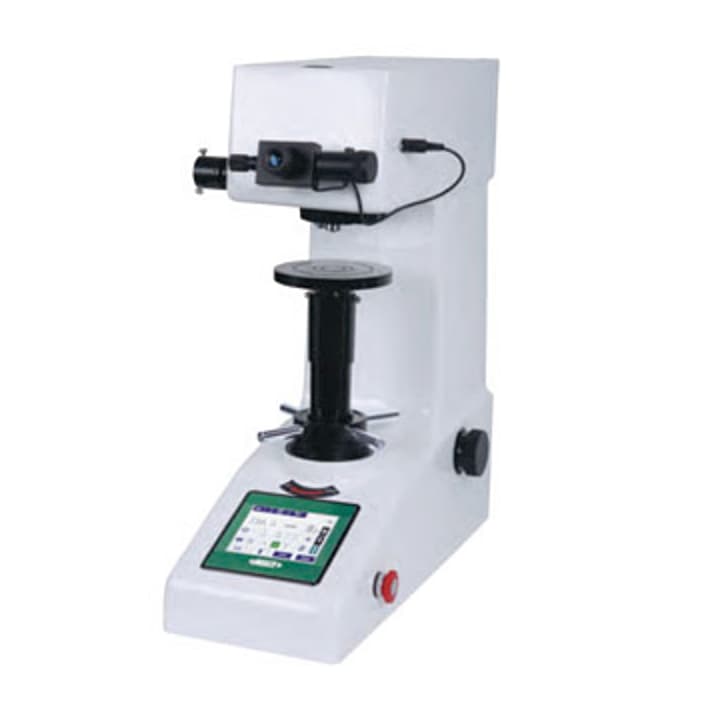

| Main unit | 1 pc |
| 10X, 20X Objective | 1 pc of each |
| Vickers Indenter | 1 pc |
| Hardness Test Block | 2 pcs |

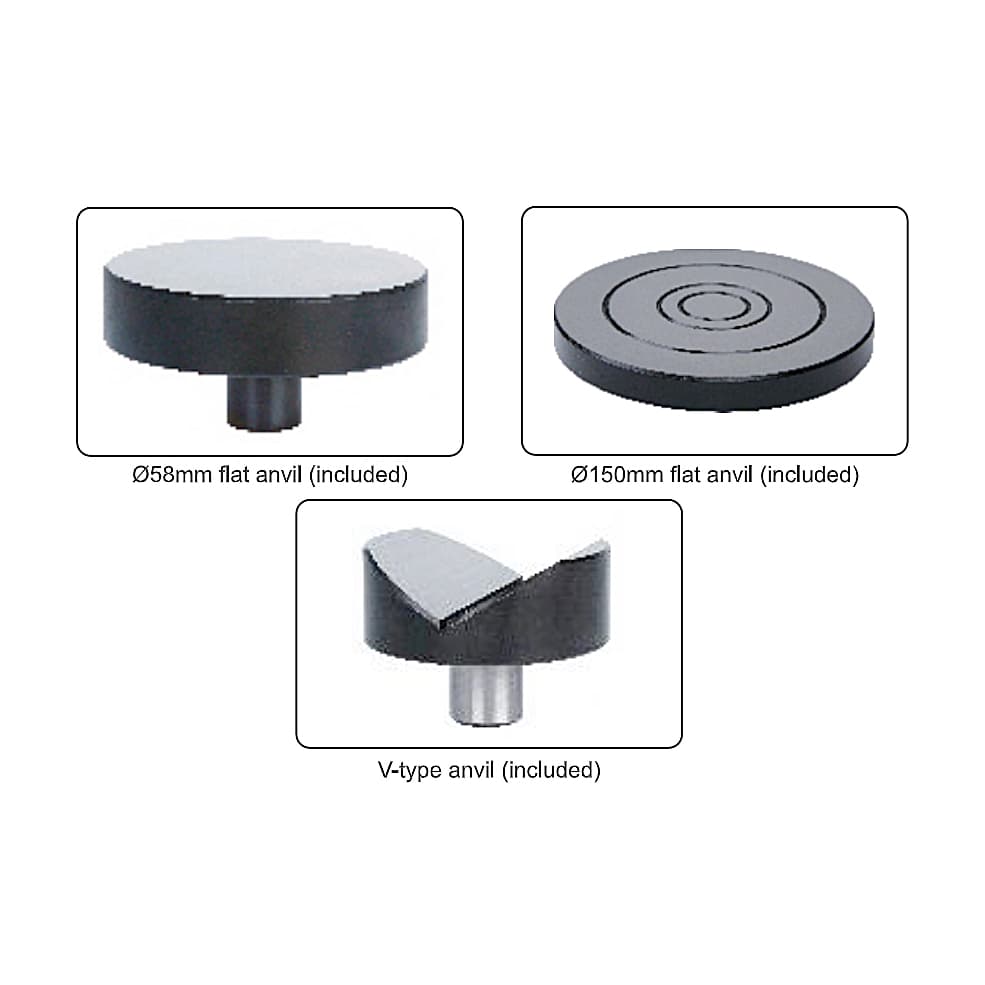

| Ø58mm Flat Anvil | 1 pc |
| Ø150mm Flat Anvil | 1 pc |
| V-type Anvil | 1 pc |
| Anti-dust Cover | 1 pc |
| Test Force | 0.3kgf, 0.5kgf, 1kgf, 3kgf, 5kgf, 10kgf |
|---|---|
| Vickers Scales | HV0.3, HV0.5, HV1, HV3, HV5, HV10 |
| Range (HV) | 8 - 3000HV |
| Length Measurement Resolution | 0.5μm |
| Objective/Indenter Switch | Motor Driven Turret |
| Stage Lifting | Manual |
| Load Control | Automatic (load/dwell/unload) |
| Load Dwell Time | 1 - 60 Second |
| Objective | 10X, 20X |
| Eyepiece |
| 10X |
| Total Magnification | 100X (For Measurement or Observation), 200X (For Measurement) |
|---|
| Max. Workpiece Height | 175 mm |
|---|
| Max. Testing Width | 135 mm (From the center of indenter to the wall of main body) |
|---|
| Power Supply | 220V, 50/60Hz |
|---|
| Dimension | 580 x 320 x 660 mm |
|---|
