₹2,72,496 (Incl. of all taxes)
₹2,30,929 + ₹41,567 GST (18%)
3 Business Days

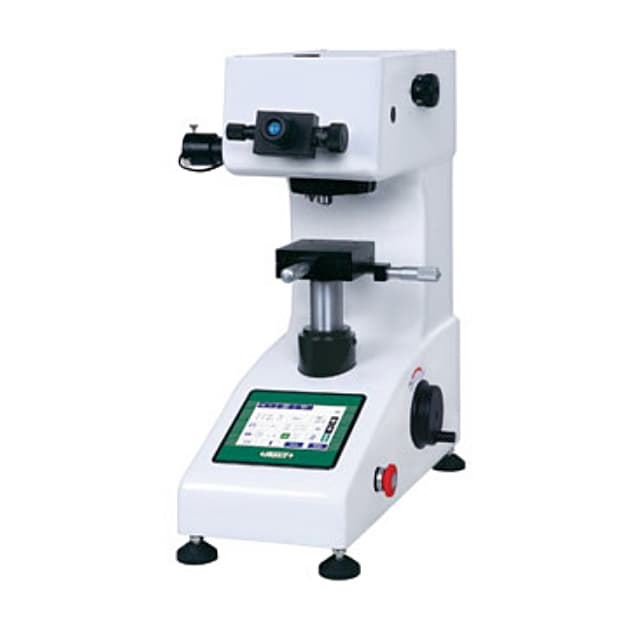

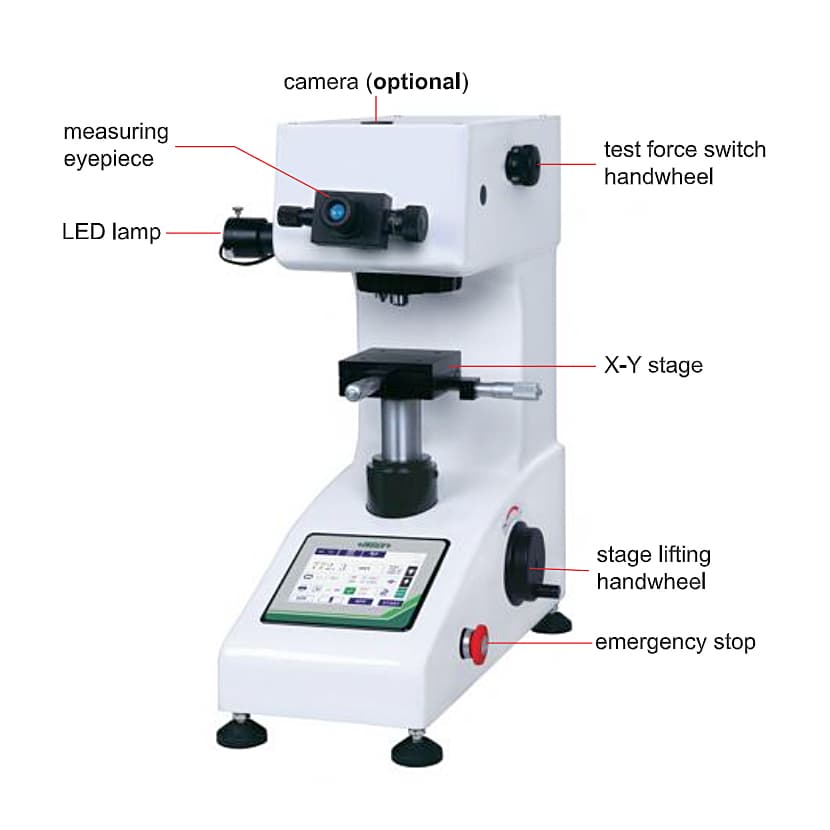

| Main unit | 1 pc |
| 10X, 40X Objective | 1 pc for each |
| Micro Vickers Indenter | 1 pc |
| Hardness test block 400~500HV 0.2 | 1 pc |
| Hardness test block 400~500HV 1 | 1 pc |

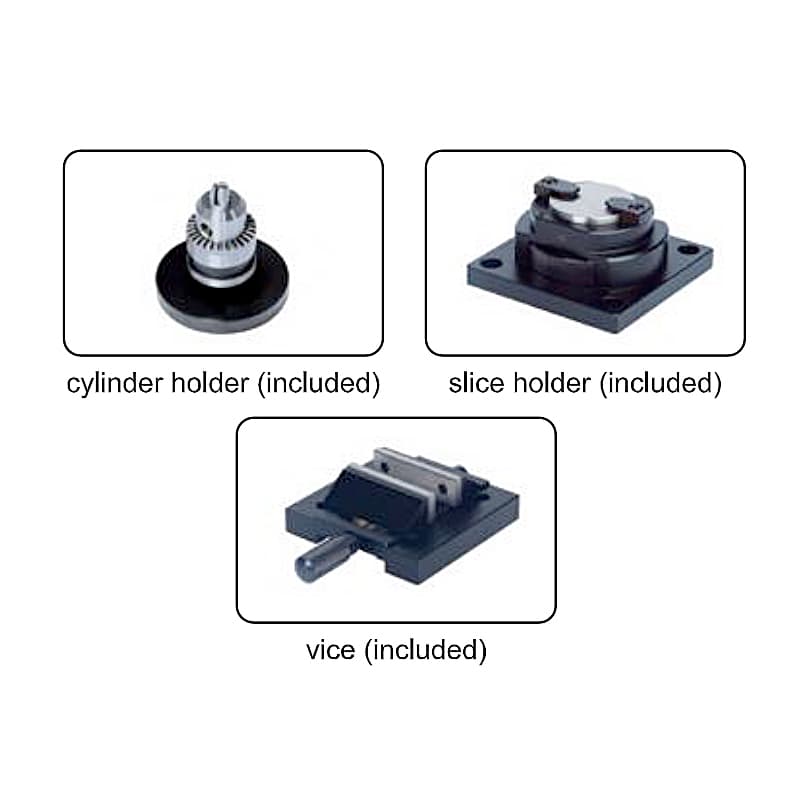

| Vice | 1 pc |
| Slice Holder | 1 pc |
| Cylinder Holder | 1 pc |
| Anti-dust Cover | 1 pc |
| Range | 5 - 3000 HV |
|---|---|
| Length Measurement Resolution | 0.5μm |
| Objective/Indenter Switch | Motor Driven Turret |
| Stage Lifting | Manual |
| Load Control | Automatic (load / dwell / unload) |
| Load Dwell Time | 1 - 60 Second |
| Objective | 10X, 40X |
| Eyepiece | 10X |
| Total Magnification |
|---|
| 100X (For Measurement or Observation), 400X (For Measurement) |
| Max. Workpiece Height | 90 mm |
|---|
| Max. Testing Width | 95 mm (From the center of indenter to the wall of main body) |
|---|
| X-Y Stage | 100 x 100 mm (Dimensions) / 25 x 25 mm (Travel Range) |
|---|
| Power Supply | 220V, 50/60Hz |
|---|
| Dimension | 510 x 290 x 570 mm |
|---|
₹ 1,47,695Was ₹ 2,08,021inclusive of GST
Save 29%
