₹3,78,244 (Incl. of all taxes)
₹3,20,546 + ₹57,698 GST (18%)
3 Business Days
| Main unit | 1 pc |
| 10X, 40X Objective | 1 pc for each |
| Micro Vickers Indenter | 1 pc |
| Hardness test block 400~500HV 0.2 | 1 pc |
| Hardness test block 700~750HV 1 | 1 pc |

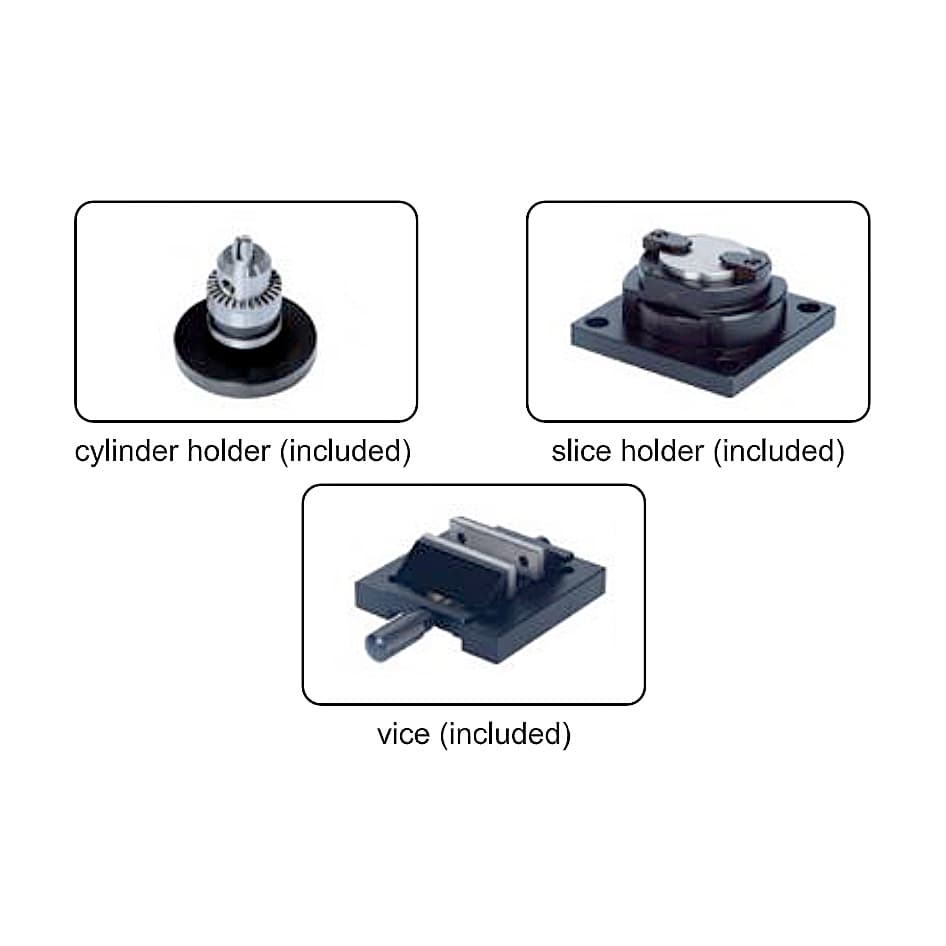

| Vice | 1 pc |
| Slice Holder | 1 pc |
| Cylinder Holder | 1 pc |
| Anti-dust Cover | 1 pc |
| Range | 5 - 3000 HV |
|---|---|
| Length Measurement Resolution | 0.025μm |
| Objective/Indenter Switch | Motor Driven Turret |
| Stage Lifting | Manual |
| Load Control | Automatic (load / dwell / unload) |
| Load Dwell Time | 1 - 60 Second |
| Objective | 10X, 40X |
| Eyepiece |
| 10X |
| Total Magnification | 100X (For Measurement or Observation), 400X (For Measurement) |
|---|
| Max. Workpiece Height | 90 mm |
|---|
| Max. Testing Width | 95 mm (From the center of indenter to the wall of main body) |
|---|
| X-Y Stage | 100 x 100 mm (Dimensions) / 25 x 25 mm (Travel Range) |
|---|
| Data Output | Built-in Printer |
|---|
| Power Supply | 220V, 50/60Hz |
|---|
| Dimension | 510 x 290 x 570 mm |
|---|
