₹19,633 (Incl. of all taxes)
₹16,638 + ₹2,995 GST (18%)
MRP was MRP ₹26,836
Save 38%
3 Business Days
1
–
| Magnification | Focus Distance | View Field (mm) | Accuracy |
| 50X | 21 mm | 8.1x6.4 | 30 um |
| 100X | 13 mm | 3.9x3.1 | 15 um |
| 150X | 16 mm | 2.6x2.1 | 10 um |
| 200X | 19 mm | 1.8x1.5 | 8 um |
| Green filter | ISM-PM-GREEN |
| Yellow filter | ISM-PM-YELLOW |
| Blue filter | ISM-PM-BLUE |

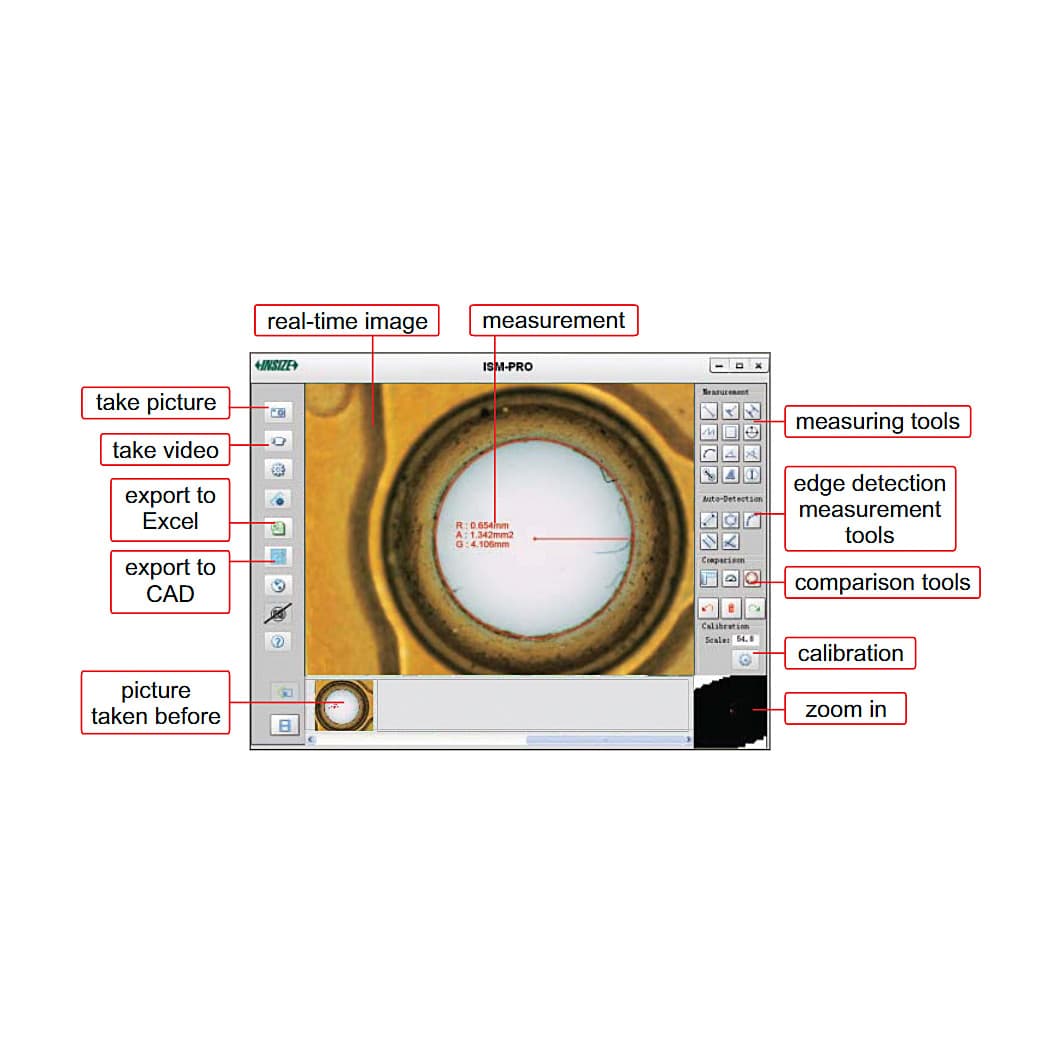

| measure the length of line or distance between two points |
| measure area of the rectangle |
| measure distance between two circles |
| measure distance between two parallel lines |
| measure angle with two lines |
| measure distance between point and line |
| measure radius, length, and angle of the arc |
| add number with a circle |
| measure the length of continuous line |
| measure angle with three points |
| measure radius, girth, and area of a circle |
| add text |
| detect two parallel lines automatically and calculate distance |
| detect circle automatically, and calculate radius, girth, and area |
| detect arc automatically, and calculate the radius, angle, and arc length |
| detect two lines automatically, and calculate the angle |
| detect line automatically, and calculate length. |
| Magnification | 10X~200X |
|---|---|
| Stand | Standard |
| Pixel | 2M (resolution: 1600x1200) |
| Illumination | Built -in adjustable LED |
| Power Supply | USB 2.0 cable (voltage required: 5+/-0.1V) |
