₹1,55,642 (Incl. of all taxes)
₹1,31,900 + ₹23,742 GST (18%)
MRP was MRP ₹2,32,302
Save 33%
3 Business Days
90112000
| Objective Magnification | Image Magnification | Measuring Accuracy |
| 0.75X | 15X | +/- 8um |
| 1X | 20X | +/- 7um |
| 1.5X | 30X | +/- 6um |
| 2X | 40X | +/- 6um |
| 2.5X | 50X | +/- 6um |
| 3X | 60X | +/- 5um |
| 3.5X | 70X | +/- 5um |
| 4X | 80X | +/- 4um |
| 4.5X | 90X | +/- 4um |
| 5X | 100X | +/- 4um |
| 1X camera adapter | ISM-DL-CA1X |
| 2X auxiliary objection | ISM-DL-OB2X |
| X-Y glass stage (travel:74x60mm) | ISM-DL-STAGE |
| X-Y metal stage | ISM-DL-STAGE1 |
| LED light | see details |
| Auxiliary objective | see details |

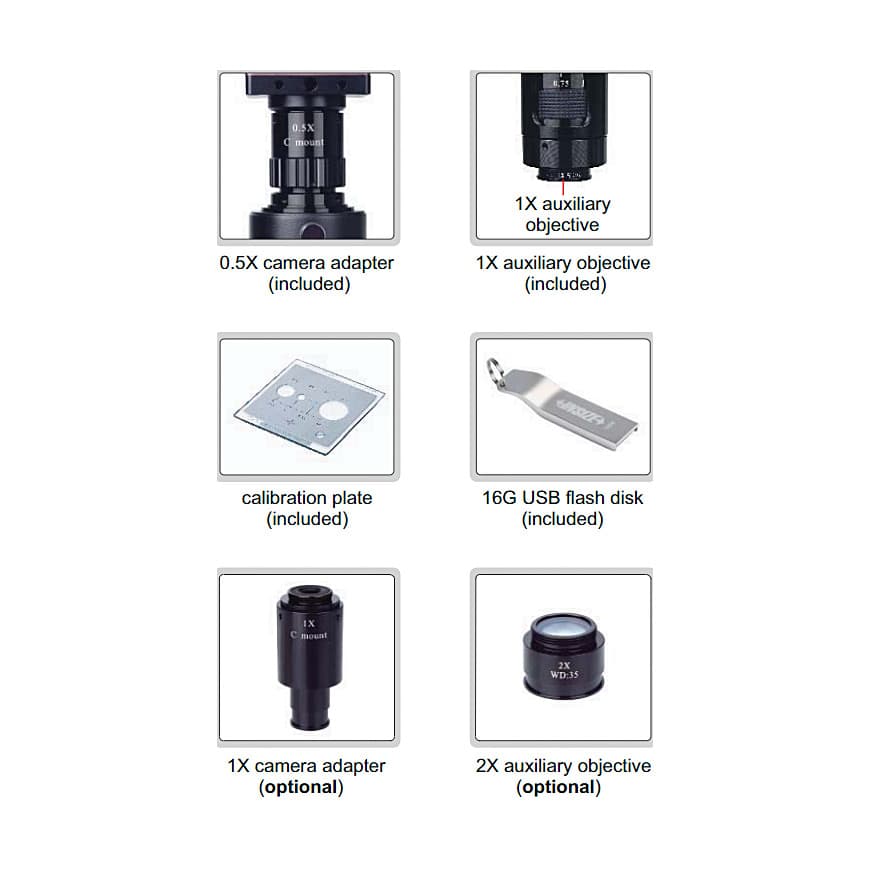

| Main unit | 1 Pc |
| 0.5X camera adapter | 1 Pc |
| 1X auxiliary objective | 1 Pc |
| Calibration plate | 1 Pc |
| 16G USB flash disk | 1 Pc |
| White/black plate | 1 Pc |
| Mouse | 1 Pc |
| HDMI cable | 1 Pc |
| Power adapter | 3 Pcs |
| measure the length of line or distance between two points |
| measure angle from horizontal line |
| measure radius, diameter, girth, and area of a circle with three points |
| measure the minimum distance between point and circle |
| measure the minimum distance between line and circle |
| measure the minimum distance between two circles |
| add text |
| measure distance between multiple parallel lines |
| measure angle from the vertical line |
| measure radius, diameter, and area concentric of circles |
| measure distance between point and center of the circle |
| measure distance between line and center of the circle |
| measure center distance between two circles |
| measure radius, diameter, girth, and area of a circle with two points |
| measure radius, diameter, girth, and area of a circle with two points |
| measure the length of line or distance between two points in the horizontal direction |
| measure girth and area of a polygon |
| measure length, width, girth, and area of a rectangle |
| measure the maximum distance between point and circle |
| measure the maximum distance between line and circle |
| measure the maximum distance between two circles |
| measure distance between two parallel lines |
| measure distance between point and line |
| measure distance between three parallel lines |
| measure the radius, length, and angle of the arc |
| measure angle of two lines |
| crosshair. |
| Magnification | 15X~100X |
|---|---|
| Sensor | 1/2" CMOS |
| Pixel | 2M |
| Resolution | 1920x1080 |
| Frame rate | 60 fps |
| Output | HDMI |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 570x300x430mm |
