₹75,622 (Incl. of all taxes)
₹64,086 + ₹11,536 GST (18%)
3 Business Days
| Image Magnification | View Field | Measuring Accuracy |
| 6.6X | 42.0x24.0 mm | +/- 0.02 mm |
| 7.3X | 37.8x21.5 mm | +/- 0.02 mm |
| 8.9X | 30.9x16.2 mm | +/- 0.02 mm |
| 10.8X | 25.7x14.5 mm | +/- 0.02 mm |
| 13.8X | 20.1x10.8 mm | +/- 0.02 mm |
| 15.2X | 18.2x10.0 mm | +/- 0.02 mm |
| 18.5X | 15.0x8.5 mm | +/- 0.01 mm |
| 25.2X | 11.1x6.1 mm | +/- 0.01 mm |
| 31.5X | 8.8x5.0 mm | +/- 0.01 mm |
| 39.4X | 7.0x4.0 mm | +/- 0.01 mm |

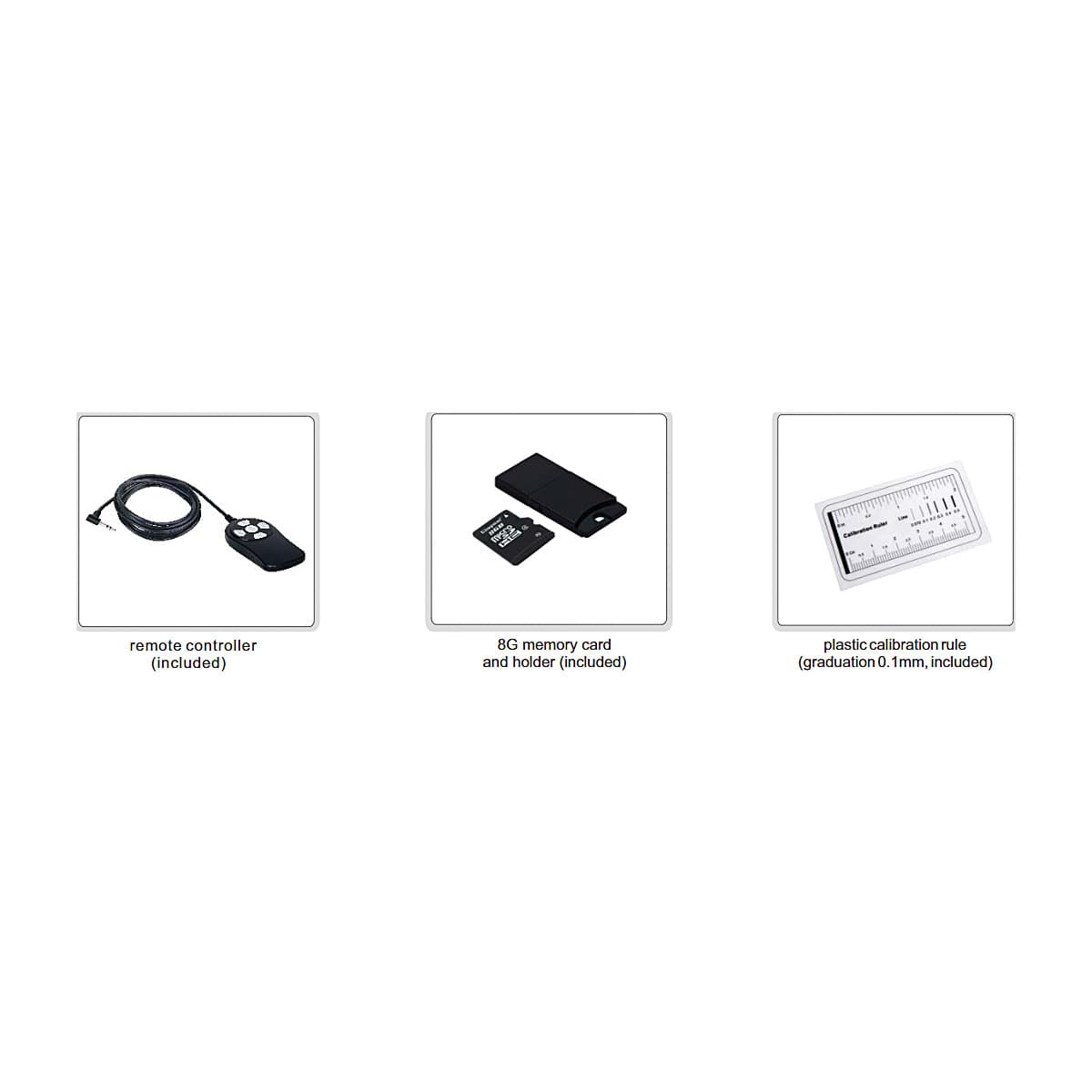

| Main unit | 1 Pc |
| 8 G Memory card and holder | 1 Pc |
| Plastic calibration rule | 1 Pc |
| White/black plate | 1 Pc |
| Remote controller | 1 Pc |
| USB cable | 1 Pc |

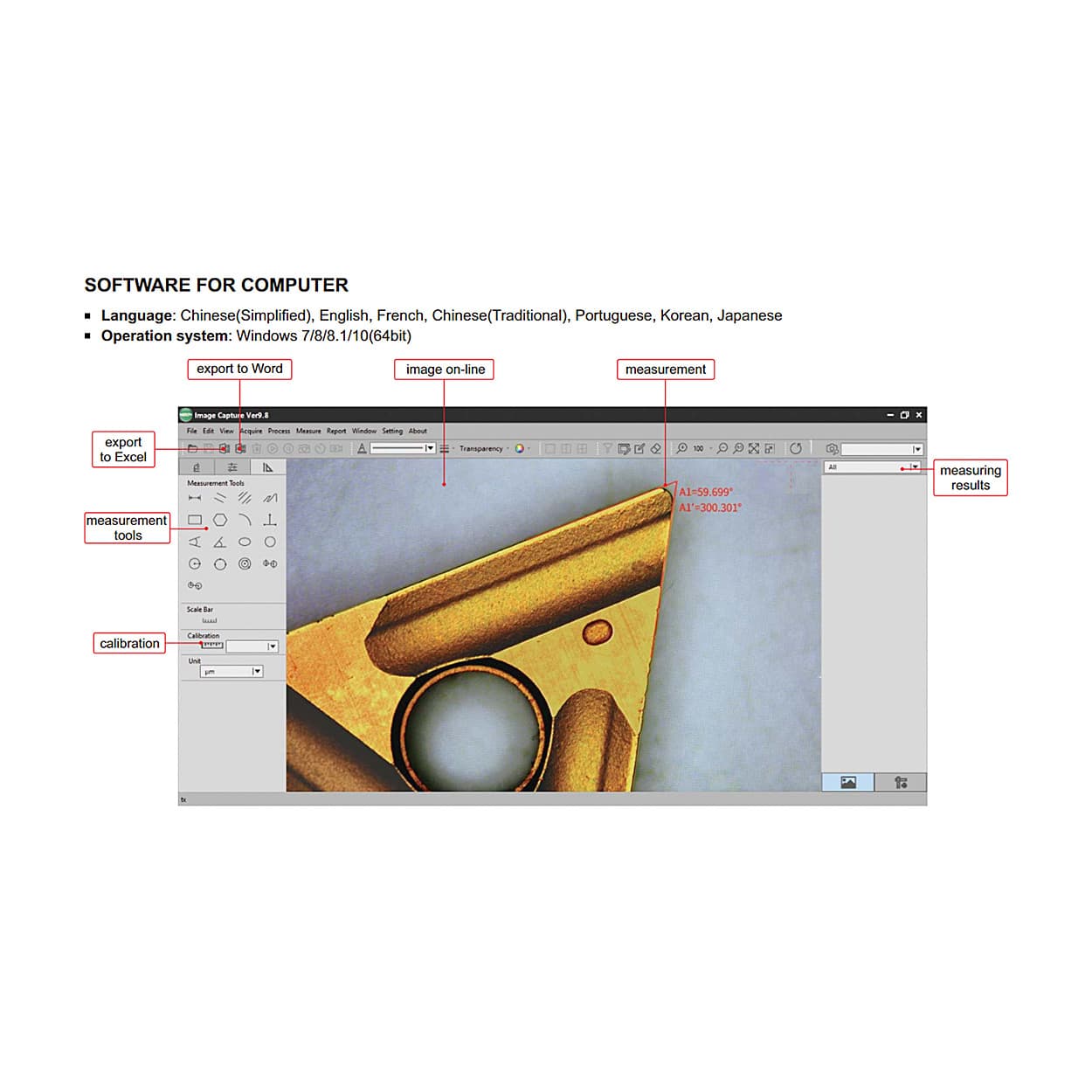

| Measuring software | 1 Pc |
| Power adapter | 1 Pc |
| straight line distance measurement |
| rectangular measurement |
| four-point perspective measurement |
| circle measurement by radius |
| center distance measurement by 3-point |
| parallel lines distance measurement |
| polygon measurement |
| angle measurement |
| circle measurement Oby 3-point |
| center distance between parallel lines measurement |
| arc measurement |
| ellipse measurement |
| torus measurement |
| polyline line measurement |
| three-vertical-line measurement |
| round measurement |
| center distance measurement by radius |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
| Arm type | straight |
|---|---|
| Senor | 1/2.8" CMOS |
| Pixel | 2M |
| Resolution | 1920x1080 |
| Exposure | real-time auto,single auto manual adjustment |
| White balance | real-time auto, single auto manual RGB adjustment |
| Record formate | Picturs: JPG video: Mov |
| Record media | memory card |
| Magnification | 6.6~39.4X |
| Working distance | 46~186mm |
| View field | 7x4~42x24mm |
| Power supply | DC12V 3A |
