- Measurement Range: 170-960HLD, 7-88.5HRA, 1.2-140HRB, 1-74HRC, 18-1027HB, 3.9-112HS, 42-1220HV, 89-3300MPa
- Resolution: 1HV, 0.1HRA, 0.1HRB, 0.1HRC, 1HB, 0.1HS, 1MPa
- Hardness Scale: HLD, HRA, HRB, HRC, HB, HS, HV, MPa
- One-handed operation is possible, making test easier and faster
- Suitable for testing hardness in small space
- All directions test, do not need to set impact direction

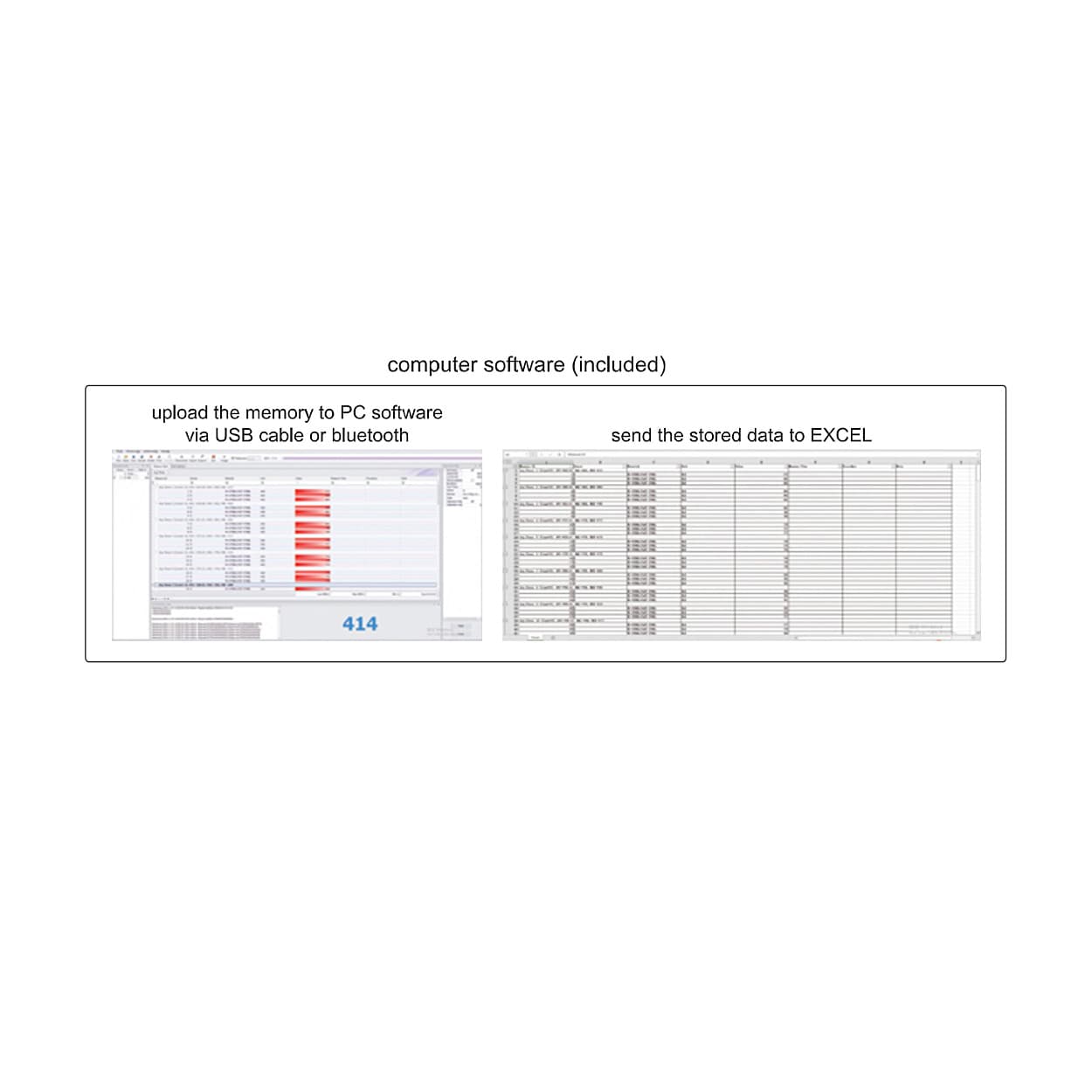

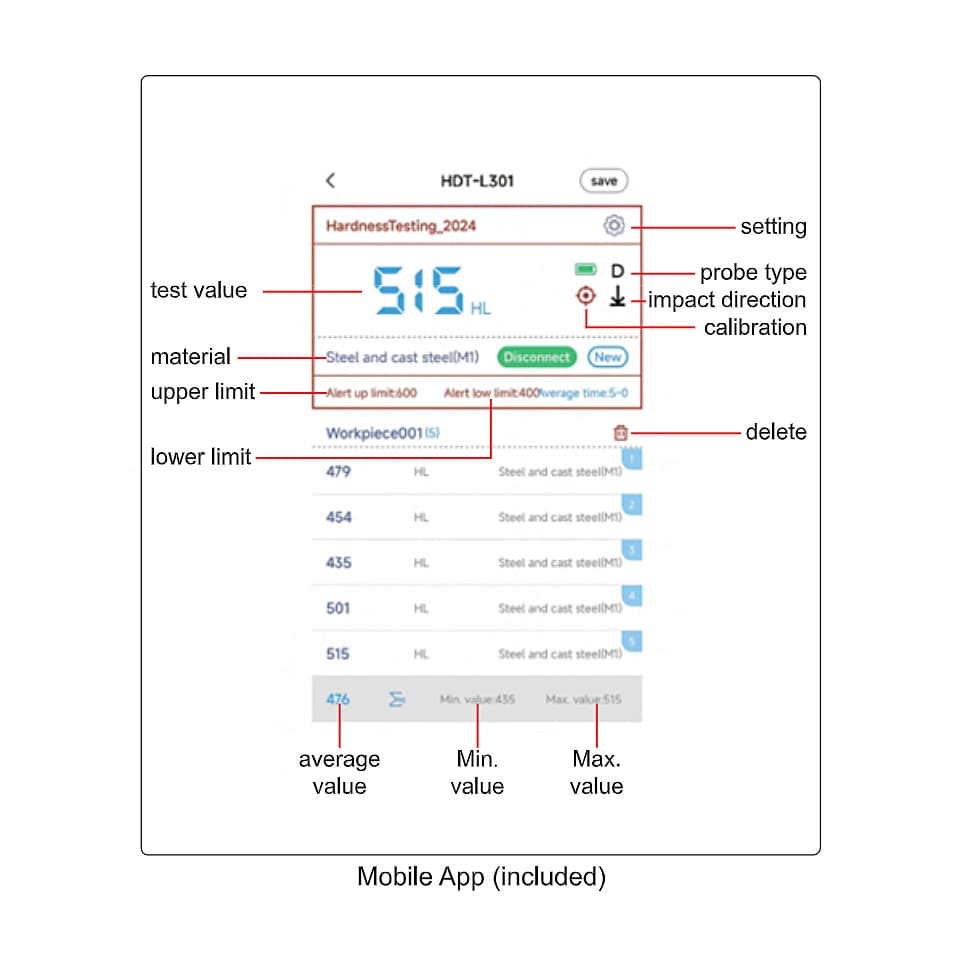

- The hardness value can be displayed on hardness tester and the cell phone App at the same time. It can also be connected by computer
- Automatic shutdown
- Support unlimited storage and sharing of test reports
- According to DIN 50156, EN ISO 16859, ASTM A956 standards
Applicable Material:
- Steel/cast steel
- Alloy tool steel
- Stainless steel
- Grey cast iron
- Nodular cast iron
- Cast aluminium
- Brass
- Bronze
- Copper
- Forged steel
Standard Delivery:
| Main unit |
1 pc |
| Hardness test block D |
1 pc |
| Support ring |
1 pc |
| Cleaning brush |
1 pc |
| Loading Rod |
1 pc |
| USB cable & Software |
1 pc |
