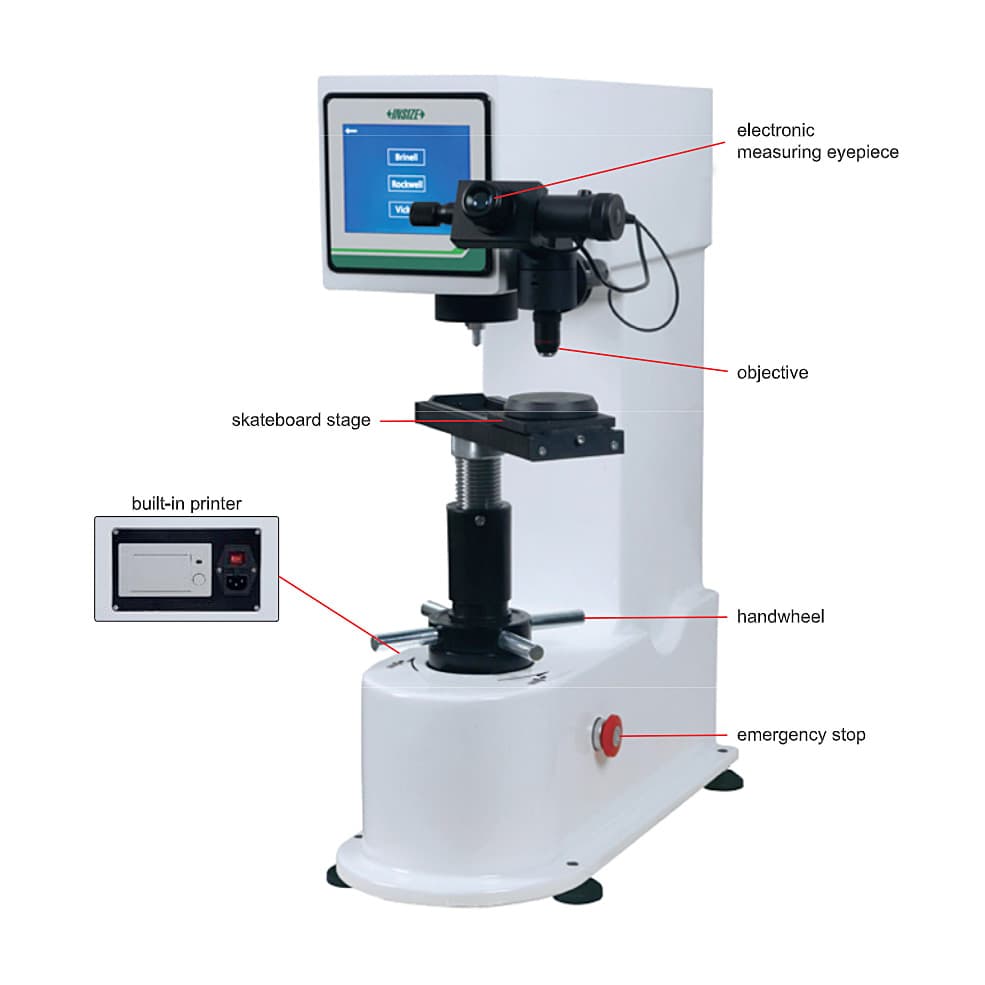

Insize Motorized Digital Rockwell/brinell/vickers Hardness Tester, HDT-BRV330

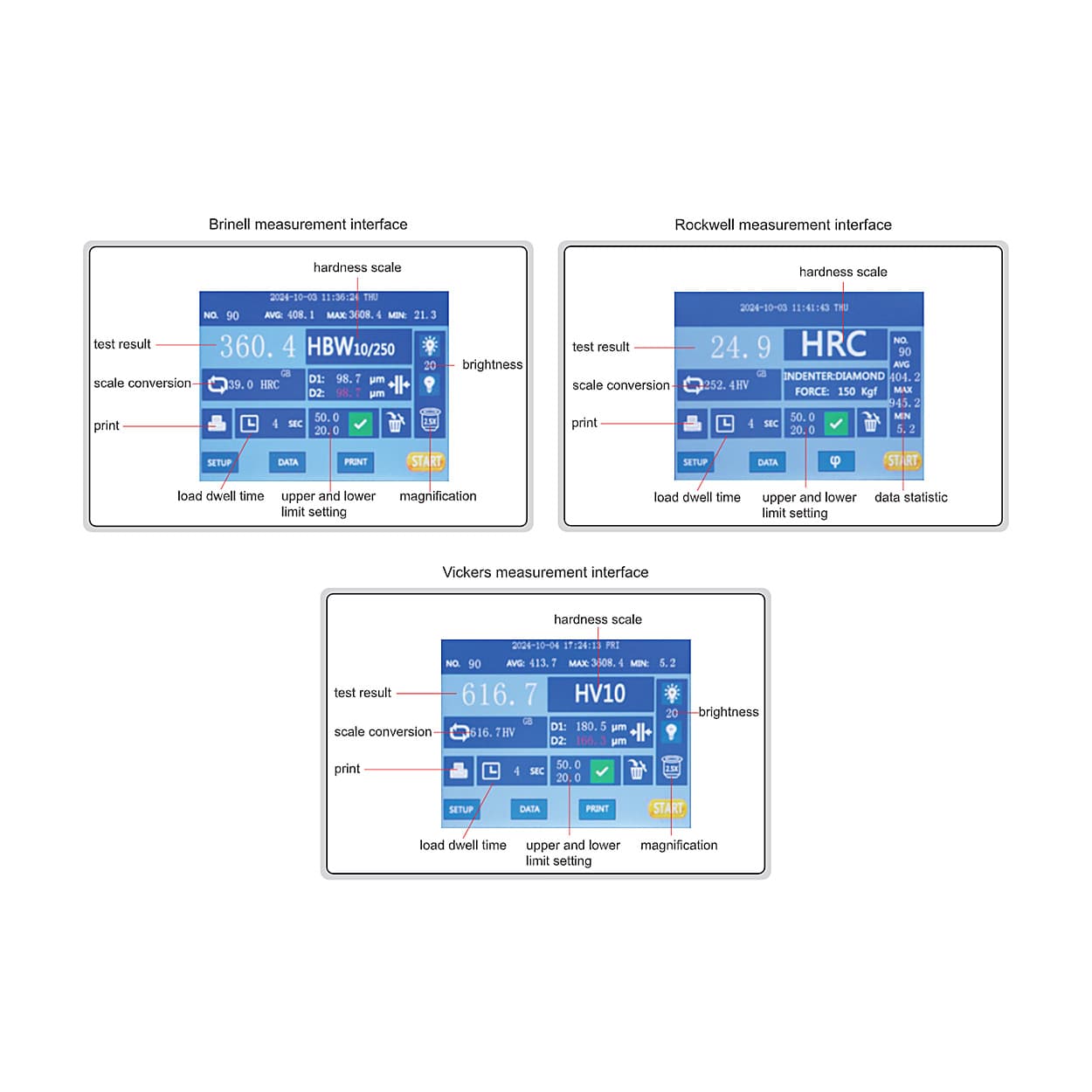

• 5.6" color touch LCD display
• Electronic closed-loop control of the applied test force, easy to use, stable display value
• Total of 21 measurement scales, including Brinell, Rockwell and Vickers test method
• Convertible to various hardness standards such as HB, HV, HRC, HK, etc
• Two types of internal and external illumination are available, and different illumination is used according to the size of the indentation to make the indentation clearer
• Average, maximum and minimum value statistic are available
• Data storage and query function, can be printed out by the printer
• According to ISO 6506, ISO 6507, ISO 6508, ASTM E-10, ASTM E-18, ASTM E-92
• Conversion Scale: HRA, HRB, HRC, HRD,HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HK

Technical Data:

Range
Brinell	5 - 650HBW
Rockwell	20-88HRA, 20-100HRB, 20-70HRC
Vickers	10 - 2900HV
Resolution
Brinell	0.1 HB
Rockwell	0.1 HR
Vickers	0.1 HV
Max. Workpiece Height
Brinell	165 mm (Brinell)
Rockwell	180 mm (Rockwell)
Vickers	165 mm (Vickers)
Test Force:
Brinell	306.5N (31.25kg), 612.9N (62.5kg), 1226N (125kg), 1839N (187.5kg), 980.8N (100kg), 2451.6N (250kg)
Rockwell	588N (60kg), 980N (100kg), 1471N (150kg)
Vickers	49.03N (5kg), 98.07N (10kg), 196.1 N (20kg), 294.2N (30kg), 490.3N (50kg), 980.7N (100kg)
Hardness Scale:
Brinell	HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/100, HBW10/250
Rockwell	HRA, HRB, HRC, HRD, HRF, HRG
Vickers	HV3, HV5, HVIO, HV20, HV30, HV50, HVIOO

Standard Delivery:

Main unit	1 pc
Diamond Rockwell indenter	1 pc
Diamond Vickers indenter	1 pc
Ø2.5mm ball indenter	1 pc
Ø5mm ball indenter	1 pc
Ø1.5875 carbide ball indenter	1 pc

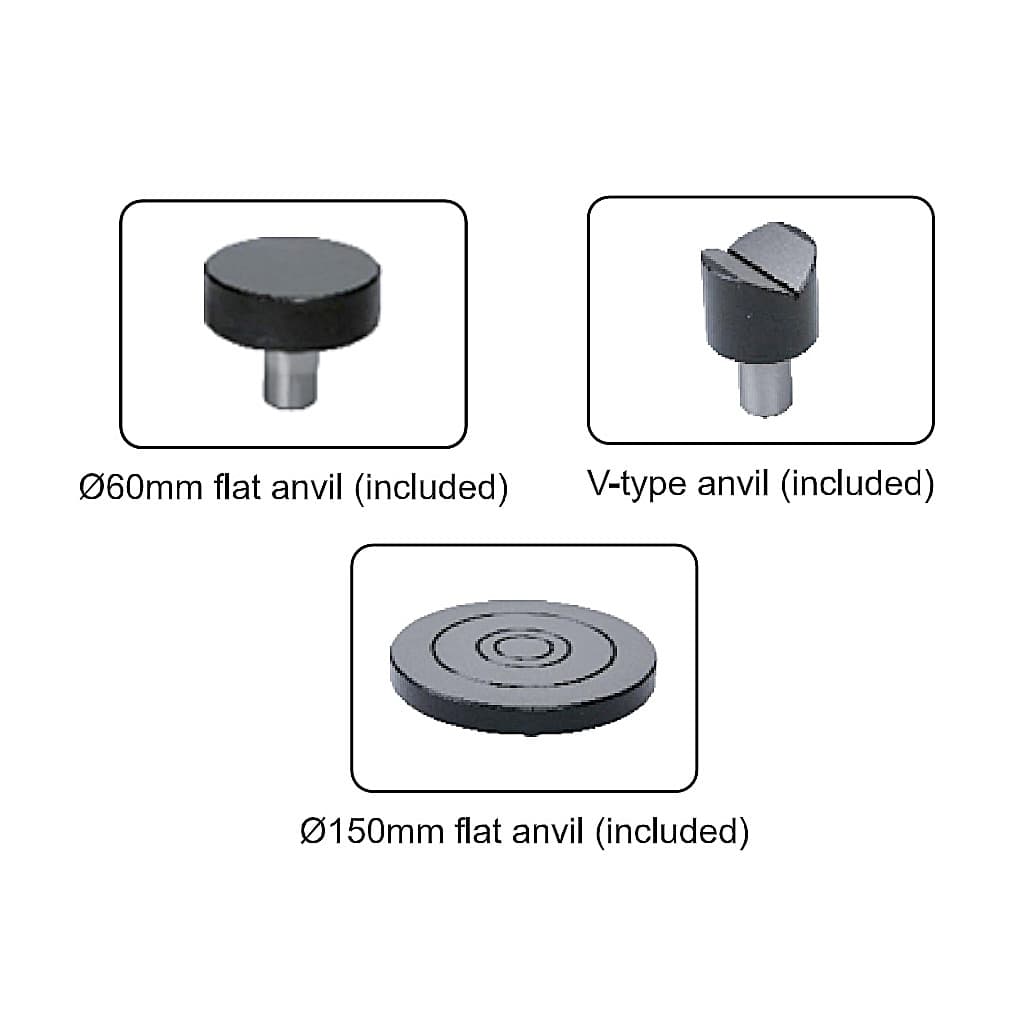

Ø150 mm flat anvil	1 pc
Ø60 mm flat anvil	1 pc
V-type anvil	1 pc
Skateboard stage	1 pc
Internal lighting bulb	1 pc
External lighting bulb	1 pc
Hardness test block HRC20-30	1 pc
Hardness test block HRC60-70	1 pc
Hardness test block HRB85—100	1 pc
Hardness test block HBW2.5/187.5	1 pc
Hardness test block HV30	1 pc
Anti-dust cover	1 pc
